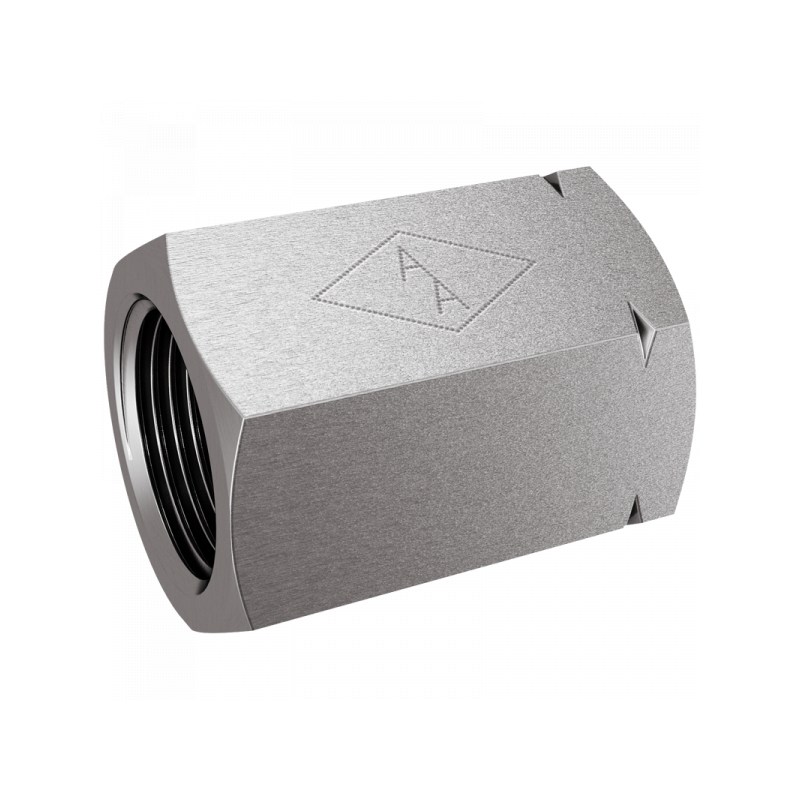

Fig. 82:

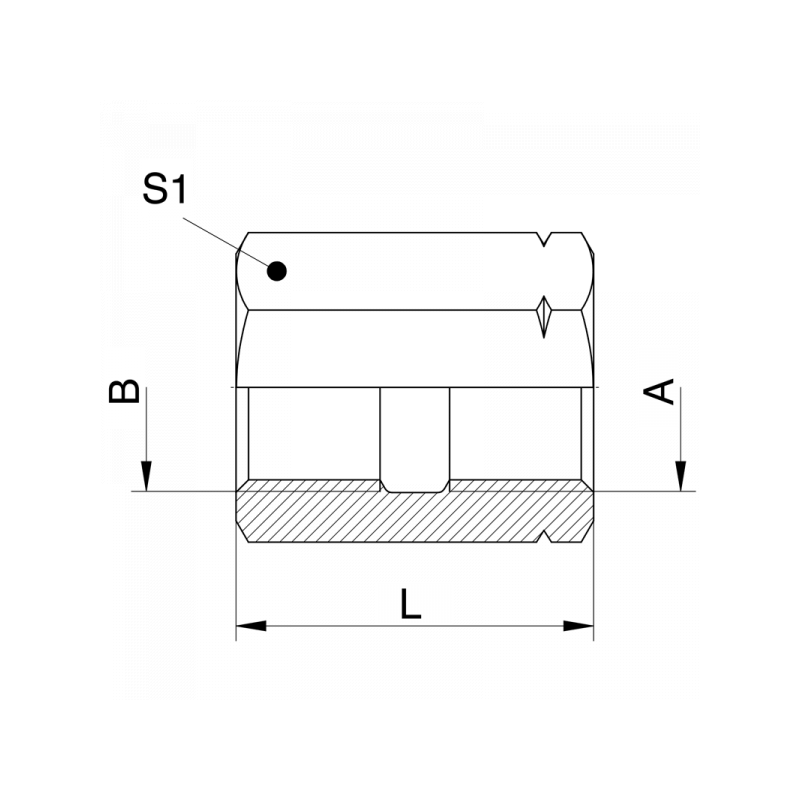

DIN A B PN / Bar L1 / mm S1 Material Art.Nr. PDF
DIN 16283 G1/4 G1/4 400 -10°C / +120°C 23 17 1.4571 10082013
DIN 16283 G1/2 G1/4 400 -10°C / +120°C 32 27 1.4571 10082043
DIN 16283 G1/2 G1/2 400 -10°C / +120°C 36 27 1.4571 10082063
DIN 16283 G1/4 G1/4 250 -10°C / +120°C 23 17 Messing 10082011
DIN 16283 G1/2 G1/4 250 -10°C / +120°C 32 27 Messing 10082041
DIN 16283 G1/2 G1/2 250 -10°C / +120°C 36 27 Messing 10082061
DIN 16283 G1/4 G1/4 400 -10°C / +120°C 23 17 Stahl 10082012
DIN 16283 G1/2 G1/2 400 -10°C / +120°C 36 27 Stahl 10082062
