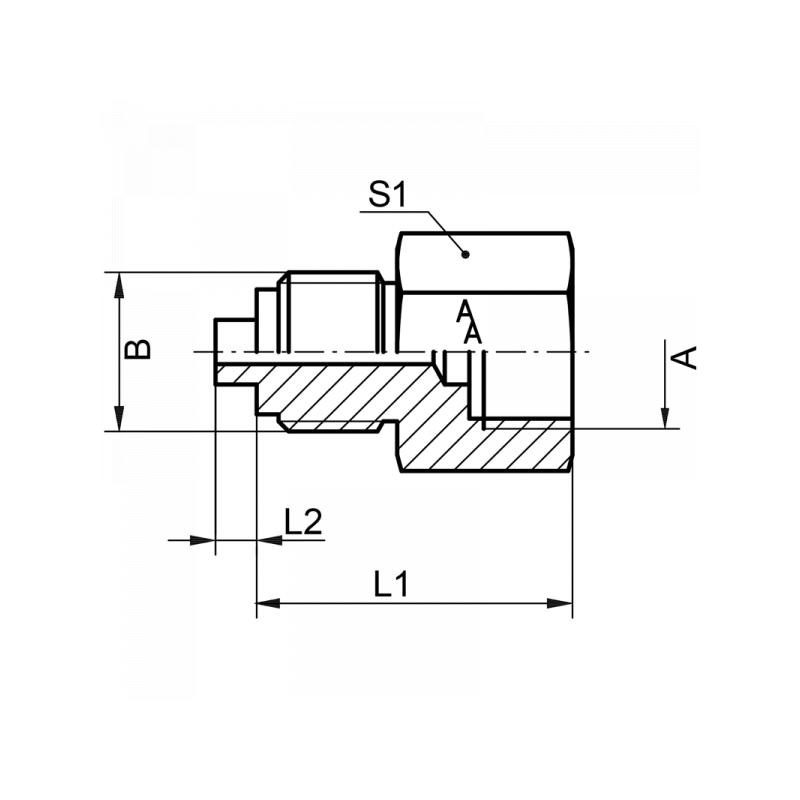

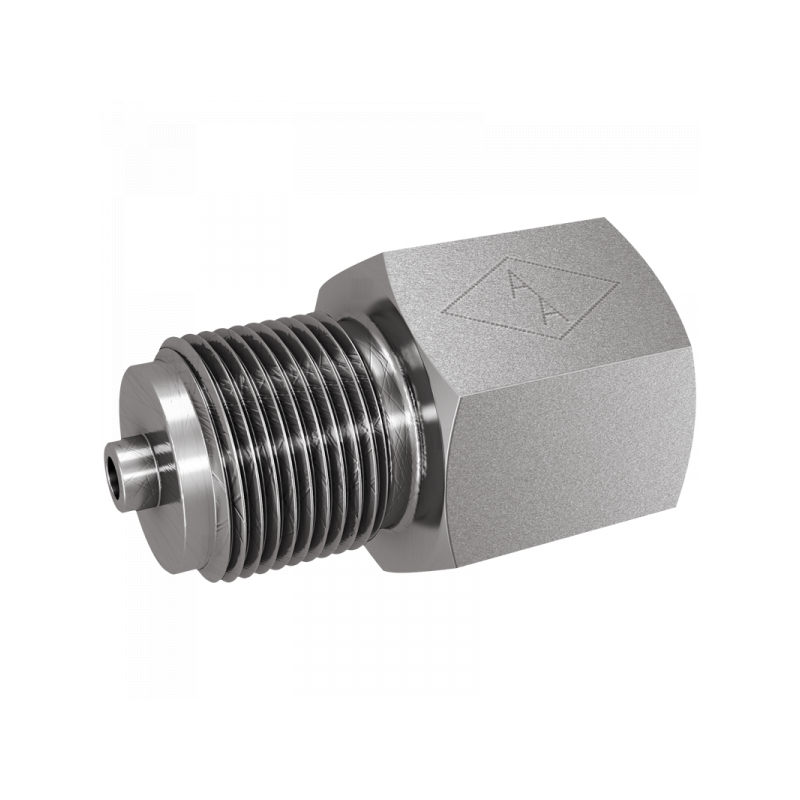

Fig. 87:

A B PN / Bar L1 / mm L2 / mm S1 Material Art.Nr. PDF
G1/8 G1/4 400 27 3 17 1.4571 10087013
G1/8 G1/2 400 32 3 24 1.4571 10087023
G1/4 G1/8 400 25 0 17 1.4571 10087033
G1/4 G1/4 400 28 3 17 1.4571 10087043
G1/4 G3/8 400 35 3 22 1.4571 10087053
G1/4 G1/2 400 37 3 24 1.4571 10087063
G1/4 M12x1,5 400 28 3 17 1.4571 10087083
G3/8 G1/4 400 37 3 22 1.4571 10087103
G3/8 G1/2 400 45 3 24 1.4571 10087113
G1/2 G1/4 400 39 3 27 1.4571 10087133
G1/2 G3/8 400 45 3 27 1.4571 10087143
G1/2 G1/2 400 45 3 27 1.4571 10087153
G1/2 G3/4 400 45 3 32 1.4571 10087163
G1/2 M20x1,5 400 45 3 27 1.4571 10087183
G3/4 G1/4 400 38 3 36 1.4571 10087193
G3/4 G1/2 400 45 3 36 1.4571 10087203
M20x1,5 G1/2 400 46 3 27 1.4571 10087253
G1/8 G1/4 250 27 3 17 Messing 10087011
G1/4 G1/8 250 28 0 17 Messing 10087031
G1/4 G1/4 250 28 3 17 Messing 10087041
G1/4 G3/8 250 35 3 22 Messing 10087051
G1/4 G1/2 250 37 3 24 Messing 10087061
G1/4 M12x1,5 250 28 3 17 Messing 10087081
G3/8 G1/4 250 37 3 22 Messing 10087101
G3/8 G1/2 250 45 3 24 Messing 10087111
G1/2 G1/4 250 39 3 27 Messing 10087131
G1/2 G3/8 250 45 3 27 Messing 10087141
G1/2 G1/2 250 45 3 27 Messing 10087151
G1/2 G3/4 250 45 3 32 Messing 10087161
G1/2 M20x1,5 250 45 3 27 Messing 10087181
G3/4 G1/2 250 45 3 36 Messing 10087201
M20x1,5 G1/2 250 46 3 27 Messing 10087251
G1/8 G1/4 400 27 3 17 Stahl 10087012
G1/4 G1/2 400 37 3 24 Stahl 10087062
G1/2 G1/2 400 45 3 27 Stahl 10087152
