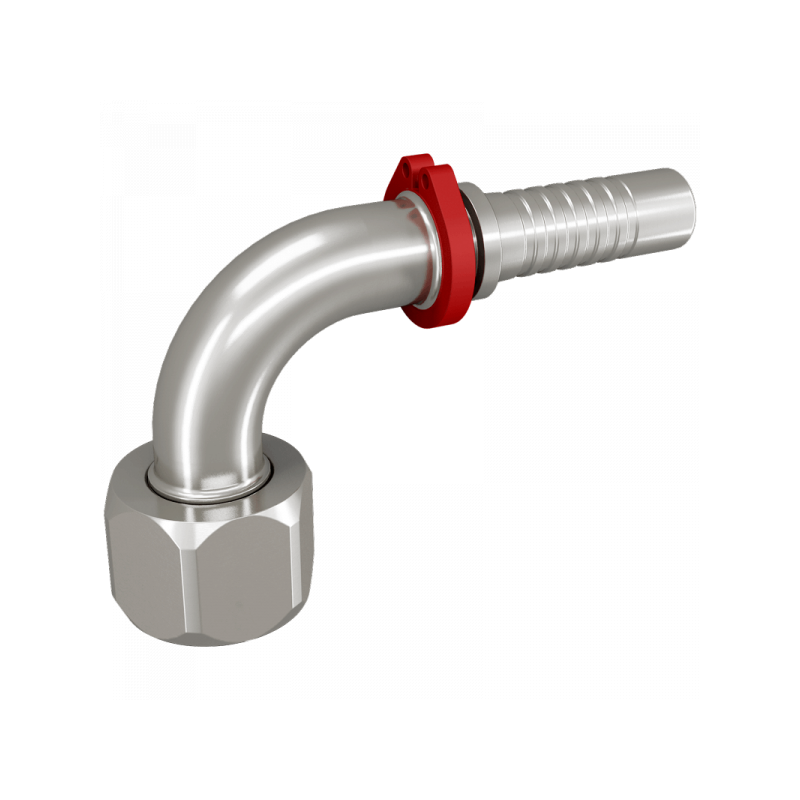

DKR-F-90°: Pressnippel DKR-F 90°, flachdichtend, Dichtkopf BSPP Gewinde
| A | B / mm | DN | L1 / mm | L2 / mm | L3 / mm | S1 | C / mm | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|---|---|
| G1/4 | 6,7 | 6 | 55 | 25 | 27,5 | 19 | 3,9 | 1.4571 | 4272DN06 | |
| G3/8 | 8 | 8 | 60 | 30 | 30,0 | 19 | 5,4 | 1.4571 | 4272DN08 | |
| G3/8 | 9,6 | 10 | 70 | 36,7 | 30,0 | 19 | 6,5 | 1.4571 | 4272DN10 | |
| G1/2 | 9,6 | 10 | 73 | 39,7 | 30,0 | 27 | 6,5 | 1.4571 | 4272DN10G04 | |
| G1/2 | 12,8 | 12 | 78 | 42,7 | 35 | 27 | 9,5 | 1.4571 | 4272DN12 | |
| G3/4 | 12,8 | 12 | 73 | 37,7 | 42,0 | 32 | 9,5 | 1.4571 | 4272DN12G06 | |
| G3/4 | 16 | 16 | 81 | 46,5 | 51,0 | 32 | 12,6 | 1.4571 | 4272DN16 | |
| G3/4 | 19,1 | 20 | 104 | 58,2 | 51 | 32 | 14,8 | 1.4571 | 4272DN20 | |
| G1 | 25,9 | 25 | 123 | 68 | 76,7 | 41 | 20,0 | 1.4571 | 4272DN25 | |
| G1 1/4 | 32,5 | 32 | 150 | 90,2 | 88 | 50 | 26,0 | 1.4571 | 4272DN32 |
Verwandte Artikel
DKOL

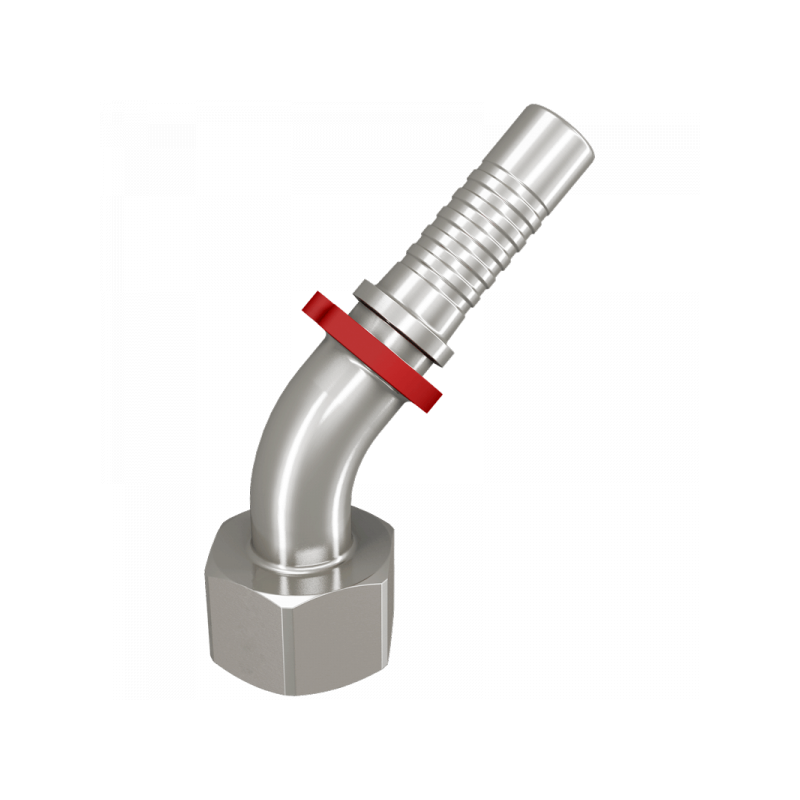

DKOL - 45°
