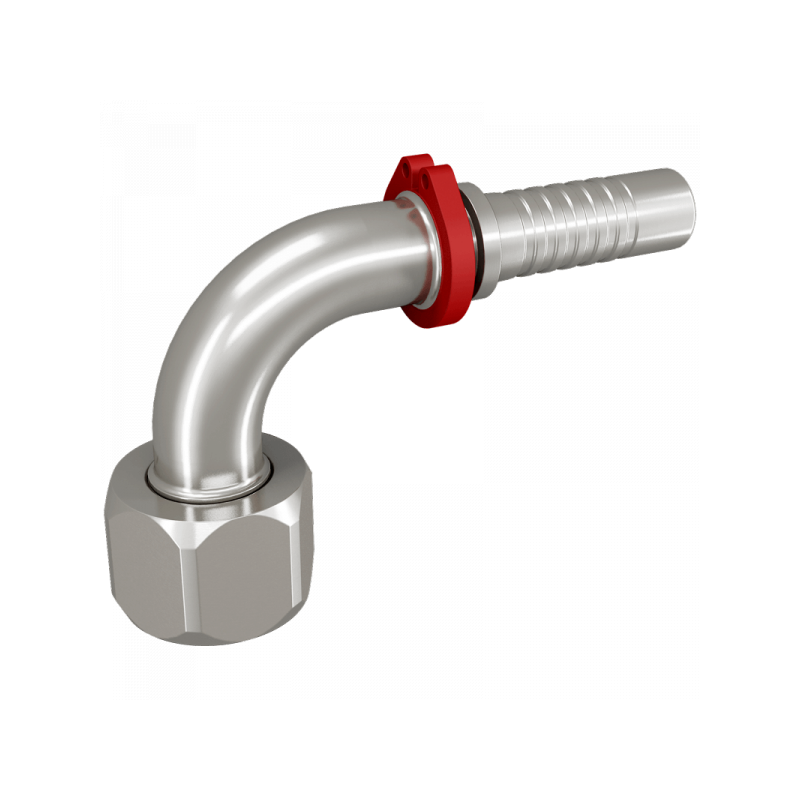

DKR-90°: Pressnippel DKR 90°, Dichtkegel mit 60° Konus, Dichtkopf BSPP Gewinde
| A | B / mm | DN | L1 / mm | L2 / mm | L3 / mm | S1 | C / mm | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|---|---|
| G1/4 | 6,7 | 6 | 58 | 28 | 27 | 19 | 3,9 | 1.4571 | 4282DN06 | |
| G3/8 | 8 | 8 | 60 | 30 | 32 | 19 | 5,4 | 1.4571 | 4282DN08 | |
| G3/8 | 9,6 | 10 | 72 | 38,7 | 32 | 19 | 6,5 | 1.4571 | 4282DN10 | |
| G1/2 | 9,6 | 10 | 72 | 38,7 | 35,0 | 27 | 6,5 | 1.4571 | 4282DN10G04 | |
| G1/2 | 12,8 | 12 | 77 | 41,7 | 41 | 27 | 9,5 | 1.4571 | 4282DN12 | |
| G3/4 | 16 | 16 | 85 | 46,7 | 51 | 32 | 12,6 | 1.4571 | 4282DN16 | |
| G3/4 | 19,1 | 20 | 103 | 57,2 | 57 | 36 | 14,8 | 1.4571 | 4282DN20 | |
| G1 | 25,9 | 25 | 129 | 74 | 75 | 41 | 20,0 | 1.4571 | 4282DN25 | |
| G1 1/4 | 32,5 | 32 | 148 | 88,2 | 92 | 50 | 26,0 | 1.4571 | 4282DN32 | |
| G1 1/2 | 38,9 | 40 | 185 | 117,5 | 105,0 | 55 | 31,0 | 1.4571 | 4282DN40 | |
| G2 | 51,6 | 50 | 192 | 117 | 134,0 | 70 | 40,0 | 1.4571 | 4282DN50 |
