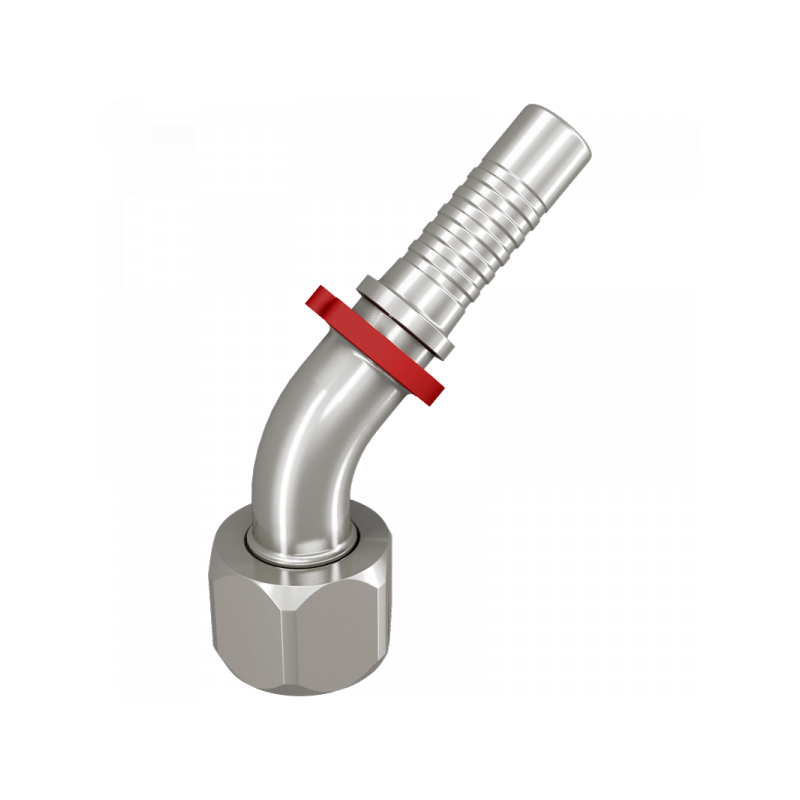

DKR-45°: Pressnippel DKR 45°, Dichtkegel mit 60° Konus, Dichtkopf BSPP Gewinde
| A | B / mm | DN | L1 / mm | L2 / mm | L3 / mm | S1 | C / mm | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|---|---|
| G1/4 | 6,7 | 6 | 65 | 35 | 16 | 19 | 3,9 | 1.4571 | 4281DN06 | |
| G3/8 | 8 | 8 | 68 | 38 | 16,0 | 19 | 5,4 | 1.4571 | 4281DN08 | |
| G3/8 | 9,6 | 10 | 73 | 39,7 | 16,0 | 19 | 6,5 | 1.4571 | 4281DN10 | |
| G1/2 | 12,8 | 12 | 80 | 44,7 | 23 | 27 | 9,5 | 1.4571 | 4281DN12 | |
| G3/4 | 16 | 16 | 93 | 54,7 | 26 | 32 | 12,6 | 1.4571 | 4281DN16 | |
| G3/4 | 19,1 | 20 | 132 | 86,2 | 36 | 32 | 14,8 | 1.4571 | 4281DN20 | |
| G1 | 25,9 | 25 | 150 | 95 | 46 | 41 | 20,0 | 1.4571 | 4281DN25 | |
| G1 1/4 | 32,5 | 32 | 163 | 103,2 | 42,0 | 50 | 26,0 | 1.4571 | 4281DN32 | |
| G1 1/2 | 38,9 | 40 | 200 | 132,5 | 47 | 55 | 31,0 | 1.4571 | 4281DN40 | |
| G2 | 51,6 | 50 | 225 | 150 | 60,0 | 70 | 40,0 | 1.4571 | 4281DN50 |
