XGE-LR: Verschraubungsstutzen
| A | B | PN / Bar | Material | Art.Nr. | |
|---|---|---|---|---|---|
| G1/8 | 06 | 315 | 1.4571 | XGE06L01 | |
| G1/4 | 06 | 315 | 1.4571 | XGE06L02 | |
| G3/8 | 06 | 315 | 1.4571 | XGE06L03 | |
| G1/2 | 06 | 315 | 1.4571 | XGE06L04 | |
| G1/8 | 08 | 315 | 1.4571 | XGE08L01 | |
| G1/4 | 08 | 315 | 1.4571 | XGE08L02 | |
| G3/8 | 08 | 315 | 1.4571 | XGE08L03 | |
| G1/2 | 08 | 315 | 1.4571 | XGE08L04 | |
| G1/8 | 10 | 315 | 1.4571 | XGE10L01 | |
| G1/8 | 10 | 315 | 1.4571 | XGE10L01 | |
| G1/4 | 10 | 315 | 1.4571 | XGE10L02 | |
| G1/4 | 10 | 315 | 1.4571 | XGE10L02 | |
| G3/8 | 10 | 315 | 1.4571 | XGE10L03 | |
| G3/8 | 10 | 315 | 1.4571 | XGE10L03 | |
| G1/2 | 10 | 315 | 1.4571 | XGE10L04 | |
| G1/2 | 10 | 315 | 1.4571 | XGE10L04 | |
| G1/8 | 12 | 315 | 1.4571 | XGE12L01 | |
| G1/8 | 12 | 315 | 1.4571 | XGE12L01 | |
| G1/4 | 12 | 315 | 1.4571 | XGE12L02 | |
| G1/4 | 12 | 315 | 1.4571 | XGE12L02 | |
| G3/8 | 12 | 315 | 1.4571 | XGE12L03 | |
| G3/8 | 12 | 315 | 1.4571 | XGE12L03 | |
| G1/2 | 12 | 315 | 1.4571 | XGE12L04 | |
| G1/2 | 12 | 315 | 1.4571 | XGE12L04 | |
| G3/4 | 12 | 315 | 1.4571 | XGE12L06 | |
| G3/4 | 12 | 315 | 1.4571 | XGE12L06 | |
| G1/4 | 15 | 315 | 1.4571 | XGE15L02 | |
| G1/4 | 15 | 315 | 1.4571 | XGE15L02 | |
| G3/8 | 15 | 315 | 1.4571 | XGE15L03 | |
| G3/8 | 15 | 315 | 1.4571 | XGE15L03 | |
| G1/2 | 15 | 315 | 1.4571 | XGE15L04 | |
| G1/2 | 15 | 315 | 1.4571 | XGE15L04 | |
| G3/4 | 15 | 315 | 1.4571 | XGE15L06 | |
| G3/4 | 15 | 315 | 1.4571 | XGE15L06 | |
| G1 | 15 | 315 | 1.4571 | XGE15L08 | |
| G1 | 15 | 315 | 1.4571 | XGE15L08 | |
| G3/8 | 18 | 315 | 1.4571 | XGE18L03 | |
| G3/8 | 18 | 315 | 1.4571 | XGE18L03 | |
| G1/2 | 18 | 315 | 1.4571 | XGE18L04 | |
| G1/2 | 18 | 315 | 1.4571 | XGE18L04 | |
| G3/4 | 18 | 315 | 1.4571 | XGE18L06 | |
| G3/4 | 18 | 315 | 1.4571 | XGE18L06 | |
| G1 | 18 | 315 | 1.4571 | XGE18L08 | |
| G1 | 18 | 315 | 1.4571 | XGE18L08 | |
| G3/8 | 22 | 160 | 1.4571 | XGE22L03 | |
| G3/8 | 22 | 160 | 1.4571 | XGE22L03 | |
| G3/8 | 22 | 160 | 1.4571 | XGE22L033 | |
| G3/8 | 22 | 160 | 1.4571 | XGE22L033 | |
| G1/2 | 22 | 160 | 1.4571 | XGE22L04 | |
| G1/2 | 22 | 160 | 1.4571 | XGE22L04 | |
| G3/4 | 22 | 160 | 1.4571 | XGE22L06 | |
| G3/4 | 22 | 160 | 1.4571 | XGE22L06 | |
| G1 | 22 | 160 | 1.4571 | XGE22L08 | |
| G1 | 22 | 160 | 1.4571 | XGE22L08 | |
| G1/2 | 28 | 160 | 1.4571 | XGE28L04 | |
| G1/2 | 28 | 160 | 1.4571 | XGE28L04 | |
| G3/4 | 28 | 160 | 1.4571 | XGE28L06 | |
| G3/4 | 28 | 160 | 1.4571 | XGE28L06 | |
| G1 | 28 | 160 | 1.4571 | XGE28L08 | |
| G1 | 28 | 160 | 1.4571 | XGE28L08 | |
| G1 1/4 | 28 | 160 | 1.4571 | XGE28L10 | |
| G1 1/4 | 28 | 160 | 1.4571 | XGE28L10 | |
| G1 | 35 | 160 | 1.4571 | XGE35L08 | |
| G1 | 35 | 160 | 1.4571 | XGE35L08 | |
| G1 1/4 | 35 | 160 | 1.4571 | XGE35L10 | |
| G1 1/4 | 35 | 160 | 1.4571 | XGE35L10 | |
| G1 1/2 | 35 | 160 | 1.4571 | XGE35L12 | |
| G1 1/2 | 35 | 160 | 1.4571 | XGE35L12 | |
| G1 1/4 | 42 | 160 | 1.4571 | XGE42L10 | |
| G1 1/4 | 42 | 160 | 1.4571 | XGE42L10 | |
| G1 1/2 | 42 | 160 | 1.4571 | XGE42L12 | |
| G1 1/2 | 42 | 160 | 1.4571 | XGE42L12 |
Verwandte Artikel

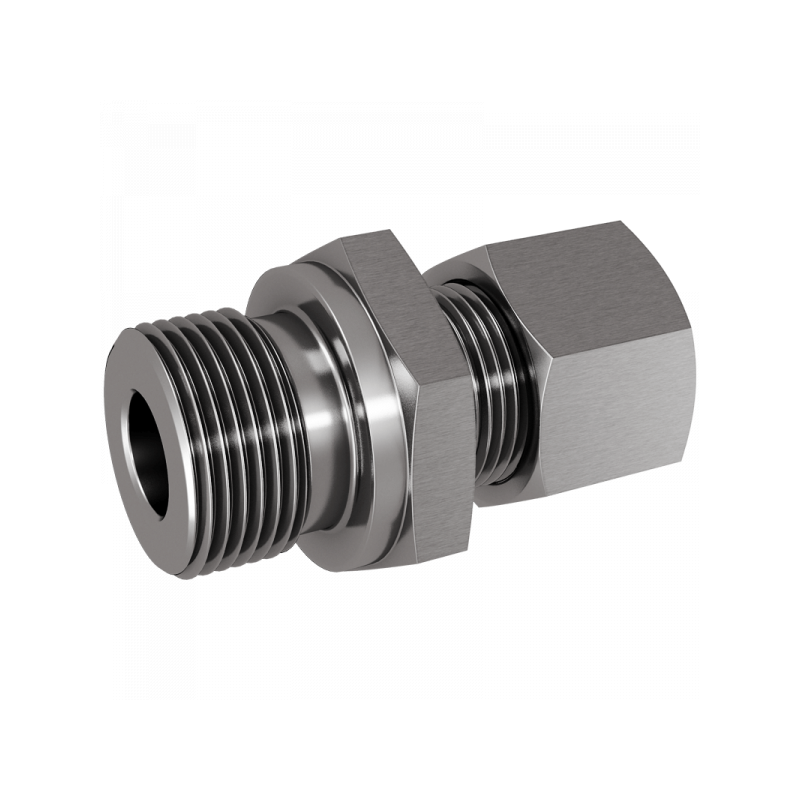

GE-LR

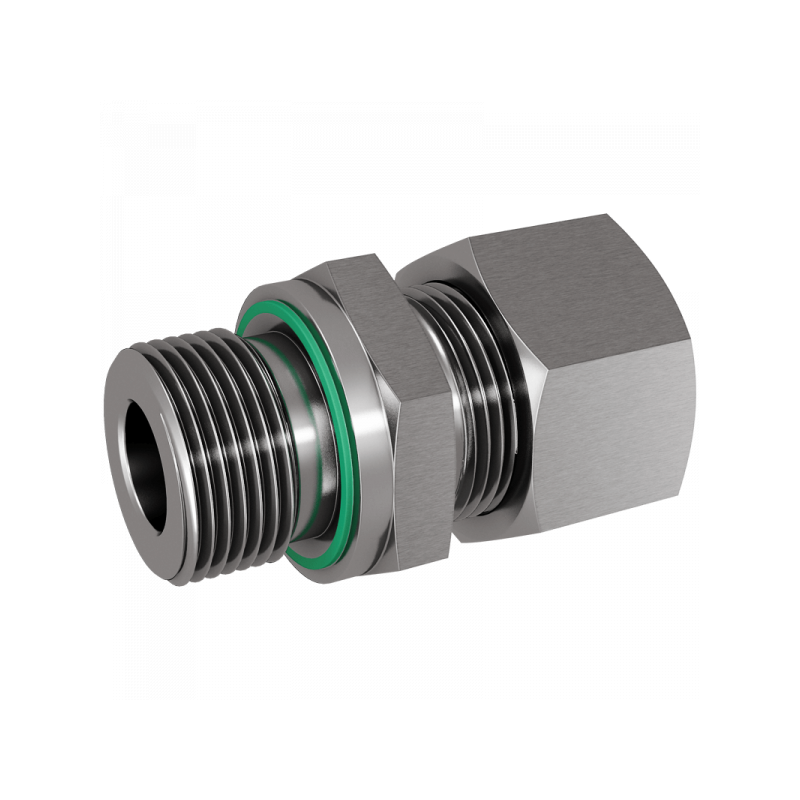

GE-LR-ED

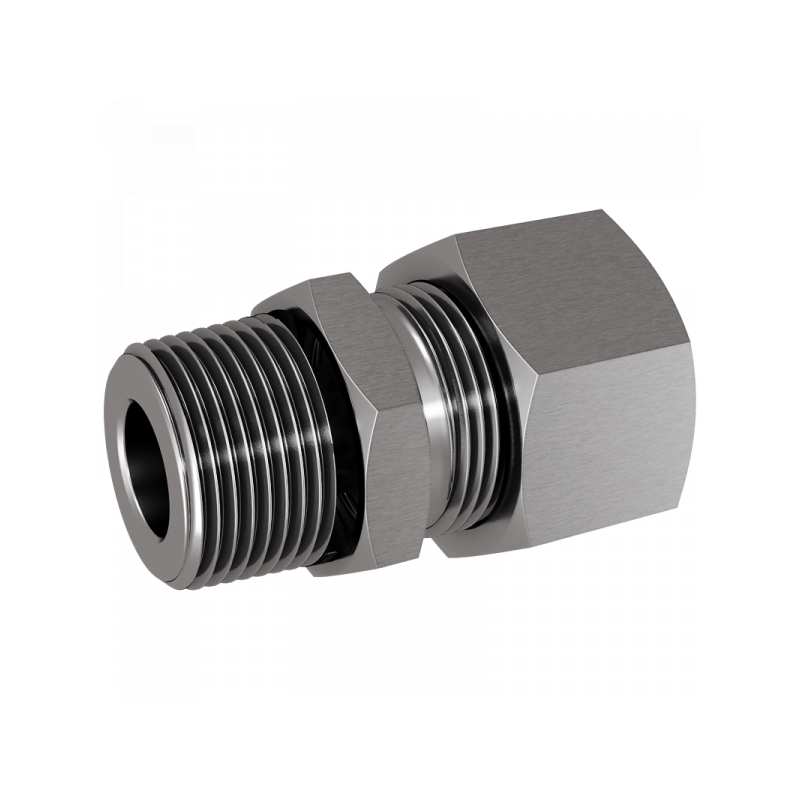

GE-LR-KEG
