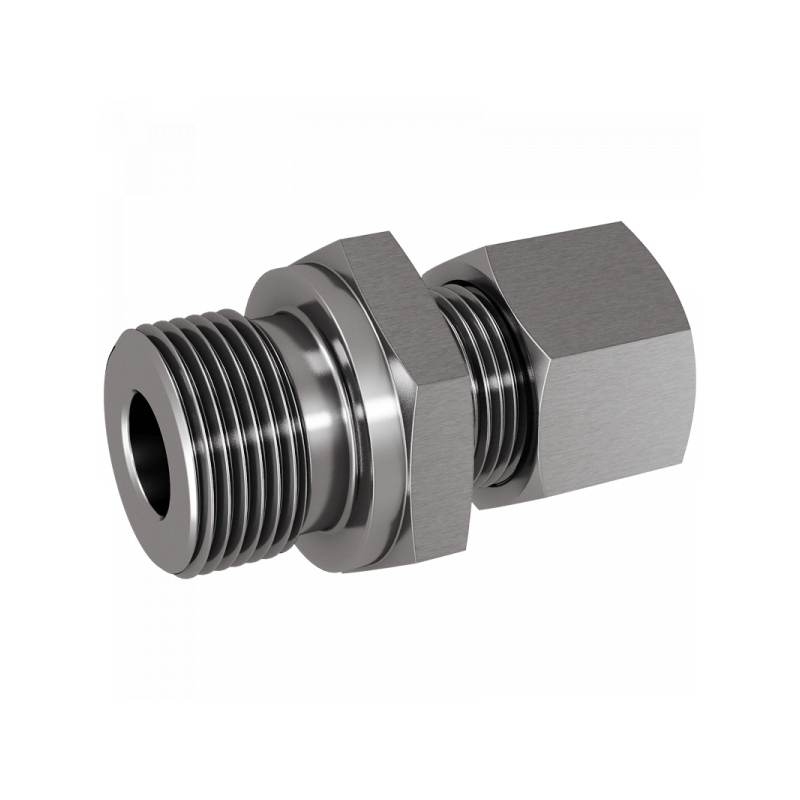

GE-SM: Gerade Einschraubverschraubung, Einschraubgewinde metrisch mit Dichtkante Form B, schwere Reihe
A | B | PN / Bar | L1 / mm | L2 / mm | L3 / mm | L4 / mm | S1 | S2 | Material | Art.Nr. | Stutzen | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
M12x1,5 | 06 | 630 | 13 | 12 | 32 | 42 | 17 | 17 | 1.4571 | GE06SM12 | XGE06SM12 | |
M14x1,5 | 06 | 630 | 15 | 12 | 34 | 44 | 19 | 17 | 1.4571 | GE06SM14 | XGE06SM14 | |
M16x1,5 | 06 | 630 | 15 | 12 | 34 | 44 | 22 | 17 | 1.4571 | GE06SM16 | XGE06SM16 | |
M14x1,5 | 08 | 630 | 15 | 12 | 34 | 44 | 19 | 19 | 1.4571 | GE08SM14 | XGE08SM14 | |
M16x1,5 | 10 | 630 | 15 | 12 | 34,5 | 46,5 | 22 | 22 | 1.4571 | GE10SM16 | XGE10SM16 | |
M18x1,5 | 10 | 630 | 15,5 | 12 | 35 | 47 | 24 | 22 | 1.4571 | GE10SM18 | XGE10SM18 | |
M10x1 | 12 | 630 | 16,5 | 8 | 32 | 44 | 22 | 24 | 1.4571 | GE12SM10 | XGE12SM10 | |
M14x1,5 | 12 | 630 | 16,5 | 12 | 36 | 48 | 22 | 24 | 1.4571 | GE12SM14 | XGE12SM14 | |
M16x1,5 | 12 | 630 | 16,5 | 12 | 36 | 48 | 22 | 24 | 1.4571 | GE12SM16 | XGE12SM16 | |
M18x1,5 | 12 | 630 | 17 | 12 | 36,5 | 48,5 | 24 | 24 | 1.4571 | GE12SM18 | XGE12SM18 | |
M20x1,5 | 12 | 630 | 17,5 | 14 | 39 | 51 | 27 | 24 | 1.4571 | GE12SM20 | XGE12SM20 | |
M22x1,5 | 12 | 630 | 17,5 | 14 | 39 | 51 | 27 | 24 | 1.4571 | GE12SM22 | XGE12SM22 | |
M18x1,5 | 14 | 630 | 19 | 12 | 39 | 51 | 24 | 27 | 1.4571 | GE14SM18 | XGE14SM18 | |
M22x1,5 | 14 | 630 | 19 | 14 | 41 | 53 | 27 | 27 | 1.4571 | GE14SM22 | XGE14SM22 | |
M22x1,5 | 16 | 400 | 18,5 | 14 | 41 | 54 | 27 | 30 | 1.4571 | GE16SM22 | XGE16SM22 | |
M27x2 | 16 | 400 | 20,5 | 16 | 45 | 58 | 32 | 30 | 1.4571 | GE16SM27 | XGE16SM27 | |
M22x1,5 | 20 | 400 | 20,5 | 14 | 45 | 60 | 32 | 36 | 1.4571 | GE20SM22 | XGE20SM22 | |
M27x2 | 20 | 400 | 20,5 | 16 | 47 | 62 | 32 | 36 | 1.4571 | GE20SM27 | XGE20SM27 | |
M27x2 | 25 | 400 | 23 | 16 | 51 | 67 | 41 | 46 | 1.4571 | GE25SM27 | XGE25SM27 | |
M33x2 | 25 | 400 | 23 | 18 | 53 | 69 | 41 | 46 | 1.4571 | GE25SM33 | XGE25SM33 | |
M42x2 | 30 | 400 | 23,5 | 20 | 57 | 73 | 50 | 50 | 1.4571 | GE30SM42 | XGE30SM42 | |
M48x2 | 38 | 250 | 26 | 22 | 57 | 76 | 55 | 60 | 1.4571 | GE38SM48 | XGE38SM48 |
