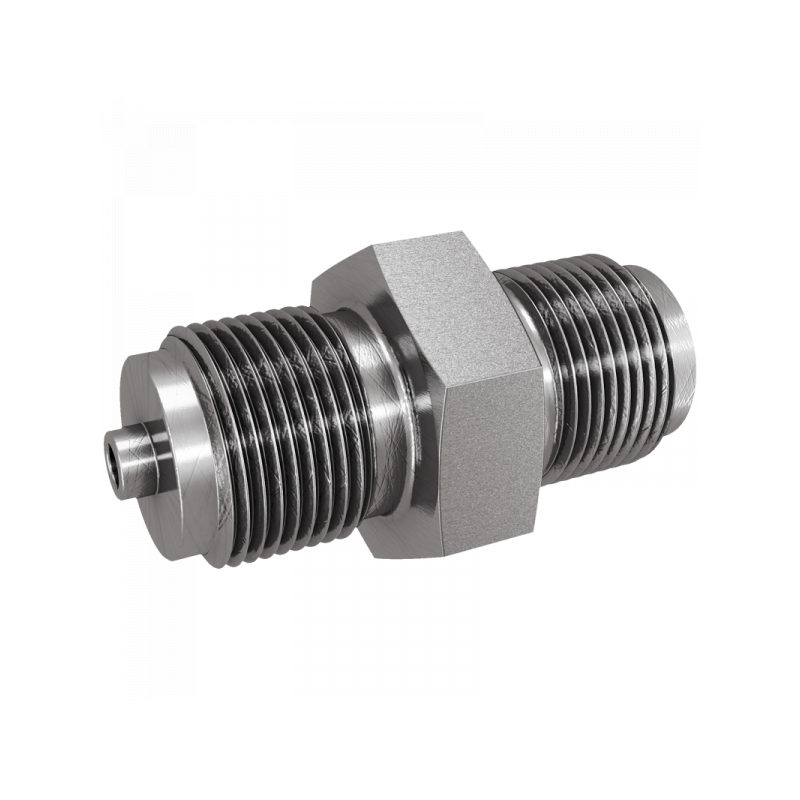

Fig. 86/DoNi:

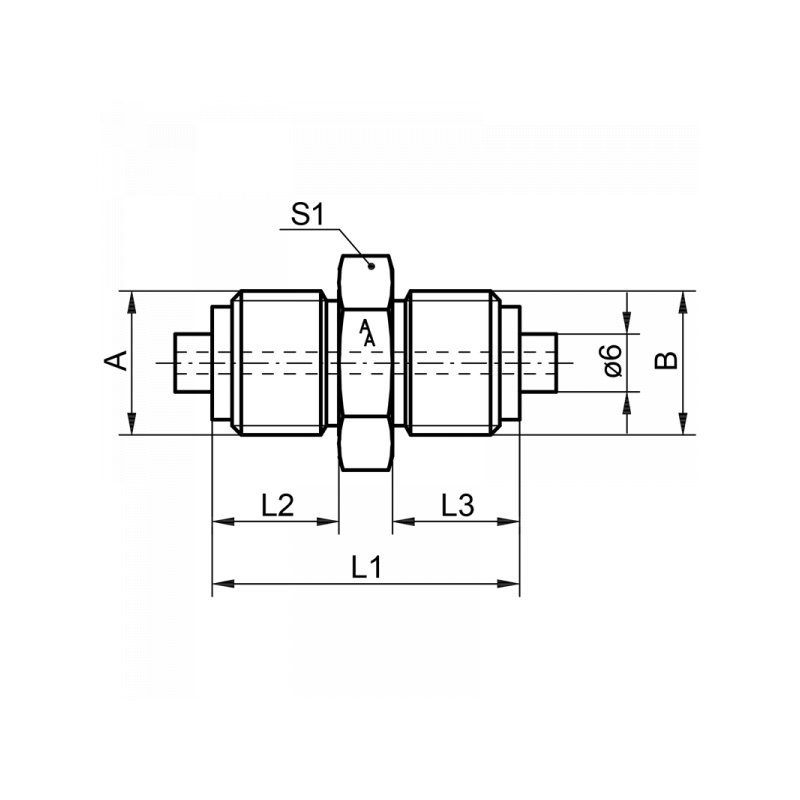

A B PN / Bar L1 / mm L2 / mm L3 / mm S1 Material Art.Nr. PDF
G1/4 G1/4 400 34 13 13 14 1.4571 10086103
G1/4 G1/2 400 43 13 20 27 1.4571 10086123
G1/2 G1/2 400 50 20 20 27 1.4571 10086133
G1/4 G1/4 250 34 13 13 14 Messing 10086101
G1/4 G1/2 250 43 13 20 27 Messing 10086121
G1/2 G1/2 250 50 20 20 27 Messing 10086131
G1/4 G1/4 400 34 13 13 14 Stahl 10086102
G1/2 G1/2 400 50 20 20 27 Stahl 10086132
