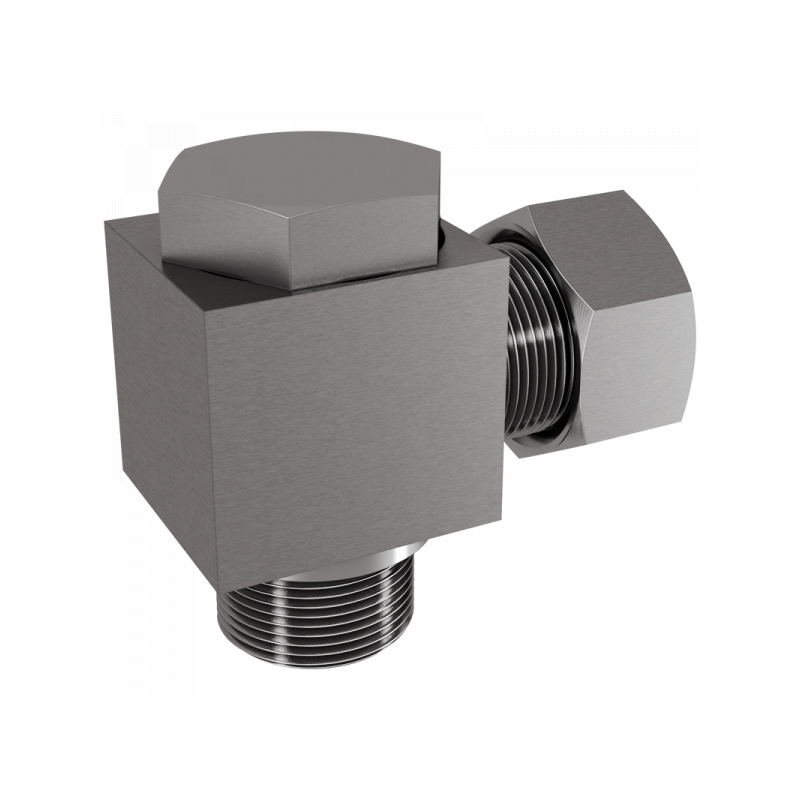

Schneidringverschraubungen

Schwenkverschraubungen

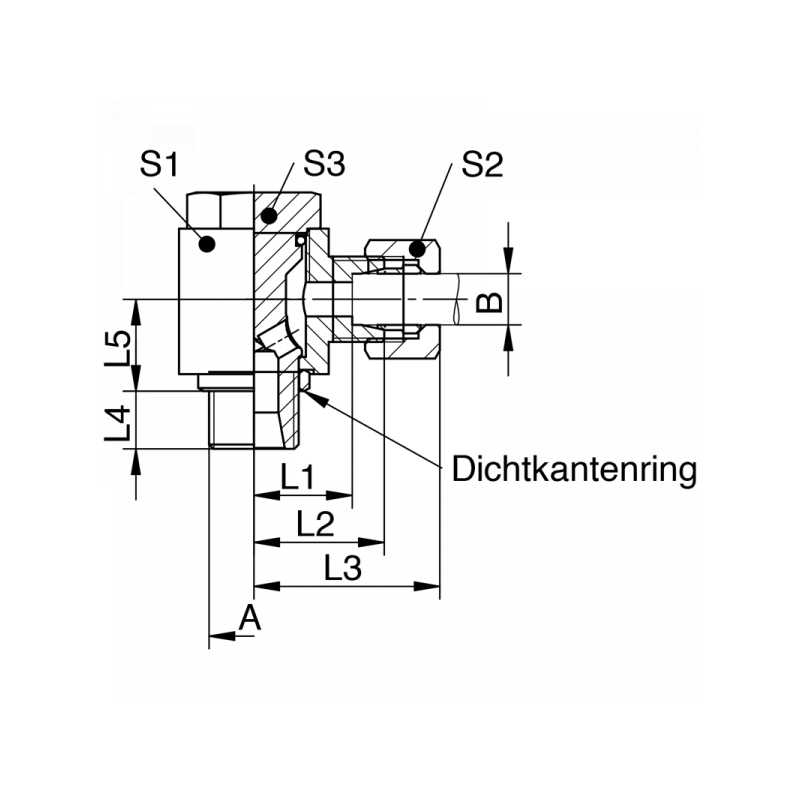

A	B	PN / Bar	L1 / mm	L2 / mm	L3 / mm	L4 / mm	L5 / mm	S1	S2	S3	Material	Art.Nr.	Stutzen
G1/8	06	315	13	20	30	8	10	16	14	14	1.4571	SWVE06L01	XSWVE06L01
G1/4	08	315	14	21	31	10	14	20	17	19	1.4571	SWVE08L02	XSWVE08L02
G1/4	10	315	15	22	33	10	14	20	19	19	1.4571	SWVE10L02	XSWVE10L02
G3/8	12	315	18	25	36	10	16	25	22	22	1.4571	SWVE12L03	XSWVE12L03
G1/2	15	315	21	28	39	12	20	30	27	27	1.4571	SWVE15L04	XSWVE15L04
G1/2	18	315	21	28,5	40,5	12	22	30	32	27	1.4571	SWVE18L04	XSWVE18L04
G3/4	22	160	27	34,5	46,5	12	24	35	36	32	1.4571	SWVE22L06	XSWVE22L06
G1	28	160	31	38,5	52,5	12	30	45	41	41	1.4571	SWVE28L08	XSWVE28L08
G1 1/4	35	160	35	45,5	61,5	14	36	55	50	50	1.4571	SWVE35L10	XSWVE35L10
G1 1/2	42	160	40	51	67	14	41	65	60	60	1.4571	SWVE42L12	XSWVE42L12
G1/4	06	630	16	23	33	10	14	20	17	19	1.4571	SWVE06S02	XSWVE06S02
G1/4	08	630	16	23	33	10	14	20	19	19	1.4571	SWVE08S02	XSWVE08S02
G3/8	10	630	18	25,5	37,5	10	16	25	22	22	1.4571	SWVE10S03	XSWVE10S03
G3/8	12	630	18	25,5	37,5	10	16	25	24	22	1.4571	SWVE12S03	XSWVE12S03
G1/2	14	630	22	30	42	12	20	30	27	27	1.4571	SWVE14S04	XSWVE14S04
G1/2	16	400	21	29,5	42,5	12	22	30	30	27	1.4571	SWVE16S04	XSWVE16S04
G3/4	20	400	26	36,5	51,5	12	24	35	36	32	1.4571	SWVE20S06	XSWVE20S06
G1	25	400	31	43	59	12	30	45	46	41	1.4571	SWVE25S08	XSWVE25S08
G1 1/4	30	400	36	49,5	65,5	14	36	55	50	50	1.4571	SWVE30S10	XSWVE30S10
G1 1/2	38	250	41	57	76	14	41	65	60	60	1.4571	SWVE38S12	XSWVE38S12
