XDSVW-LR/SR: Verschraubungsstutzen
| A | B | PN / Bar | Material | Art.Nr. | |
|---|---|---|---|---|---|
| G1/8 | 06 | 315 | 1.4571 | XDSVW06L01 | |
| G1/4 | 08 | 315 | 1.4571 | XDSVW08L02 | |
| G1/4 | 10 | 315 | 1.4571 | XDSVW10L02 | |
| G3/8 | 12 | 315 | 1.4571 | XDSVW12L03 | |
| G1/2 | 15 | 315 | 1.4571 | XDSVW15L04 | |
| G1/2 | 18 | 315 | 1.4571 | XDSVW18L04 | |
| G3/4 | 22 | 160 | 1.4571 | XDSVW22L06 | |
| G1 | 28 | 160 | 1.4571 | XDSVW28L08 | |
| G1 1/4 | 35 | 160 | 1.4571 | XDSVW35L10 | |
| G1 1/2 | 42 | 160 | 1.4571 | XDSVW42L12 | |
| G1/4 | 06 | 630 | 1.4571 | XDSVW06S02 | |
| G1/4 | 08 | 630 | 1.4571 | XDSVW08S02 | |
| G3/8 | 10 | 630 | 1.4571 | XDSVW10S03 | |
| G3/8 | 12 | 630 | 1.4571 | XDSVW12S03 | |
| G1/2 | 14 | 630 | 1.4571 | XDSVW14S04 | |
| G1/2 | 16 | 400 | 1.4571 | XDSVW16S04 | |
| G3/4 | 20 | 400 | 1.4571 | XDSVW20S06 | |
| G1 | 25 | 400 | 1.4571 | XDSVW25S08 | |
| G1 1/4 | 30 | 400 | 1.4571 | XDSVW30S10 | |
| G1 1/2 | 38 | 250 | 1.4571 | XDSVW38S12 |
Verwandte Artikel

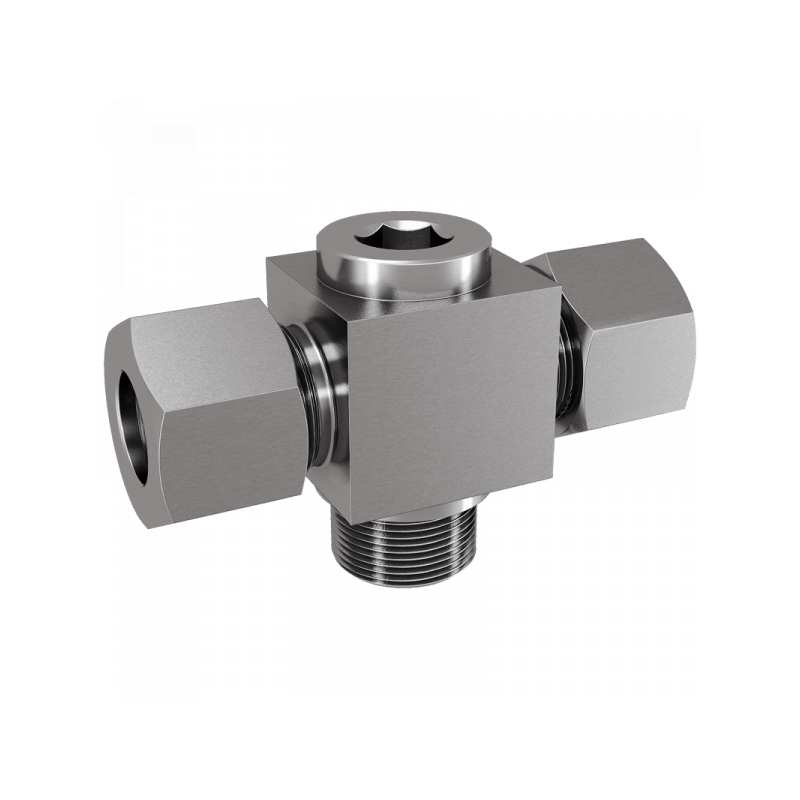

DSVT - LR/SR
