XRVAR-LR/SR: Verschraubungsstutzen
| A | B | PN / Bar | Material | Art.Nr. | |
|---|---|---|---|---|---|
| G1/8 | 06 | 315 | 1.4571 | XRVAR06LR01 | |
| G1/8 | 06 | 315 | 1.4571 | XRVAR06LR01 | |
| G1/4 | 08 | 315 | 1.4571 | XRVAR08LR02 | |
| G1/4 | 08 | 315 | 1.4571 | XRVAR08LR02 | |
| G1/4 | 10 | 315 | 1.4571 | XRVAR10LR02 | |
| G1/4 | 10 | 315 | 1.4571 | XRVAR10LR02 | |
| G3/8 | 12 | 315 | 1.4571 | XRVAR12LR03 | |
| G3/8 | 12 | 315 | 1.4571 | XRVAR12LR03 | |
| G1/2 | 15 | 315 | 1.4571 | XRVAR15LR04 | |
| G1/2 | 15 | 315 | 1.4571 | XRVAR15LR04 | |
| G1/2 | 18 | 315 | 1.4571 | XRVAR18LR04 | |
| G1/2 | 18 | 315 | 1.4571 | XRVAR18LR04 | |
| G3/4 | 22 | 160 | 1.4571 | XRVAR22LR06 | |
| G3/4 | 22 | 160 | 1.4571 | XRVAR22LR06 | |
| G1 | 28 | 160 | 1.4571 | XRVAR28LR08 | |
| G1 | 28 | 160 | 1.4571 | XRVAR28LR08 | |
| G1 1/4 | 35 | 160 | 1.4571 | XRVAR35LR10 | |
| G1 1/4 | 35 | 160 | 1.4571 | XRVAR35LR10 | |
| G1 1/2 | 42 | 160 | 1.4571 | XRVAR42LR12 | |
| G1 1/2 | 42 | 160 | 1.4571 | XRVAR42LR12 | |
| G1/4 | 06 | 630 | 1.4571 | XRVAR06SR02 | |
| G1/4 | 06 | 630 | 1.4571 | XRVAR06SR02 | |
| G1/4 | 08 | 630 | 1.4571 | XRVAR08SR02 | |
| G1/4 | 08 | 630 | 1.4571 | XRVAR08SR02 | |
| G3/8 | 10 | 630 | 1.4571 | XRVAR10SR03 | |
| G3/8 | 10 | 630 | 1.4571 | XRVAR10SR03 | |
| G3/8 | 12 | 630 | 1.4571 | XRVAR12SR03 | |
| G3/8 | 12 | 630 | 1.4571 | XRVAR12SR03 | |
| G1/2 | 14 | 630 | 1.4571 | XRVAR14SR04 | |
| G1/2 | 14 | 630 | 1.4571 | XRVAR14SR04 | |
| G1/2 | 16 | 400 | 1.4571 | XRVAR16SR04 | |
| G1/2 | 16 | 400 | 1.4571 | XRVAR16SR04 | |
| G3/4 | 20 | 400 | 1.4571 | XRVAR20SR06 | |
| G3/4 | 20 | 400 | 1.4571 | XRVAR20SR06 | |
| G1 | 25 | 400 | 1.4571 | XRVAR25SR08 | |
| G1 | 25 | 400 | 1.4571 | XRVAR25SR08 | |
| G1 1/4 | 30 | 400 | 1.4571 | XRVAR30SR10 | |
| G1 1/4 | 30 | 400 | 1.4571 | XRVAR30SR10 | |
| G1 1/2 | 38 | 250 | 1.4571 | XRVAR38SR12 | |
| G1 1/2 | 38 | 250 | 1.4571 | XRVAR38SR12 |
Verwandte Artikel
Fig. 409

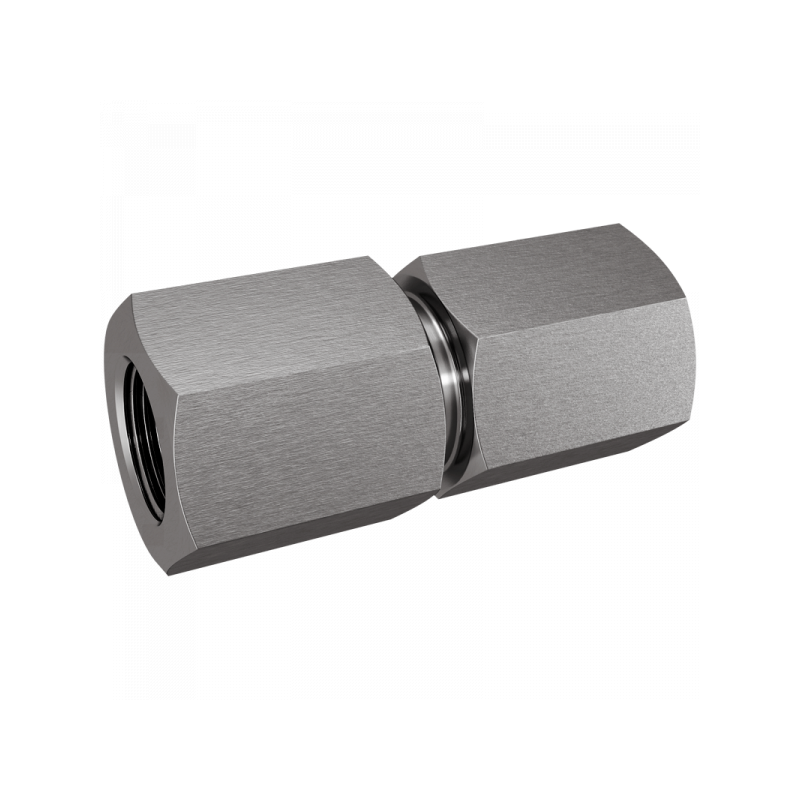

Fig. 410

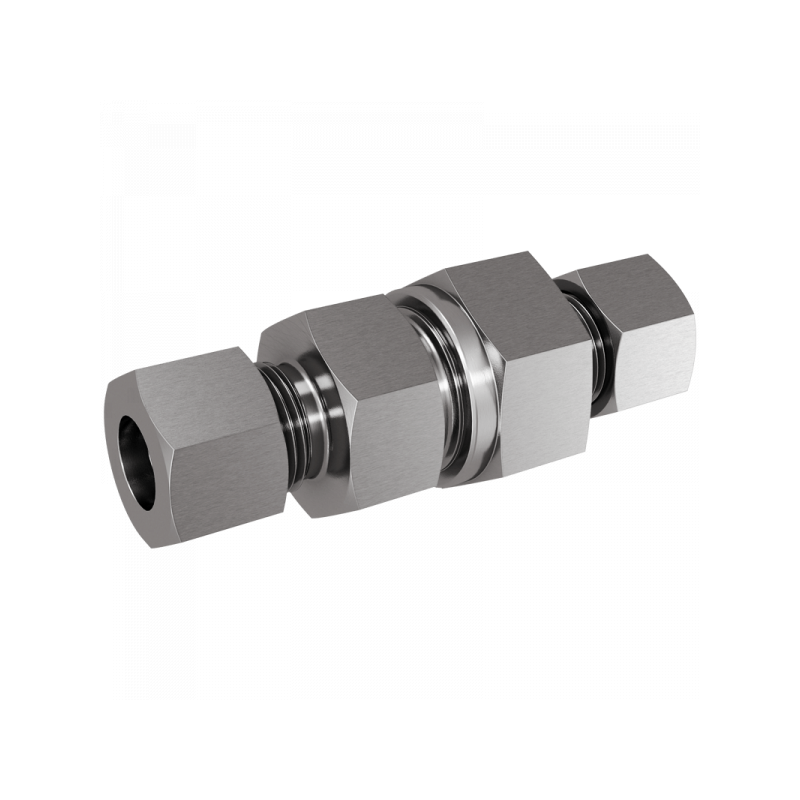

RV-L/S
