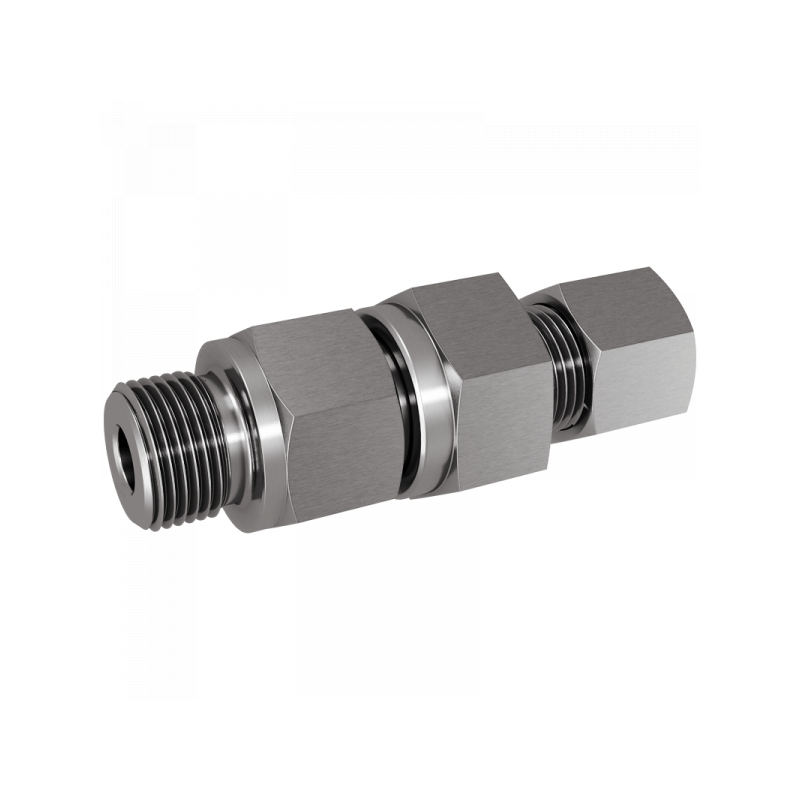

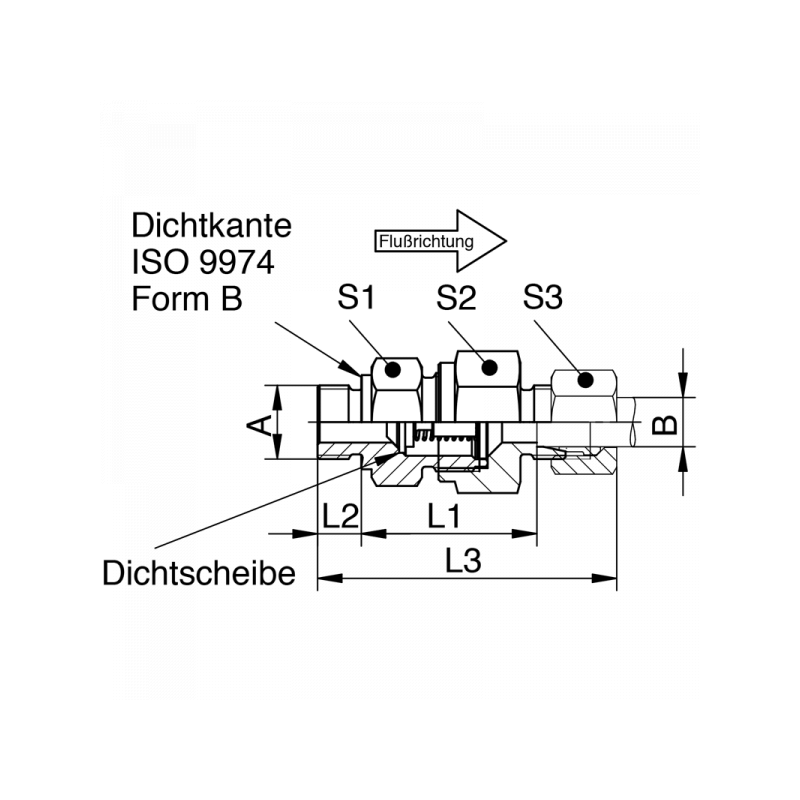

RVER-LR/SR: Rückschlagventil, Flußrichtung vom Einschraubgewinde zm Rohr, Gewinde BSPP mit Dichtkante Form B, leichte + schwere Reihe
| A | B | PN / Bar | L1 / mm | L2 / mm | L3 / mm | S1 | S2 | S3 | Material | Art.Nr. | Stutzen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G1/8 | 06 | 315 | 45 | 8 | 62 | 14 | 17 | 14 | 1.4571 | RVER06LR01 | XRVER06LR01 | |
| G1/8 | 06 | 315 | 45 | 8 | 62 | 14 | 17 | 14 | 1.4571 | RVER06LR01 | XRVER06LR01 | |
| G1/4 | 08 | 315 | 41 | 12 | 58 | 17 | 19 | 17 | 1.4571 | RVER08LR02 | XRVER08LR02 | |
| G1/4 | 08 | 315 | 41 | 12 | 58 | 17 | 19 | 17 | 1.4571 | RVER08LR02 | XRVER08LR02 | |
| G1/4 | 10 | 315 | 53 | 12 | 70 | 22 | 24 | 19 | 1.4571 | RVER10LR02 | XRVER10LR02 | |
| G1/4 | 10 | 315 | 53 | 12 | 70 | 22 | 24 | 19 | 1.4571 | RVER10LR02 | XRVER10LR02 | |
| G3/8 | 12 | 315 | 56 | 12 | 74 | 27 | 30 | 22 | 1.4571 | RVER12LR03 | XRVER12LR03 | |
| G3/8 | 12 | 315 | 56 | 12 | 74 | 27 | 30 | 22 | 1.4571 | RVER12LR03 | XRVER12LR03 | |
| G1/2 | 15 | 315 | 54 | 14 | 72 | 27 | 30 | 27 | 1.4571 | RVER15LR04 | XRVER15LR04 | |
| G1/2 | 15 | 315 | 54 | 14 | 72 | 27 | 30 | 27 | 1.4571 | RVER15LR04 | XRVER15LR04 | |
| G1/2 | 18 | 315 | 59,5 | 14 | 79 | 32 | 36 | 32 | 1.4571 | RVER18LR04 | XRVER18LR04 | |
| G1/2 | 18 | 315 | 59,5 | 14 | 79 | 32 | 36 | 32 | 1.4571 | RVER18LR04 | XRVER18LR04 | |
| G3/4 | 22 | 160 | 62,5 | 16 | 82 | 36 | 46 | 36 | 1.4571 | RVER22LR06 | XRVER22LR06 | |
| G3/4 | 22 | 160 | 62,5 | 16 | 82 | 36 | 46 | 36 | 1.4571 | RVER22LR06 | XRVER22LR06 | |
| G1 | 28 | 160 | 82,5 | 18 | 104 | 41 | 55 | 41 | 1.4571 | RVER28LR08 | XRVER28LR08 | |
| G1 | 28 | 160 | 82,5 | 18 | 104 | 41 | 55 | 41 | 1.4571 | RVER28LR08 | XRVER28LR08 | |
| G1 1/4 | 35 | 160 | 89,5 | 20 | 116 | 50 | 60 | 50 | 1.4571 | RVER35LR10 | XRVER35LR10 | |
| G1 1/4 | 35 | 160 | 89,5 | 20 | 116 | 50 | 60 | 50 | 1.4571 | RVER35LR10 | XRVER35LR10 | |
| G1 1/2 | 42 | 160 | 89 | 22 | 116 | 60 | 70 | 60 | 1.4571 | RVER42LR12 | XRVER42LR12 | |
| G1 1/2 | 42 | 160 | 89 | 22 | 116 | 60 | 70 | 60 | 1.4571 | RVER42LR12 | XRVER42LR12 | |
| G1/4 | 06 | 630 | 49 | 12 | 66 | 17 | 19 | 17 | 1.4571 | RVER06SR02 | XRVER06SR02 | |
| G1/4 | 06 | 630 | 49 | 12 | 66 | 17 | 19 | 17 | 1.4571 | RVER06SR02 | XRVER06SR02 | |
| G1/4 | 08 | 630 | 53 | 12 | 70 | 19 | 19 | 19 | 1.4571 | RVER08SR02 | XRVER08SR02 | |
| G1/4 | 08 | 630 | 53 | 12 | 70 | 19 | 19 | 19 | 1.4571 | RVER08SR02 | XRVER08SR02 | |
| G3/8 | 10 | 630 | 58,5 | 12 | 77 | 22 | 24 | 22 | 1.4571 | RVER10SR03 | XRVER10SR03 | |
| G3/8 | 10 | 630 | 58,5 | 12 | 77 | 22 | 24 | 22 | 1.4571 | RVER10SR03 | XRVER10SR03 | |
| G3/8 | 12 | 630 | 63,5 | 12 | 83 | 27 | 30 | 24 | 1.4571 | RVER12SR03 | XRVER12SR03 | |
| G3/8 | 12 | 630 | 63,5 | 12 | 83 | 27 | 30 | 24 | 1.4571 | RVER12SR03 | XRVER12SR03 | |
| G1/2 | 14 | 630 | 66 | 14 | 86 | 27 | 32 | 27 | 1.4571 | RVER14SR04 | XRVER14SR04 | |
| G1/2 | 14 | 630 | 66 | 14 | 86 | 27 | 32 | 27 | 1.4571 | RVER14SR04 | XRVER14SR04 | |
| G1/2 | 16 | 400 | 67,5 | 14 | 89 | 30 | 36 | 30 | 1.4571 | RVER16SR04 | XRVER16SR04 | |
| G1/2 | 16 | 400 | 67,5 | 14 | 89 | 30 | 36 | 30 | 1.4571 | RVER16SR04 | XRVER16SR04 | |
| G3/4 | 20 | 400 | 81,5 | 16 | 107 | 36 | 46 | 36 | 1.4571 | RVER20SR06 | XRVER20SR06 | |
| G3/4 | 20 | 400 | 81,5 | 16 | 107 | 36 | 46 | 36 | 1.4571 | RVER20SR06 | XRVER20SR06 | |
| G1 | 25 | 400 | 84 | 18 | 112 | 46 | 50 | 46 | 1.4571 | RVER25SR08 | XRVER25SR08 | |
| G1 | 25 | 400 | 84 | 18 | 112 | 46 | 50 | 46 | 1.4571 | RVER25SR08 | XRVER25SR08 | |
| G1 1/4 | 30 | 400 | 103,5 | 20 | 133 | 60 | 60 | 50 | 1.4571 | RVER30SR10 | XRVER30SR10 | |
| G1 1/4 | 30 | 400 | 103,5 | 20 | 133 | 60 | 60 | 50 | 1.4571 | RVER30SR10 | XRVER30SR10 | |
| G1 1/2 | 38 | 250 | 84 | 22 | 119 | 60 | 70 | 60 | 1.4571 | RVER38SR12 | XRVER38SR12 | |
| G1 1/2 | 38 | 250 | 84 | 22 | 119 | 60 | 70 | 60 | 1.4571 | RVER38SR12 | XRVER38SR12 |
Verwandte Artikel

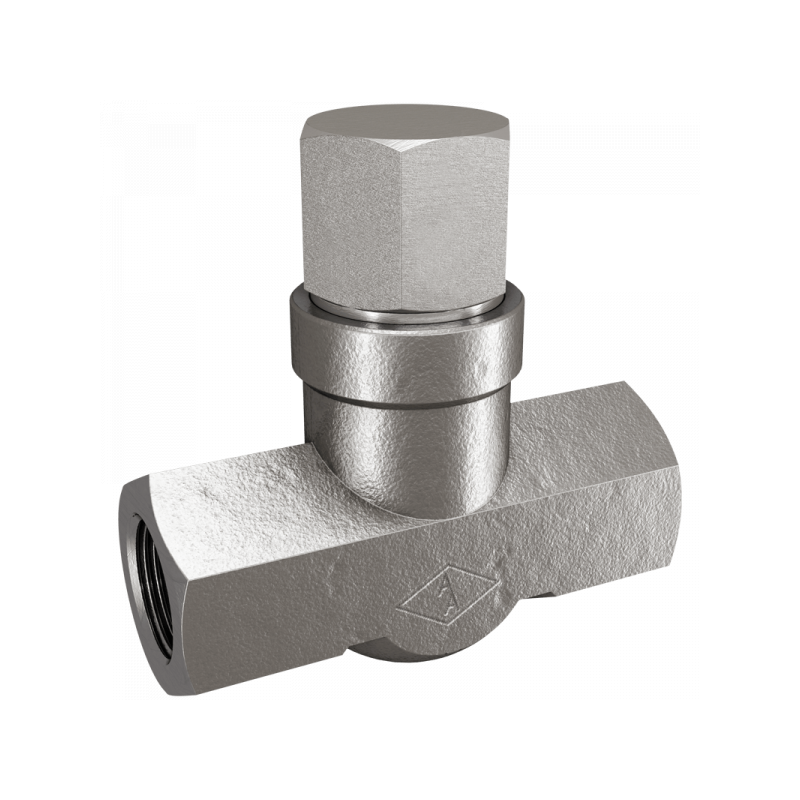

Fig. 409

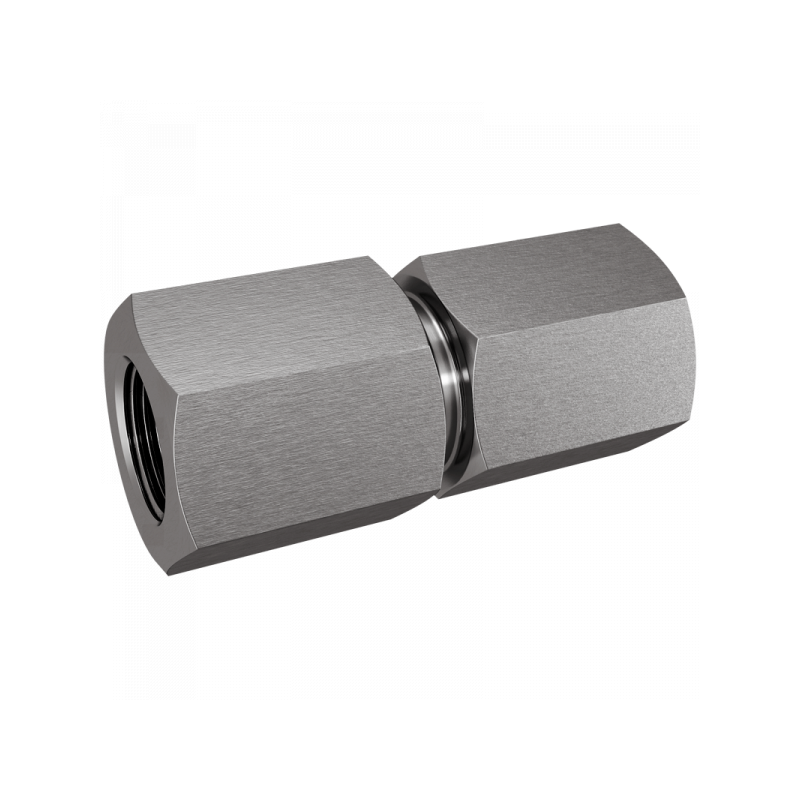

Fig. 410
