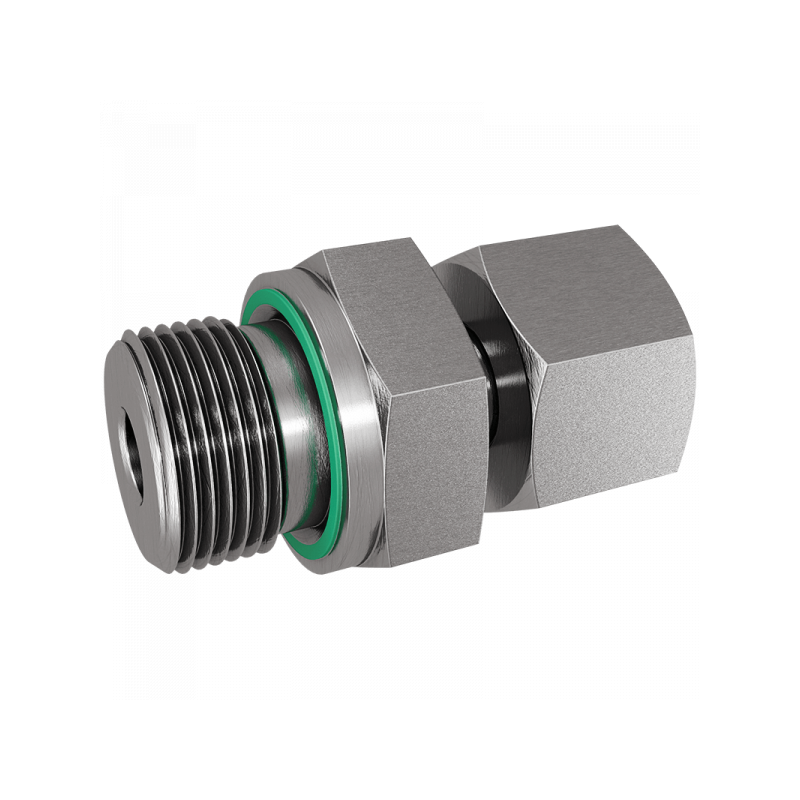

EVGE-LR/SR-ED: Einstellbare gerade Verschraubung mit Schaft, Gewinde BSPP mit Dichtkante Form E, leichte + schwere Reihe

Einstellbare gerade Verschraubung mit Schaft, Gewinde BSPP mit Dichtkante Form E, leichte + schwere Reihe
Einstellbare gerade Verschraubung mit Schaft, Gewinde BSPP mit Dichtkante Form E, leichte + schwere Reihe
A B PN / Bar L1 / mm L2 / mm S1 S2 Material Art.Nr. PDF
G1/8 06 315 8 32,5 14 14 1.4571 EVGE06LED01
G1/4 06 315 12 37 19 14 1.4571 EVGE06LED02
G1/4 08 315 12 41,5 19 17 1.4571 EVGE08LED02
G1/4 10 315 12 39,5 19 19 1.4571 EVGE10LED02
G3/8 10 315 12 44 22 19 1.4571 EVGE10LED03
G1/2 10 315 14 44 27 19 1.4571 EVGE10LED04
G1/4 12 315 12 40,5 19 22 1.4571 EVGE12LED02
G3/8 12 315 12 46 22 22 1.4571 EVGE12LED03
G1/2 12 315 14 48,5 27 22 1.4571 EVGE12LED04
G3/8 15 315 12 45 22 27 1.4571 EVGE15LED03
G1/2 15 315 14 45 27 27 1.4571 EVGE15LED04
G1/2 18 315 14 46,5 27 32 1.4571 EVGE18LED04
G1/2 22 160 14 57 27 36 1.4571 EVGE22LED04
G3/4 22 160 16 48,5 32 36 1.4571 EVGE22LED06
G3/4 28 160 16 61 32 41 1.4571 EVGE28LED06
G1 28 160 18 53 41 41 1.4571 EVGE28LED08
G1 1/4 35 160 20 62,5 50 50 1.4571 EVGE35LED10
G1 1/2 42 160 22 68,5 55 60 1.4571 EVGE42LED12
G1/4 06 630 12 39 19 17 1.4571 EVGE06SED02
G1/4 08 630 12 41,5 19 19 1.4571 EVGE08SED02
G1/4 10 630 12 43,5 19 22 1.4571 EVGE10SED02
G3/8 10 630 12 44 22 22 1.4571 EVGE10SED03
G1/2 10 630 14 47 27 22 1.4571 EVGE10SED04
G3/8 12 630 12 46 22 24 1.4571 EVGE12SED03
G1/2 12 630 14 48,5 27 24 1.4571 EVGE12SED04
G1/2 14 630 14 50,5 27 27 1.4571 EVGE14SED04
G1/2 16 400 14 51 27 30 1.4571 EVGE16SED04
G3/4 16 400 16 55 32 30 1.4571 EVGE16SED06
G1/2 20 400 14 55 27 36 1.4571 EVGE20SED04
G3/4 20 400 16 59 32 36 1.4571 EVGE20SED06
G3/4 25 400 16 64 32 46 1.4571 EVGE25SED06
G1 25 400 18 66 41 46 1.4571 EVGE25SED08
G1 1/4 30 400 20 71 50 50 1.4571 EVGE30SED10
G1 1/2 38 250 22 82 55 60 1.4571 EVGE38SED12
