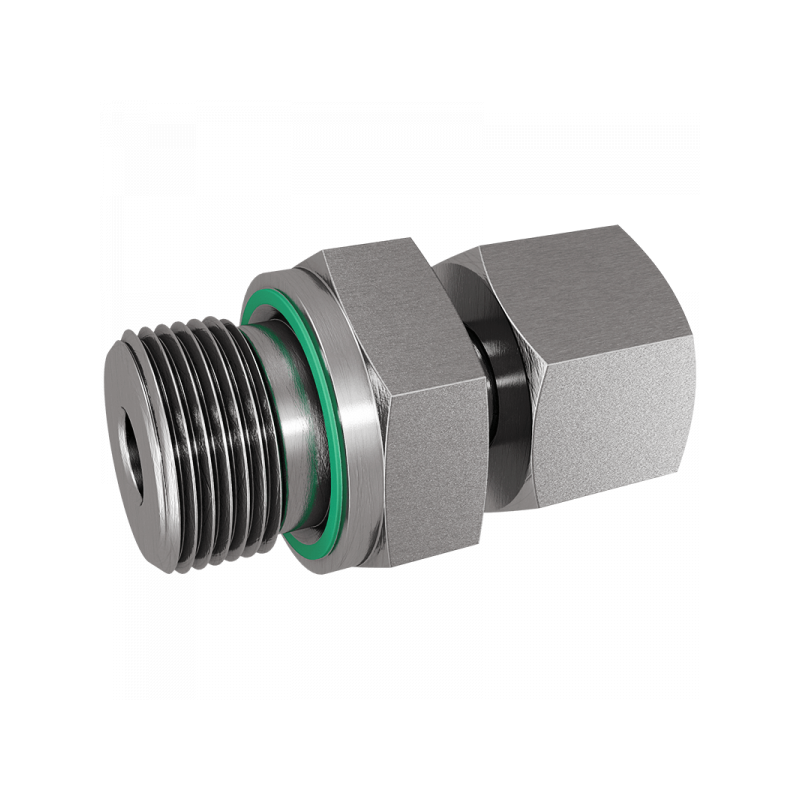

EVGE-LR/SR-ED: Einstellbare gerade Verschraubung mit Schaft, Gewinde BSPP mit Dichtkante Form E, leichte + schwere Reihe
A | B | PN / Bar | L1 / mm | L2 / mm | S1 | S2 | Material | Art.Nr. | |
---|---|---|---|---|---|---|---|---|---|
G1/8 | 06 | 315 | 8 | 32,5 | 14 | 14 | 1.4571 | EVGE06LED01 | |
G1/4 | 06 | 315 | 12 | 37 | 19 | 14 | 1.4571 | EVGE06LED02 | |
G1/4 | 08 | 315 | 12 | 41,5 | 19 | 17 | 1.4571 | EVGE08LED02 | |
G1/4 | 10 | 315 | 12 | 39,5 | 19 | 19 | 1.4571 | EVGE10LED02 | |
G3/8 | 10 | 315 | 12 | 44 | 22 | 19 | 1.4571 | EVGE10LED03 | |
G1/2 | 10 | 315 | 14 | 44 | 27 | 19 | 1.4571 | EVGE10LED04 | |
G1/4 | 12 | 315 | 12 | 40,5 | 19 | 22 | 1.4571 | EVGE12LED02 | |
G3/8 | 12 | 315 | 12 | 46 | 22 | 22 | 1.4571 | EVGE12LED03 | |
G1/2 | 12 | 315 | 14 | 48,5 | 27 | 22 | 1.4571 | EVGE12LED04 | |
G3/8 | 15 | 315 | 12 | 45 | 22 | 27 | 1.4571 | EVGE15LED03 | |
G1/2 | 15 | 315 | 14 | 45 | 27 | 27 | 1.4571 | EVGE15LED04 | |
G1/2 | 18 | 315 | 14 | 46,5 | 27 | 32 | 1.4571 | EVGE18LED04 | |
G1/2 | 22 | 160 | 14 | 57 | 27 | 36 | 1.4571 | EVGE22LED04 | |
G3/4 | 22 | 160 | 16 | 48,5 | 32 | 36 | 1.4571 | EVGE22LED06 | |
G3/4 | 28 | 160 | 16 | 61 | 32 | 41 | 1.4571 | EVGE28LED06 | |
G1 | 28 | 160 | 18 | 53 | 41 | 41 | 1.4571 | EVGE28LED08 | |
G1 1/4 | 35 | 160 | 20 | 62,5 | 50 | 50 | 1.4571 | EVGE35LED10 | |
G1 1/2 | 42 | 160 | 22 | 68,5 | 55 | 60 | 1.4571 | EVGE42LED12 | |
G1/4 | 06 | 630 | 12 | 39 | 19 | 17 | 1.4571 | EVGE06SED02 | |
G1/4 | 08 | 630 | 12 | 41,5 | 19 | 19 | 1.4571 | EVGE08SED02 | |
G1/4 | 10 | 630 | 12 | 43,5 | 19 | 22 | 1.4571 | EVGE10SED02 | |
G3/8 | 10 | 630 | 12 | 44 | 22 | 22 | 1.4571 | EVGE10SED03 | |
G1/2 | 10 | 630 | 14 | 47 | 27 | 22 | 1.4571 | EVGE10SED04 | |
G3/8 | 12 | 630 | 12 | 46 | 22 | 24 | 1.4571 | EVGE12SED03 | |
G1/2 | 12 | 630 | 14 | 48,5 | 27 | 24 | 1.4571 | EVGE12SED04 | |
G1/2 | 14 | 630 | 14 | 50,5 | 27 | 27 | 1.4571 | EVGE14SED04 | |
G1/2 | 16 | 400 | 14 | 51 | 27 | 30 | 1.4571 | EVGE16SED04 | |
G3/4 | 16 | 400 | 16 | 55 | 32 | 30 | 1.4571 | EVGE16SED06 | |
G1/2 | 20 | 400 | 14 | 55 | 27 | 36 | 1.4571 | EVGE20SED04 | |
G3/4 | 20 | 400 | 16 | 59 | 32 | 36 | 1.4571 | EVGE20SED06 | |
G3/4 | 25 | 400 | 16 | 64 | 32 | 46 | 1.4571 | EVGE25SED06 | |
G1 | 25 | 400 | 18 | 66 | 41 | 46 | 1.4571 | EVGE25SED08 | |
G1 1/4 | 30 | 400 | 20 | 71 | 50 | 50 | 1.4571 | EVGE30SED10 | |
G1 1/2 | 38 | 250 | 22 | 82 | 55 | 60 | 1.4571 | EVGE38SED12 |
