Schneidringverschraubungen

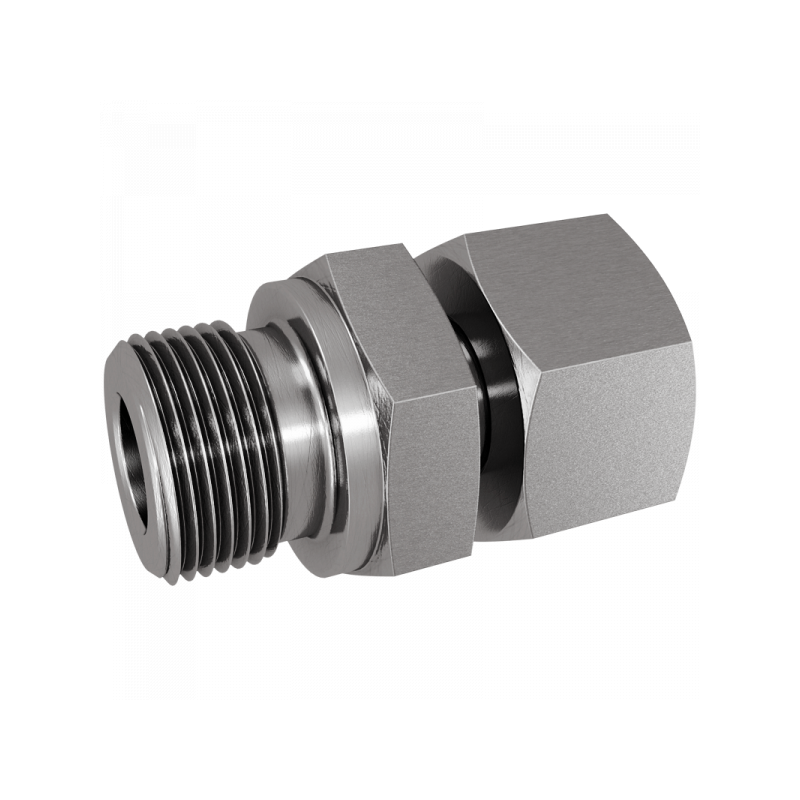

Einstellbare Verschraubungen mit Schaft

A	B	PN / Bar	L1 / mm	L2 / mm	S1	S2	Material	Art.Nr.
G1/8	06	315	8	32,5	14	14	1.4571	EVGE06L01
G1/4	06	315	12	37	19	14	1.4571	EVGE06L02
G1/4	08	315	12	41,5	19	17	1.4571	EVGE08L02
G3/8	08	315	12	41,5	22	17	1.4571	EVGE08L03
G1/4	10	315	12	39,5	19	19	1.4571	EVGE10L02
G3/8	10	315	12	44	22	19	1.4571	EVGE10L03
G1/2	10	315	14	44	27	19	1.4571	EVGE10L04
G1/4	12	315	12	40,5	19	22	1.4571	EVGE12L02
G3/8	12	315	12	46	22	22	1.4571	EVGE12L03
G1/2	12	315	14	48,5	27	22	1.4571	EVGE12L04
G3/8	15	315	12	45	22	27	1.4571	EVGE15L03
G1/2	15	315	14	45	27	27	1.4571	EVGE15L04
G1/2	18	315	14	46,5	27	32	1.4571	EVGE18L04
G1/2	22	160	14	57	27	36	1.4571	EVGE22L04
G3/4	22	160	16	48,5	32	36	1.4571	EVGE22L06
G3/4	28	160	16	61	32	41	1.4571	EVGE28L06
G1	28	160	18	53	41	41	1.4571	EVGE28L08
G1 1/4	35	160	20	62,5	50	50	1.4571	EVGE35L10
G1 1/2	42	160	22	68,5	55	60	1.4571	EVGE42L12
G1/4	06	630	12	39	19	17	1.4571	EVGE06S02
G1/4	08	630	12	41,5	19	19	1.4571	EVGE08S02
G1/4	10	630	12	43,5	19	22	1.4571	EVGE10S02
G3/8	10	630	12	44	22	22	1.4571	EVGE10S03
G1/2	10	630	14	47	27	22	1.4571	EVGE10S04
G3/8	12	630	12	46	22	24	1.4571	EVGE12S03
G1/2	12	630	14	48,5	27	24	1.4571	EVGE12S04
G1/2	14	630	14	50,5	27	27	1.4571	EVGE14S04
G1/2	16	400	14	51	27	30	1.4571	EVGE16S04
G3/4	16	400	16	55	32	30	1.4571	EVGE16S06
G1/2	20	400	14	55	27	36	1.4571	EVGE20S04
G3/4	20	400	16	59	32	36	1.4571	EVGE20S06
G3/4	25	400	16	64	32	46	1.4571	EVGE25S06
G1	25	400	18	66	41	46	1.4571	EVGE25S08
G1 1/4	30	400	20	71	50	50	1.4571	EVGE30S10
G1 1/2	38	250	22	82	55	60	1.4571	EVGE38S12
