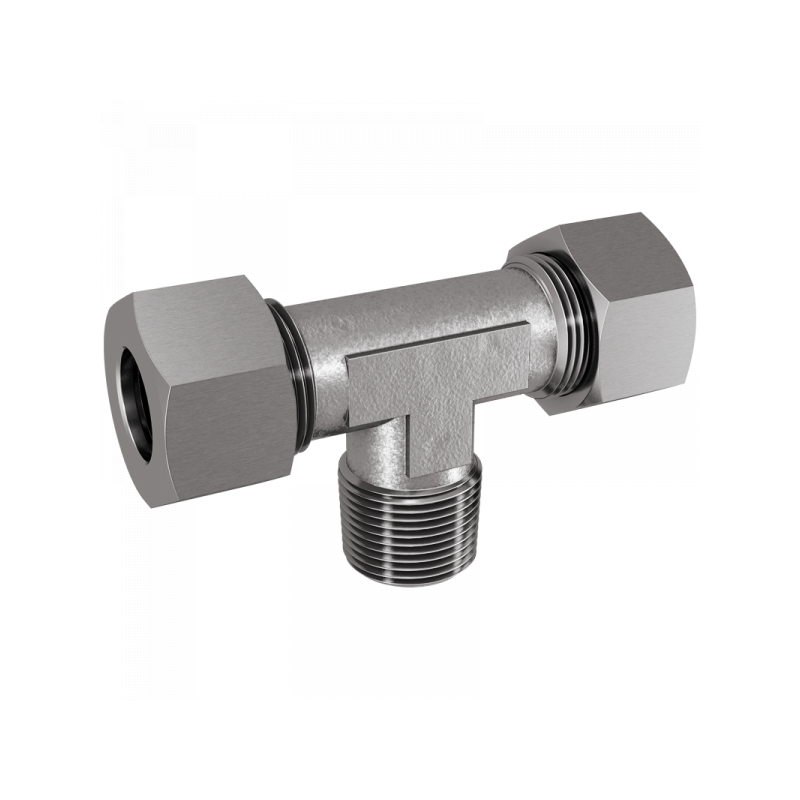

TE-LR/SR-KEG:
| A | B | PN / Bar | L1 / mm | L2 / mm | L3 / mm | L4 / mm | L5 / mm | S1 | S2 | Material | Art.Nr. | Stutzen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1/8keg | 06 | 315 | 12 | 19 | 29 | 8 | 20 | 12 | 14 | 1.4571 | TE06L01 | XTE06L01 | |
| R1/4keg | 06 | 315 | 14 | 21 | 31 | 12 | 26 | 12 | 14 | 1.4571 | TE06L02 | XTE06L02 | |
| R1/4keg | 08 | 315 | 14 | 21 | 31 | 12 | 26 | 12 | 17 | 1.4571 | TE08L02 | XTE08L02 | |
| R3/8keg | 08 | 315 | 17 | 24 | 34 | 12 | 28 | 17 | 17 | 1.4571 | TE08L03 | XTE08L03 | |
| R1/2keg | 08 | 315 | 20 | 27 | 37 | 14 | 32 | 17 | 17 | 1.4571 | TE08L04 | XTE08L04 | |
| R1/4keg | 10 | 315 | 15 | 22 | 33 | 12 | 27 | 14 | 19 | 1.4571 | TE10L02 | XTE10L02 | |
| R3/8keg | 10 | 315 | 17 | 24 | 35 | 12 | 28 | 17 | 19 | 1.4571 | TE10L03 | XTE10L03 | |
| R1/2keg | 10 | 315 | 21 | 28 | 39 | 14 | 32 | 17 | 19 | 1.4571 | TE10L04 | XTE10L04 | |
| R1/4keg | 12 | 315 | 17 | 24 | 35 | 12 | 28 | 17 | 22 | 1.4571 | TE12L02 | XTE12L02 | |
| R3/8keg | 12 | 315 | 17 | 24 | 35 | 12 | 28 | 17 | 22 | 1.4571 | TE12L03 | XTE12L03 | |
| R3/8keg | 15 | 315 | 21 | 28 | 39 | 12 | 34 | 19 | 27 | 1.4571 | TE15L03 | XTE15L03 | |
| R1/2keg | 15 | 315 | 21 | 28 | 39 | 14 | 34 | 19 | 27 | 1.4571 | TE15L04 | XTE15L04 | |
| R3/8keg | 18 | 315 | 22,5 | 30 | 42 | 12 | 35 | 24 | 32 | 1.4571 | TE18L03 | XTE18L03 | |
| R1/2keg | 18 | 315 | 23,5 | 31 | 43 | 14 | 36 | 24 | 32 | 1.4571 | TE18L04 | XTE18L04 | |
| R1/4keg | 06 | 630 | 16 | 23 | 33 | 12 | 26 | 12 | 17 | 1.4571 | TE06S02 | XTE06S02 | |
| R1/4keg | 08 | 630 | 17 | 24 | 34 | 12 | 27 | 14 | 19 | 1.4571 | TE08S02 | XTE08S02 | |
| R3/8keg | 10 | 630 | 17,5 | 25 | 37 | 12 | 28 | 17 | 22 | 1.4571 | TE10S03 | XTE10S03 | |
| R1/2keg | 12 | 630 | 22,5 | 30 | 42 | 14 | 32 | 17 | 24 | 1.4571 | TE12S04 | XTE12S04 | |
| R1/2keg | 14 | 630 | 22 | 30 | 42 | 14 | 32 | 17 | 27 | 1.4571 | TE14S04 | XTE14S04 | |
| R1/2keg | 16 | 400 | 24,5 | 33 | 46 | 14 | 32 | 24 | 30 | 1.4571 | TE16S04 | XTE16S04 |
