Cutting ring fittings

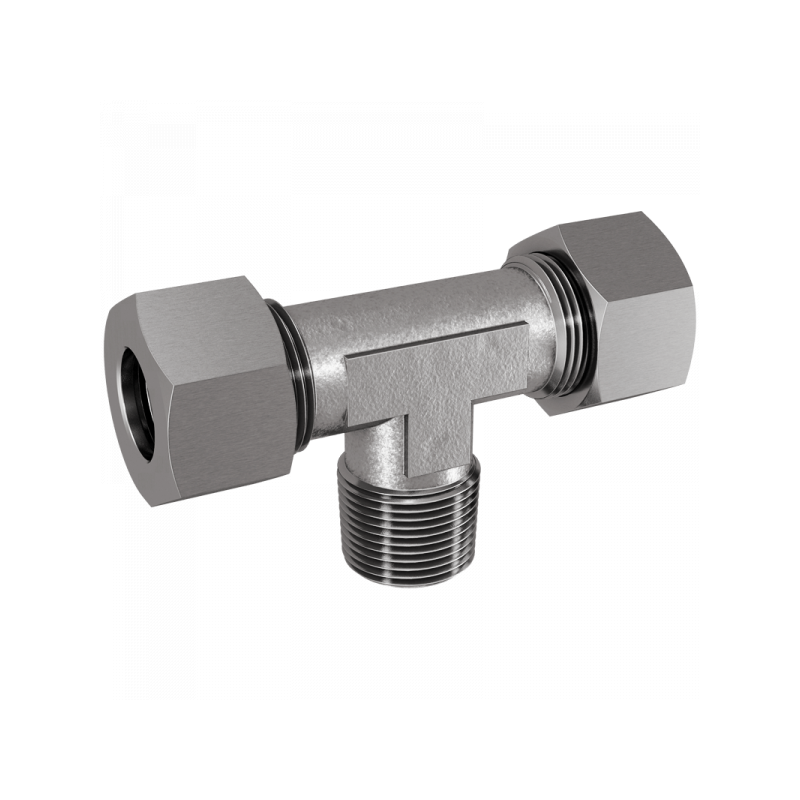

T-male stud couplings

A	B	PN / Bar	L1 / mm	L2 / mm	L3 / mm	L4 / mm	L5 / mm	S1	S2	Material	Art.Nr.	Stutzen
1/8NPT	06	315	12	19	29	10	20	12	14	1.4571	TE06LN01	XTE06LN01
1/4NPT	08	315	14	21	31	15	26	12	17	1.4571	TE08LN02	XTE08LN02
1/4NPT	10	315	15	22	33	15	27	14	19	1.4571	TE10LN02	XTE10LN02
3/8NPT	12	315	17	24	35	15	28	17	22	1.4571	TE12LN03	XTE12LN03
1/2NPT	12	315	21	28	39	20	34	17	22	1.4571	TE12LN04	XTE12LN04
1/2NPT	15	315	21	28	39	20	34	19	27	1.4571	TE15LN04	XTE15LN04
1/2NPT	18	315	23,5	31	43	20	36	24	32	1.4571	TE18LN04	XTE18LN04
3/4NPT	22	160	27,5	35	47	20	42	27	36	1.4571	TE22LN06	XTE22LN06
1NPT	28	160	30,5	38	52	25	48	36	41	1.4571	TE28LN08	XTE28LN08
1 1/4NPT	35	160	34,5	45	61	26	54	41	50	1.4571	TE35LN10	XTE35LN10
1 1/2NPT	42	160	40	51	67	26	61	50	60	1.4571	TE42LN12	XTE42LN12
1/4NPT	06	630	16	23	33	15	26	12	17	1.4571	TE06SN02	XTE06SN02
1/4NPT	08	630	17	24	34	15	27	14	19	1.4571	TE08SN02	XTE08SN02
3/8NPT	10	630	17,5	25	37	15	28	17	22	1.4571	TE10SN03	XTE10SN03
3/8NPT	12	630	22,5	29	41	15	28	17	24	1.4571	TE12SN03	XTE12SN03
1/2NPT	14	630	22	30	42	20	34	19	27	1.4571	TE14SN04	XTE14SN04
1/2NPT	16	400	24,5	33	46	20	36	24	30	1.4571	TE16SN04	XTE16SN04
3/4NPT	20	400	26,5	37	52	20	42	27	36	1.4571	TE20SN06	XTE20SN06
1NPT	25	400	30	42	58	25	48	36	46	1.4571	TE25SN08	XTE25SN08
1 1/4NPT	30	400	35,5	49	65	26	54	41	50	1.4571	TE30SN10	XTE30SN10
1 1/2NPT	38	250	41	57	76	26	61	50	60	1.4571	TE38SN12	XTE38SN12
