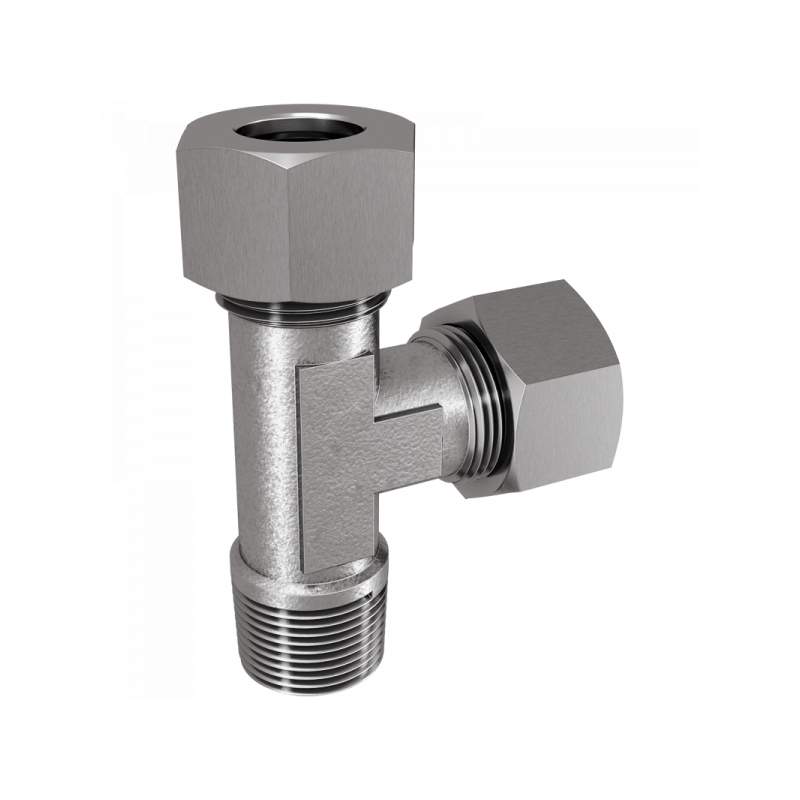

LE-LR/SR-KEG:

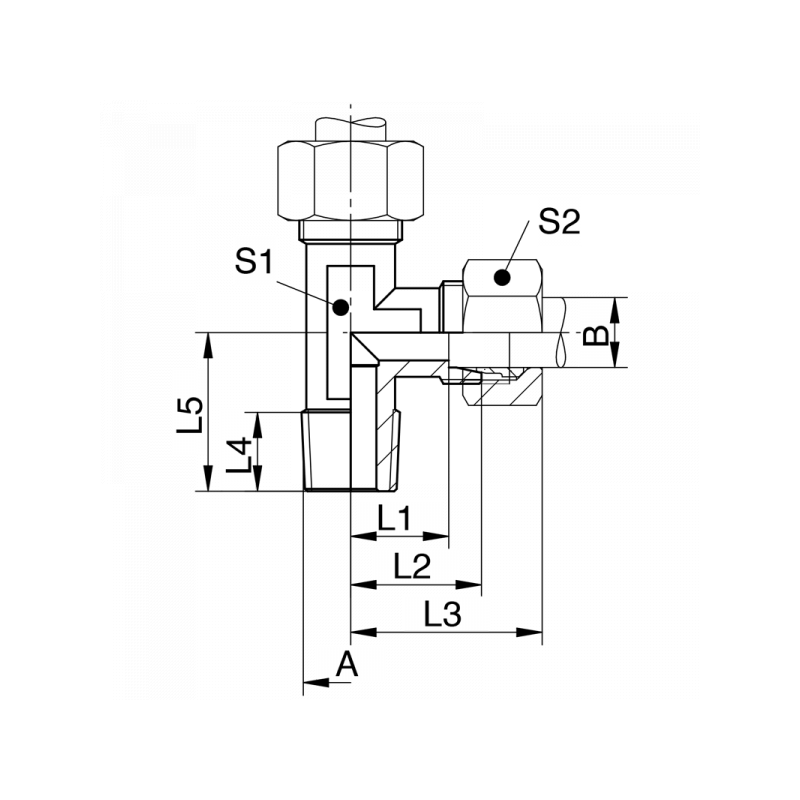

| A | B | PN / Bar | L1 / mm | L2 / mm | L3 / mm | L4 / mm | L5 / mm | S1 | S2 | Material | Art.Nr. | Stutzen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1/8keg | 06 | 315 | 12 | 19 | 29 | 8 | 20 | 12 | 14 | 1.4571 | LE06L01 | XLE06L01 | |
| R1/4keg | 08 | 315 | 14 | 21 | 31 | 12 | 26 | 12 | 17 | 1.4571 | LE08L02 | XLE08L02 | |
| R1/4keg | 10 | 315 | 15 | 22 | 33 | 12 | 27 | 14 | 19 | 1.4571 | LE10L02 | XLE10L02 | |
| R1/4keg | 12 | 315 | 17 | 24 | 35 | 12 | 28 | 17 | 22 | 1.4571 | LE12L02 | XLE12L02 | |
| R3/8keg | 12 | 315 | 17 | 24 | 35 | 12 | 28 | 17 | 22 | 1.4571 | LE12L03 | XLE12L03 | |
| R1/2keg | 12 | 315 | 21 | 28 | 39 | 14 | 34 | 17 | 22 | 1.4571 | LE12L04 | XLE12L04 | |
| R1/2keg | 15 | 315 | 21 | 28 | 39 | 14 | 34 | 19 | 27 | 1.4571 | LE15L04 | XLE15L04 | |
| R1/2keg | 18 | 315 | 23,5 | 31 | 43 | 14 | 36 | 24 | 32 | 1.4571 | LE18L04 | XLE18L04 | |
| R1/4keg | 06 | 630 | 16 | 23 | 33 | 12 | 26 | 12 | 17 | 1.4571 | LE06S02 | XLE06S02 | |
| R1/4keg | 08 | 630 | 17 | 24 | 34 | 12 | 27 | 14 | 19 | 1.4571 | LE08S02 | XLE08S02 | |
| R3/8keg | 10 | 630 | 17,5 | 25 | 37 | 12 | 28 | 17 | 22 | 1.4571 | LE10S03 | XLE10S03 | |
| R3/8keg | 12 | 630 | 21,5 | 29 | 41 | 12 | 28 | 17 | 24 | 1.4571 | LE12S03 | XLE12S03 | |
| R1/2keg | 14 | 630 | 22 | 30 | 42 | 14 | 32 | 19 | 27 | 1.4571 | LE14S04 | XLE14S04 | |
| R1/2keg | 16 | 400 | 24,5 | 33 | 46 | 14 | 32 | 24 | 30 | 1.4571 | LE16S04 | XLE16S04 |
