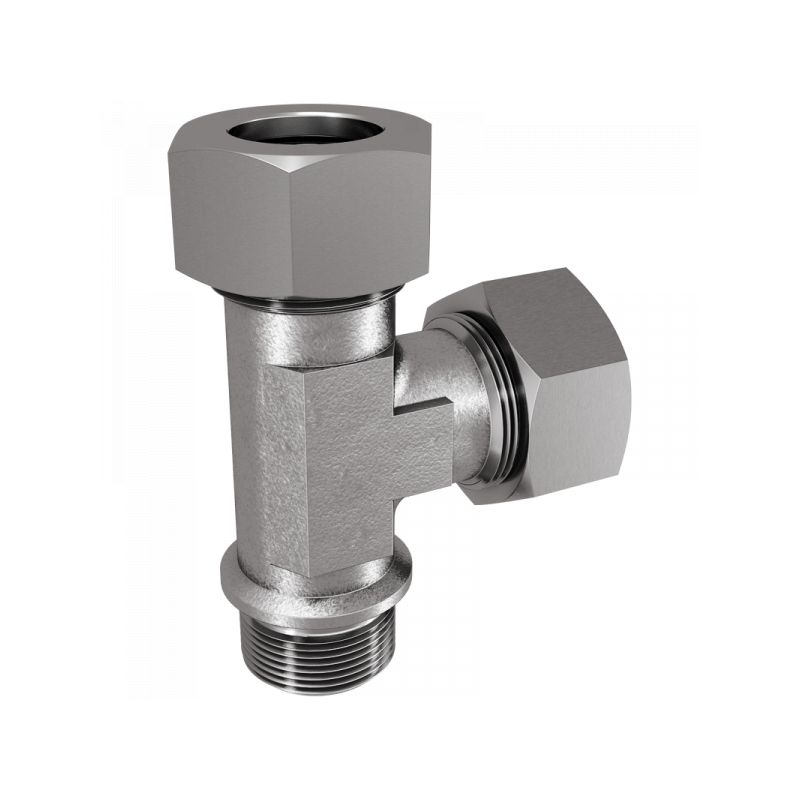

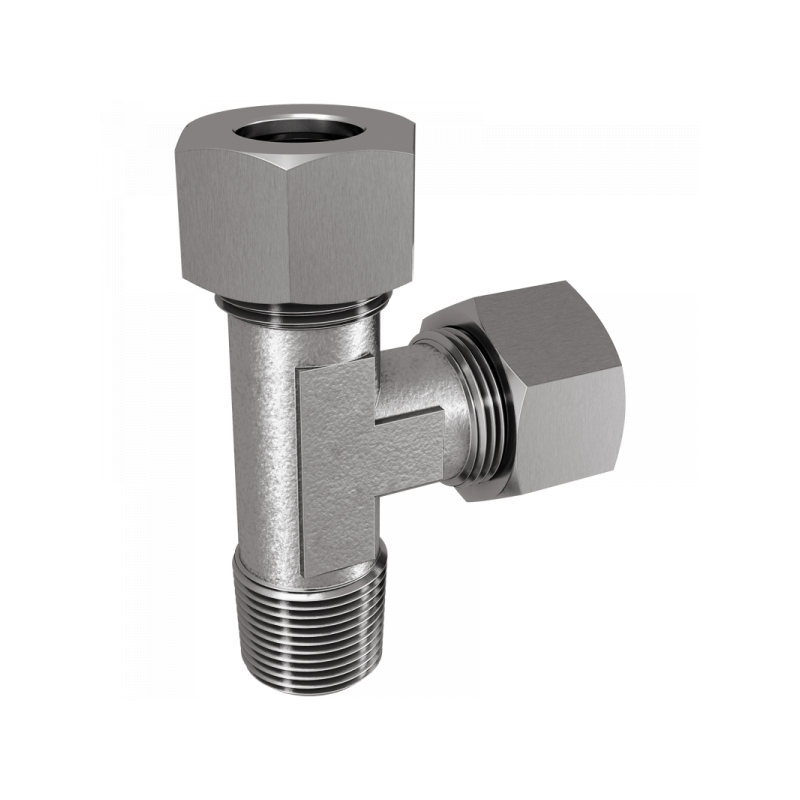

LE-LR/SR:

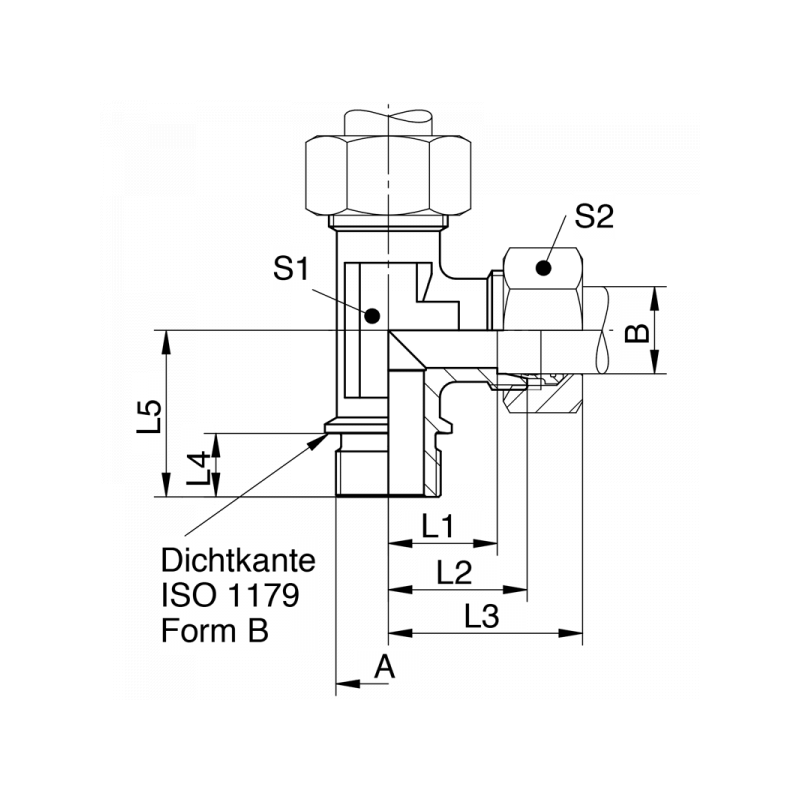

A B PN / Bar L1 / mm L2 / mm L3 / mm L4 / mm L5 / mm S1 S2 Material Art.Nr. Stutzen PDF
G3/4 22 160 27,5 35 47 16 26 27 36 1.4571 LE22L06  XLE22L06
G1 28 160 30,5 38 52 18 30 36 41 1.4571 LE28L08  XLE28L08
G1 1/4 35 160 34,5 45 61 20 34 41 50 1.4571 LE35L10  XLE35L10
G1 1/2 42 160 40 51 67 22 39 50 60 1.4571 LE42L12  XLE42L12
G3/4 20 400 26,5 37 52 16 26 27 36 1.4571 LE20S06  XLE20S06
G1 25 400 30 42 58 18 30 36 46 1.4571 LE25S08  XLE25S08
G1 1/4 30 400 35,5 49 65 20 34 41 50 1.4571 LE30S10  XLE30S10
G1 1/2 38 250 41 57 76 22 39 50 60 1.4571 LE38S12  XLE38S12
