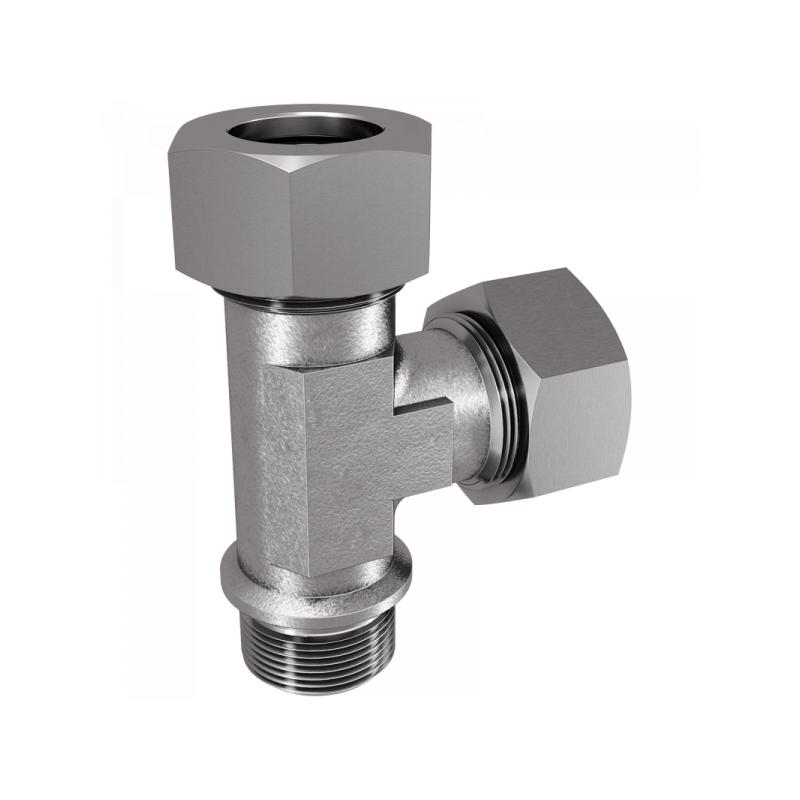

LE-LR/SR-NPT:

A B PN / Bar L1 / mm L2 / mm L3 / mm L4 / mm L5 / mm S1 S2 Material Art.Nr. Stutzen PDF
1/8NPT 06 315 12 19 29 10 20 12 14 1.4571 LE06LN01  XLE06LN01
1/4NPT 08 315 14 21 31 15 26 12 17 1.4571 LE08LN02  XLE08LN02
1/4NPT 10 315 15 22 33 15 27 14 19 1.4571 LE10LN02  XLE10LN02
3/8NPT 12 315 17 24 35 15 28 17 22 1.4571 LE12LN03  XLE12LN03
1/2NPT 15 315 21 28 39 20 34 19 27 1.4571 LE15LN04  XLE15LN04
1/2NPT 18 315 23,5 31 43 20 36 24 32 1.4571 LE18LN04  XLE18LN04
3/4NPT 22 160 27,5 35 47 20 42 27 36 1.4571 LE22LN06  XLE22LN06
1NPT 28 160 30,5 38 52 25 48 36 41 1.4571 LE28LN08  XLE28LN08
1 1/4NPT 35 160 34,5 45 61 26 54 41 50 1.4571 LE35LN10  XLE35LN10
1 1/2NPT 42 160 40 51 67 26 61 50 60 1.4571 LE42LN12  XLE42LN12
1/4NPT 06 630 16 23 33 15 26 12 17 1.4571 LE06SN02  XLE06SN02
1/4NPT 08 630 17 24 34 15 27 14 19 1.4571 LE08SN02  XLE08SN02
3/8NPT 10 630 17,5 25 37 15 28 17 22 1.4571 LE10SN03  XLE10SN03
3/8NPT 12 630 22,5 29 41 15 28 17 24 1.4571 LE12SN03  XLE12SN03
1/2NPT 14 630 22 30 42 20 34 19 27 1.4571 LE14SN04  XLE14SN04
1/2NPT 16 400 24,5 33 46 20 36 24 30 1.4571 LE16SN04  XLE16SN04
3/4NPT 20 400 26,5 37 52 20 42 27 36 1.4571 LE20SN06  XLE20SN06
1NPT 25 400 30 42 58 25 48 36 46 1.4571 LE25SN08  XLE25SN08
1 1/4NPT 30 400 35,5 49 65 26 54 41 50 1.4571 LE30SN10  XLE30SN10
1 1/2NPT 38 250 41 57 76 26 61 50 60 1.4571 LE38SN12  XLE38SN12
