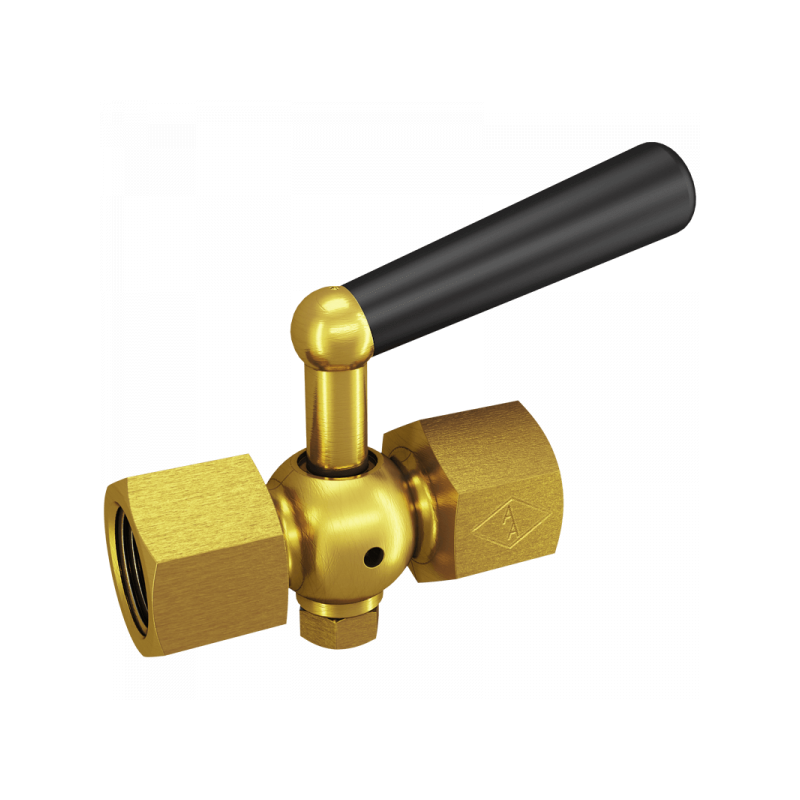

Fig. 11:

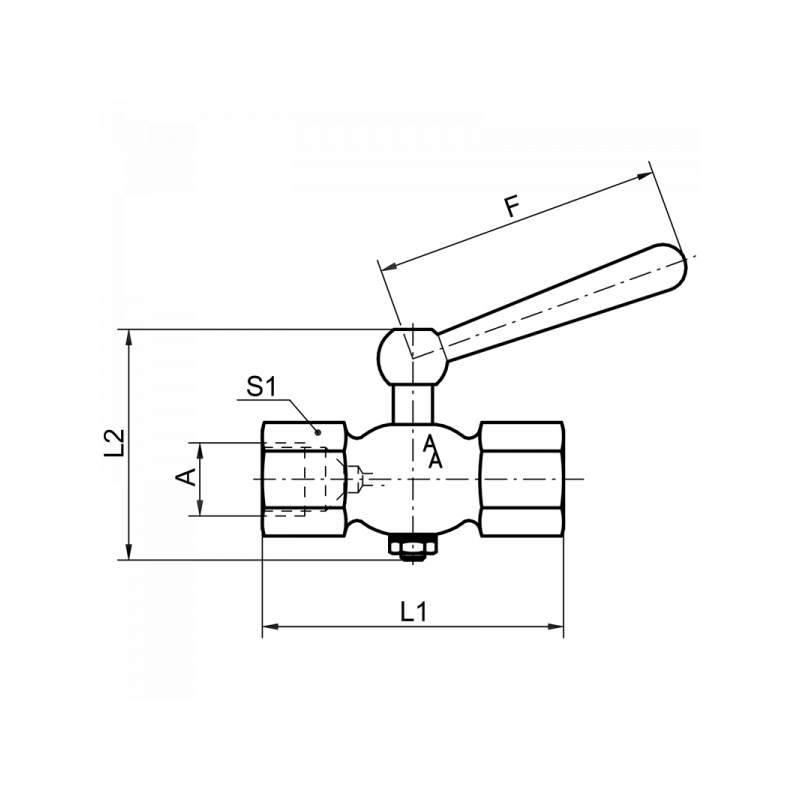

DIN A PN / Bar L1 / mm L2 / mm F / mm S1 Material Art.Nr. PDF
DIN 16261 A G1/4 6 -10°C / +50°C 50 60 48 22 1.4571 10011023
DIN 16261 A G3/8 6 -10°C / +50°C 55 60 48 22 1.4571 10011033
DIN 16261 A G1/2 16 -10°C / +50°C 70 67 60 27 1.4571 10011043
DIN 16261 A G1/4 6 -10°C / +50°C 50 60 48 20 1.4571 E10011023
DIN 16261 A G1/2 16 -10°C / +50°C 70 67 60 27 1.4571 E10011043
DIN 16261 A G1/4 16 -10°C / +50°C 56 43 62 22 Messing 10011021
DIN 16261 A G3/8 6 -10°C / +50°C 62 62 62 27 Messing 10011031
DIN 16261 A G1/2 25 -10°C / +50°C 71 62 62 27 Messing 10011041
