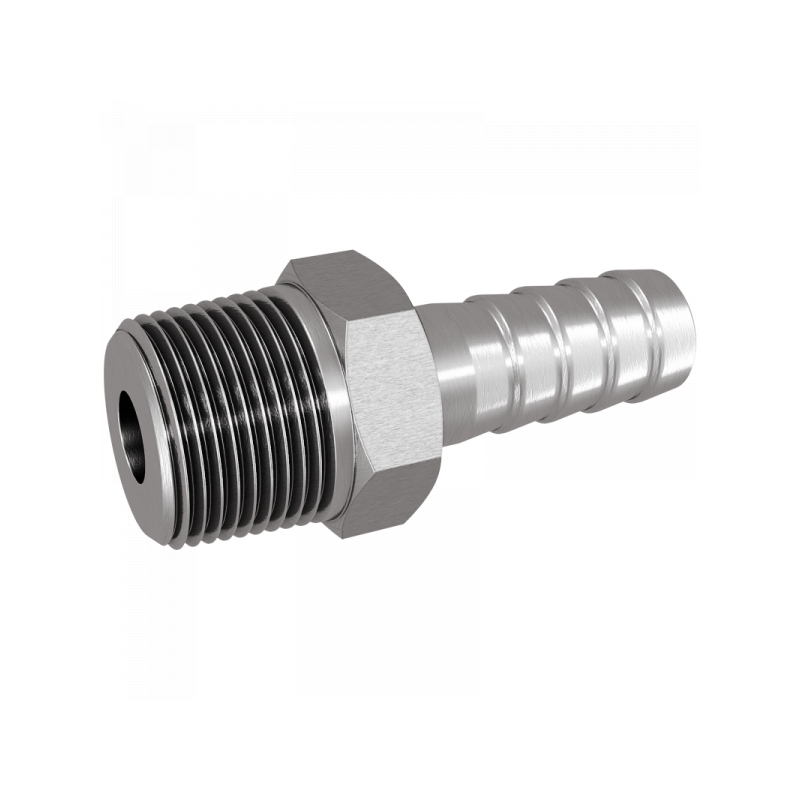

Fig. 5852:

A B / mm L1 / mm S1 Material Art.Nr. PDF
R1/8keg 6 38 12 1.4571 585201063
R1/4keg 6 40 14 1.4571 585202063
R1/4keg 9 45 14 1.4571 585202093
R1/4keg 11 47 14 1.4571 585202113
R3/8keg 9 48 17 1.4571 585203093
R3/8keg 11 50 17 1.4571 585203113
R3/8keg 13 47 17 1.4571 585203133
R1/2keg 6 52 22 1.4571 585204063
R1/2keg 9 52 22 1.4571 585204093
R1/2keg 11 52 22 1.4571 585204113
R1/2keg 13 52 22 1.4571 585204133
R1/2keg 15 52 22 1.4571 585204153
R1/2keg 19 54 22 1.4571 585204193
R3/4keg 13 58 27 1.4571 585206133
R3/4keg 16 58 27 1.4571 585206163
R3/4keg 19 58 27 1.4571 585206193
R3/4keg 25 58 27 1.4571 585206253
R1keg 19 65 36 1.4571 585208193
R1keg 25 65 36 1.4571 585208253
R1keg 32 72 36 1.4571 585208323
R1 1/4keg 25 75 46 1.4571 585210253
R1 1/4keg 30 75 46 1.4571 585210303
