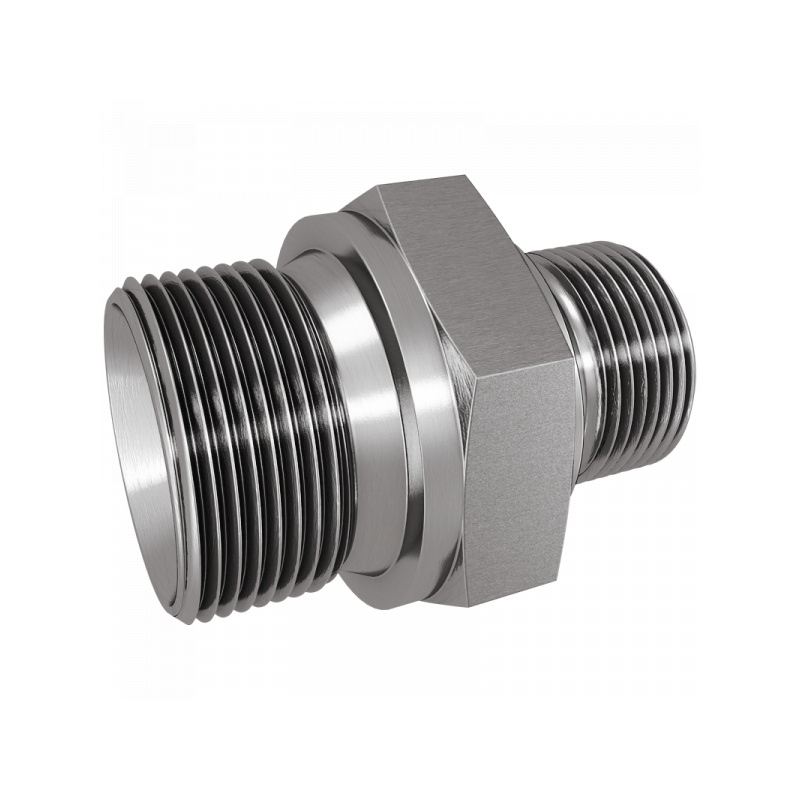

Fig. 5813:

A B DN PN / Bar L1 / mm S1 Material Art.Nr. PDF
G1/4 G1/8 5 400 30 17 1.4571 5813DN05
G3/8 G1/4 6 400 33 22 1.4571 5813DN06
G1/2 G1/4 6 400 39 27 1.4571 5813DN061
G1/2 G3/8 9,5 400 41 27 1.4571 5813DN08
G3/4 G3/8 8 400 44 32 1.4571 5813DN081
G5/8 G1/2 10 400 44 30 1.4571 5813DN10
G3/4 G1/2 12 400 45 32 1.4571 5813DN101
G1 G1/2 10 400 51 41 1.4571 5813DN102
G5/8 G3/4 16 400 47 32 1.4571 5813DN16
G1 G3/4 16 400 52 41 1.4571 5813DN161
G1 1/4 G3/4 16 200 54 50 1.4571 5813DN162
G1 1/4 G1 20 200 58 50 1.4571 5813DN20
G1 1/2 G1 20 200 60 55 1.4571 5813DN201
G1 1/2 G1 1/4 25 200 63 55 1.4571 5813DN25
G2 G1 1/2 31 100 69 70 1.4571 5813DN32
