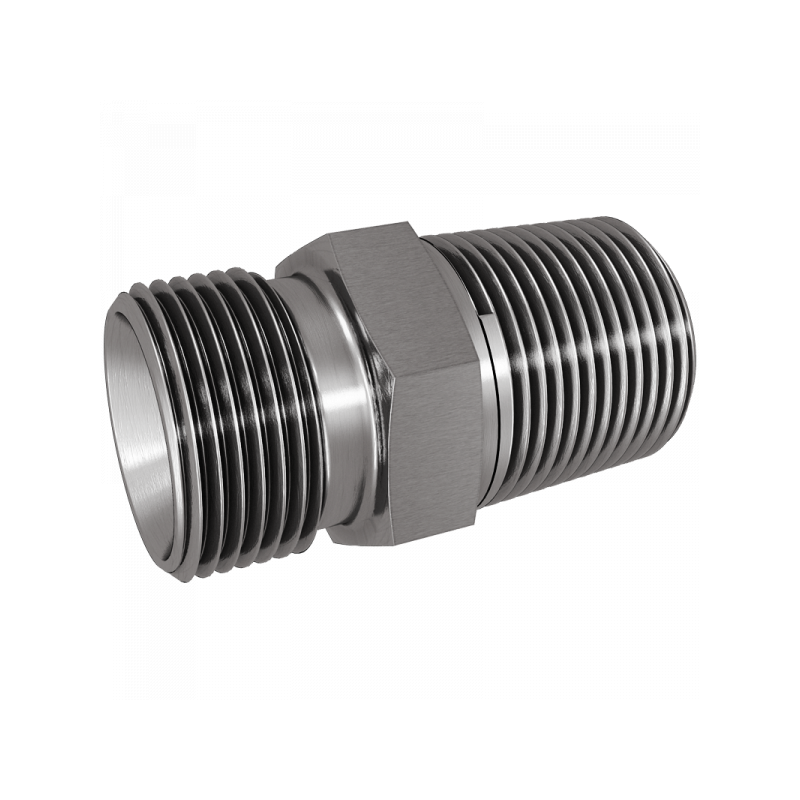

Fig. 5815:

A B DN PN / Bar L1 / mm S1 Material Art.Nr. PDF
G1/4 1/4NPT 6 400 32 17 1.4571 581502
G3/8 3/8NPT 8 400 33 17 1.4571 581503
G1/2 1/2NPT 12 400 41 22 1.4571 581504
G3/4 3/4NPT 16 400 44 27 1.4571 581506
G1 1NPT 18 400 53 36 1.4571 581508
G1 1/4 1 1/4NPT 25 200 58 46 1.4571 581510
G1 1/2 1 1/2NPT 32 200 61 50 1.4571 581512
G2 2NPT 40 100 71 65 1.4571 581516
