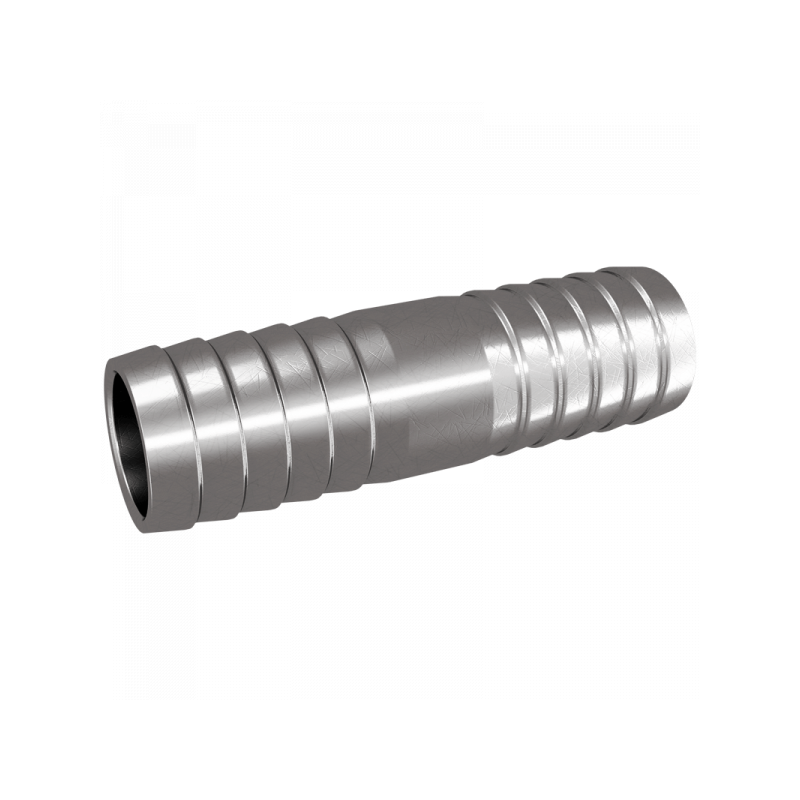

Fig. 5824:

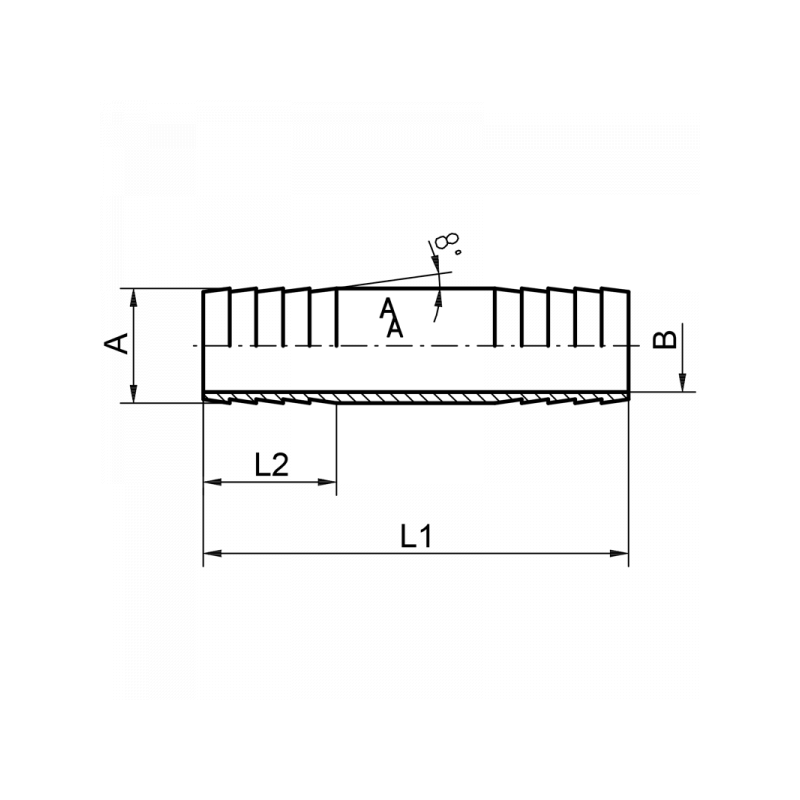

A B / mm L1 / mm L2 / mm Material Art.Nr. PDF
1/8-10,2 6 70 30 1.4571 582401
1/4-13,5 8,9 70 30 1.4571 582402
3/8-17,2 12,6 70 31 1.4571 582403
1/2-21,0 16 70 29,5 1.4571 582404
3/4-26,9 21,7 70 31 1.4571 582406
1-33,7 27,3 70 31,5 1.4571 582408
1 1/4-42,4 36 70 31 1.4571 582410
