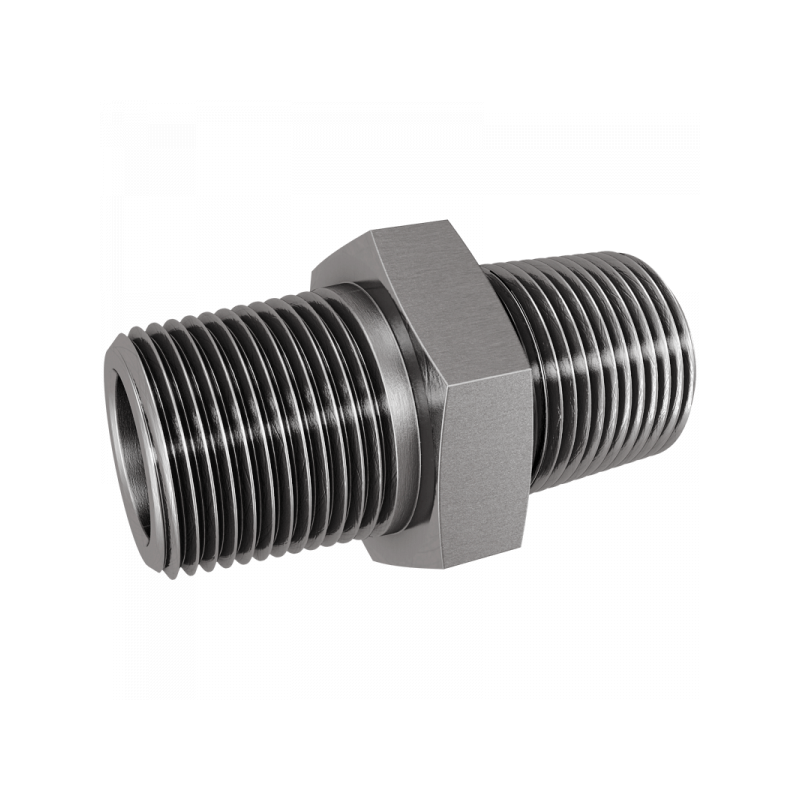

Fig. 5827:

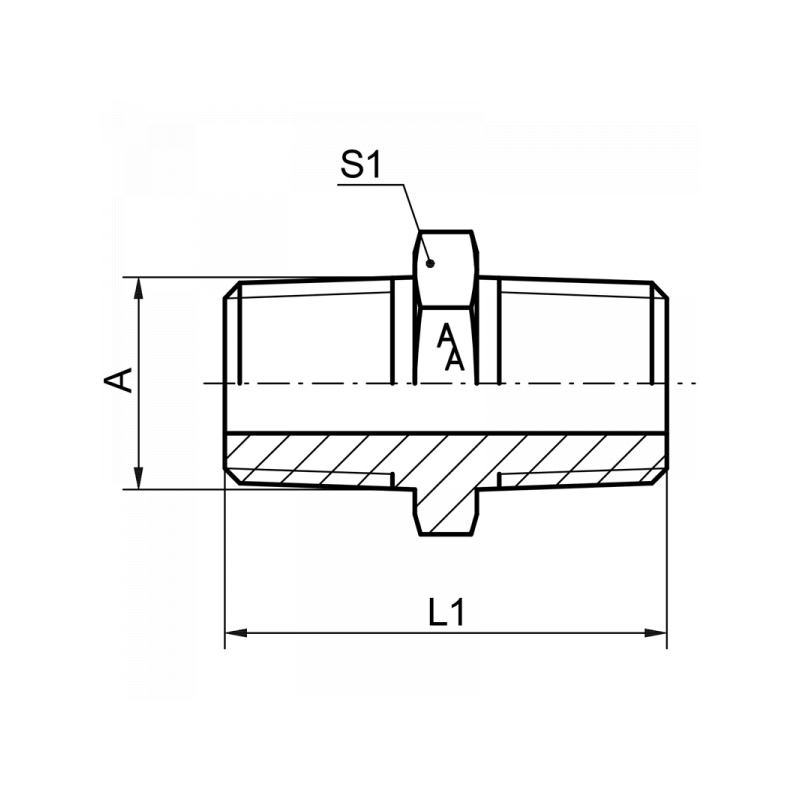

A PN / Bar L1 / mm S1 Material Art.Nr. PDF
1/8NPT 630 28 12 1.4571 5827N01
1/4NPT 630 36 14 1.4571 5827N02
3/8NPT 630 36 19 1.4571 5827N03
1/2NPT 630 48 27 1.4571 5827N04
3/4NPT 630 50 32 1.4571 5827N06
1NPT 400 62 36 1.4571 5827N08
1 1/4NPT 400 68 46 1.4571 5827N10
1 1/2NPT 400 68 50 1.4571 5827N12
2NPT 315 68 65 1.4571 5827N16
