Schneidringverschraubungen

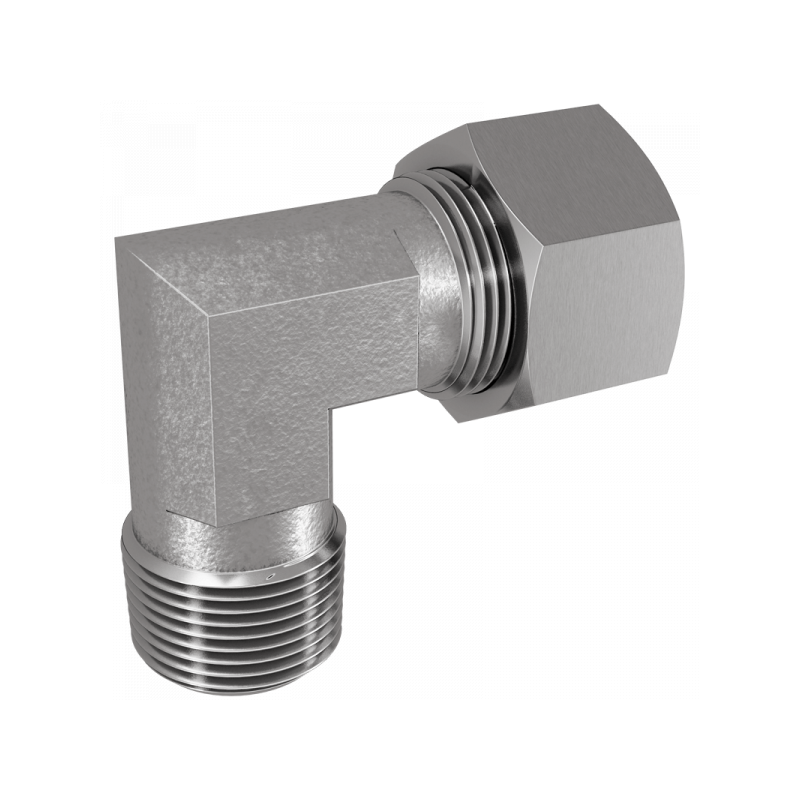

Winkel-Einschraubverschraubungen

A	B	PN / Bar	L1 / mm	L2 / mm	L3 / mm	L4 / mm	L5 / mm	S1	S2	Material	Art.Nr.	Stutzen
1/4NPT	06	630	16	23	33	15	26	12	17	1.4571	WE06SN02	XWE06SN02
3/8NPT	06	630	18	25	35	15	28	17	17	1.4571	WE06SN03	XWE06SN03
1/2NPT	06	630	23	30	40	20	32	17	17	1.4571	WE06SN04	XWE06SN04
1/4NPT	08	630	17	24	34	15	27	14	19	1.4571	WE08SN02	XWE08SN02
3/8NPT	08	630	18	25	35	15	28	17	19	1.4571	WE08SN03	XWE08SN03
1/2NPT	08	630	23	30	40	20	34	17	19	1.4571	WE08SN04	XWE08SN04
1/4NPT	10	630	17,5	25	37	15	28	17	22	1.4571	WE10SN02	XWE10SN02
3/8NPT	10	630	17,5	25	37	15	28	17	22	1.4571	WE10SN03	XWE10SN03
1/2NPT	10	630	22,5	30	42	20	32	17	22	1.4571	WE10SN04	XWE10SN04
1/4NPT	12	630	21,5	29	41	15	29	17	24	1.4571	WE12SN02	XWE12SN02
3/8NPT	12	630	22,5	29	41	15	28	17	24	1.4571	WE12SN03	XWE12SN03
1/2NPT	12	630	22,5	30	42	20	34	17	24	1.4571	WE12SN04	XWE12SN04
1/2NPT	14	630	22	30	42	20	34	19	27	1.4571	WE14SN04	XWE14SN04
3/8NPT	16	400	23,5	32	45	15	32	24	30	1.4571	WE16SN03	XWE16SN03
1/2NPT	16	400	24,5	33	46	20	36	24	30	1.4571	WE16SN04	XWE16SN04
3/4NPT	16	400	24,5	33	46	20	37	27	30	1.4571	WE16SN06	XWE16SN06
1/2NPT	20	400	26,5	37	52	20	42	27	36	1.4571	WE20SN04	XWE20SN04
3/4NPT	20	400	26,5	37	52	20	42	27	36	1.4571	WE20SN06	XWE20SN06
1NPT	25	400	30	42	58	25	48	36	46	1.4571	WE25SN08	XWE25SN08
1 1/4NPT	30	400	35,5	49	65	26	54	41	50	1.4571	WE30SN10	XWE30SN10
1 1/2NPT	38	250	41	57	76	26	61	50	60	1.4571	WE38SN12	XWE38SN12
