Schneidringverschraubungen

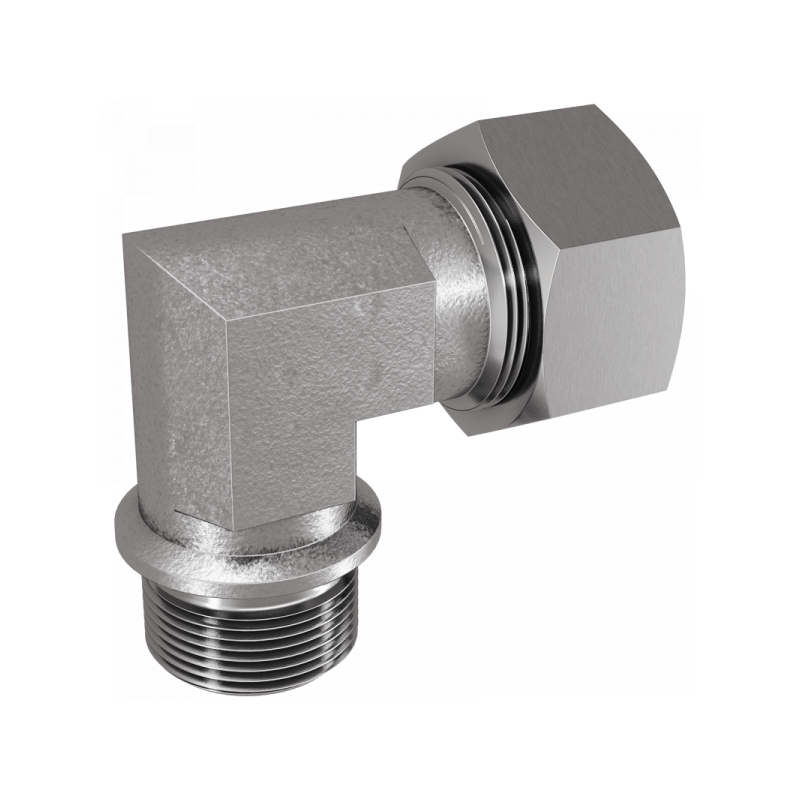

Winkel-Einschraubverschraubungen

A	B	PN / Bar	L1 / mm	L2 / mm	L3 / mm	L4 / mm	L5 / mm	S1	S2	Material	Art.Nr.	Stutzen
G3/4	22	160	27,5	35	47	16	42	27	36	1.4571	WE22L06	XWE22L06
G1	28	160	30,5	38	52	18	48	36	41	1.4571	WE28L08	XWE28L08
G1 1/4	35	160	34,5	45	61	20	54	41	50	1.4571	WE35L10	XWE35L10
G1 1/2	35	160	43,5	54	70	22	55	50	50	1.4571	WE35L12	XWE35L12
G1 1/4	42	160	39	50	66	20	60	50	60	1.4571	WE42L10	XWE42L10
G1 1/2	42	160	40	51	67	22	61	50	60	1.4571	WE42L12	XWE42L12
G3/4	20	400	26,5	37	52	16	42	27	36	1.4571	WE20S06	XWE20S06
G3/4	25	400	30	42	58	16	46	36	46	1.4571	WE25S06	XWE25S06
G1	25	400	30	42	58	18	48	36	46	1.4571	WE25S08	XWE25S08
G1	30	400	34,5	48	64	18	54	41	50	1.4571	WE30S08	XWE30S08
G1 1/4	30	400	35,5	49	65	20	54	41	50	1.4571	WE30S10	XWE30S10
G1 1/2	38	250	41	57	76	22	61	50	60	1.4571	WE38S12	XWE38S12
