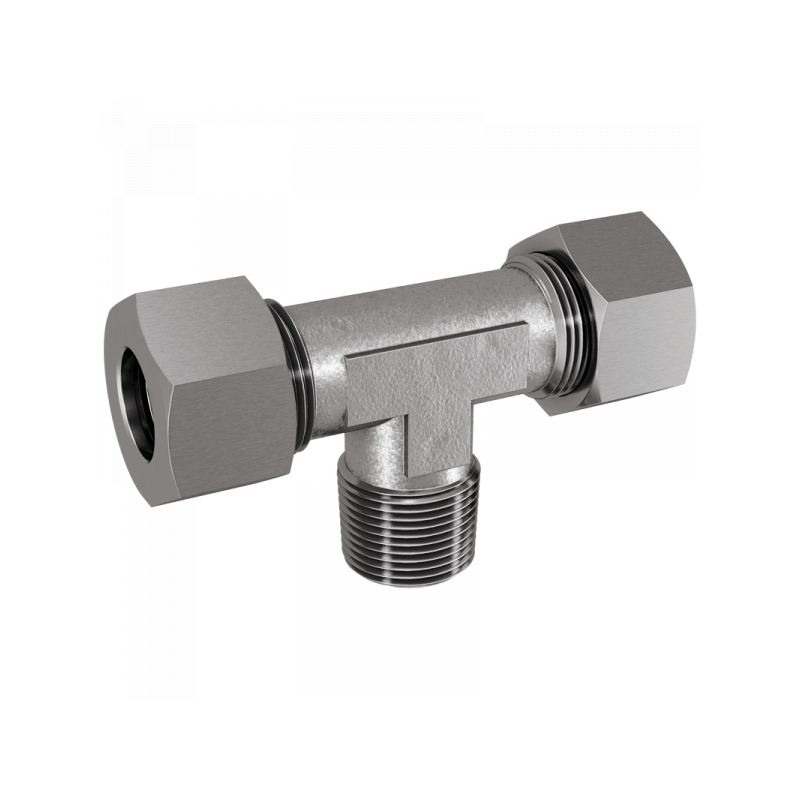

XTE-LR/SR-NPT: Verschraubungsstutzen
| A | B | PN / Bar | Material | Art.Nr. | |
|---|---|---|---|---|---|
| 1/8NPT | 06 | 315 | 1.4571 | XTE06LN01 | |
| 1/8NPT | 06 | 315 | 1.4571 | XTE06LN01 | |
| 1/4NPT | 08 | 315 | 1.4571 | XTE08LN02 | |
| 1/4NPT | 08 | 315 | 1.4571 | XTE08LN02 | |
| 1/4NPT | 10 | 315 | 1.4571 | XTE10LN02 | |
| 1/4NPT | 10 | 315 | 1.4571 | XTE10LN02 | |
| 3/8NPT | 12 | 315 | 1.4571 | XTE12LN03 | |
| 3/8NPT | 12 | 315 | 1.4571 | XTE12LN03 | |
| 1/2NPT | 12 | 315 | 1.4571 | XTE12LN04 | |
| 1/2NPT | 12 | 315 | 1.4571 | XTE12LN04 | |
| 1/2NPT | 15 | 315 | 1.4571 | XTE15LN04 | |
| 1/2NPT | 15 | 315 | 1.4571 | XTE15LN04 | |
| 1/2NPT | 18 | 315 | 1.4571 | XTE18LN04 | |
| 1/2NPT | 18 | 315 | 1.4571 | XTE18LN04 | |
| 3/4NPT | 22 | 160 | 1.4571 | XTE22LN06 | |
| 3/4NPT | 22 | 160 | 1.4571 | XTE22LN06 | |
| 1NPT | 28 | 160 | 1.4571 | XTE28LN08 | |
| 1NPT | 28 | 160 | 1.4571 | XTE28LN08 | |
| 1 1/4NPT | 35 | 160 | 1.4571 | XTE35LN10 | |
| 1 1/4NPT | 35 | 160 | 1.4571 | XTE35LN10 | |
| 1 1/2NPT | 42 | 160 | 1.4571 | XTE42LN12 | |
| 1 1/2NPT | 42 | 160 | 1.4571 | XTE42LN12 | |
| 1/4NPT | 06 | 630 | 1.4571 | XTE06SN02 | |
| 1/4NPT | 06 | 630 | 1.4571 | XTE06SN02 | |
| 1/4NPT | 08 | 630 | 1.4571 | XTE08SN02 | |
| 1/4NPT | 08 | 630 | 1.4571 | XTE08SN02 | |
| 3/8NPT | 10 | 630 | 1.4571 | XTE10SN03 | |
| 3/8NPT | 10 | 630 | 1.4571 | XTE10SN03 | |
| 3/8NPT | 12 | 630 | 1.4571 | XTE12SN03 | |
| 3/8NPT | 12 | 630 | 1.4571 | XTE12SN03 | |
| 1/2NPT | 14 | 630 | 1.4571 | XTE14SN04 | |
| 1/2NPT | 14 | 630 | 1.4571 | XTE14SN04 | |
| 1/2NPT | 16 | 400 | 1.4571 | XTE16SN04 | |
| 1/2NPT | 16 | 400 | 1.4571 | XTE16SN04 | |
| 3/4NPT | 20 | 400 | 1.4571 | XTE20SN06 | |
| 3/4NPT | 20 | 400 | 1.4571 | XTE20SN06 | |
| 1NPT | 25 | 400 | 1.4571 | XTE25SN08 | |
| 1NPT | 25 | 400 | 1.4571 | XTE25SN08 | |
| 1 1/4NPT | 30 | 400 | 1.4571 | XTE30SN10 | |
| 1 1/4NPT | 30 | 400 | 1.4571 | XTE30SN10 | |
| 1 1/2NPT | 38 | 250 | 1.4571 | XTE38SN12 | |
| 1 1/2NPT | 38 | 250 | 1.4571 | XTE38SN12 |
