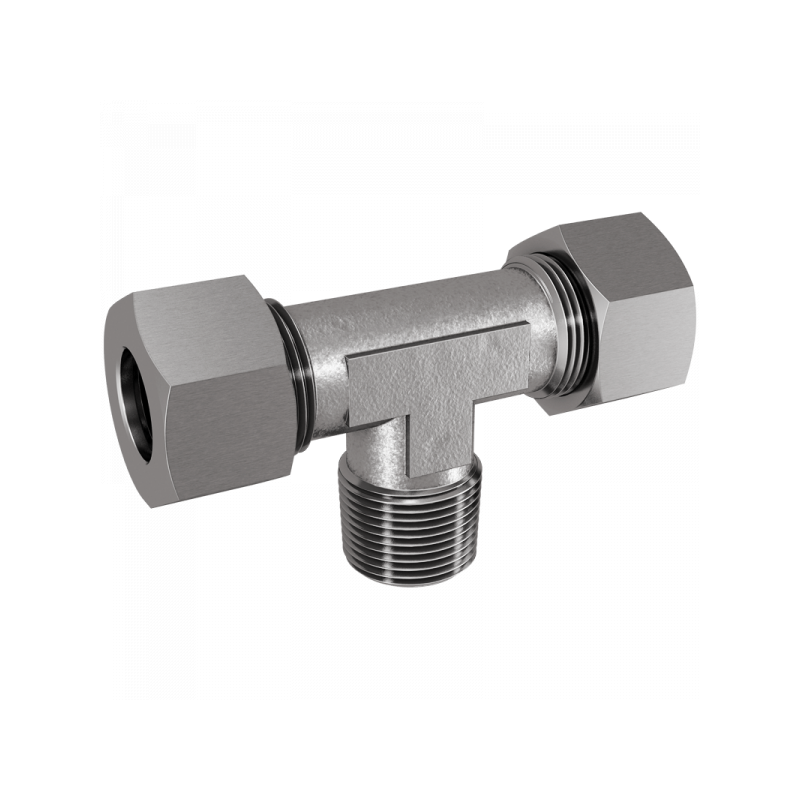

TE-LR/SR: T-Einschraubverschraubung, Einschraubgewinde BSPP mit Dichtkante Form B, leichte + schwere Reihe

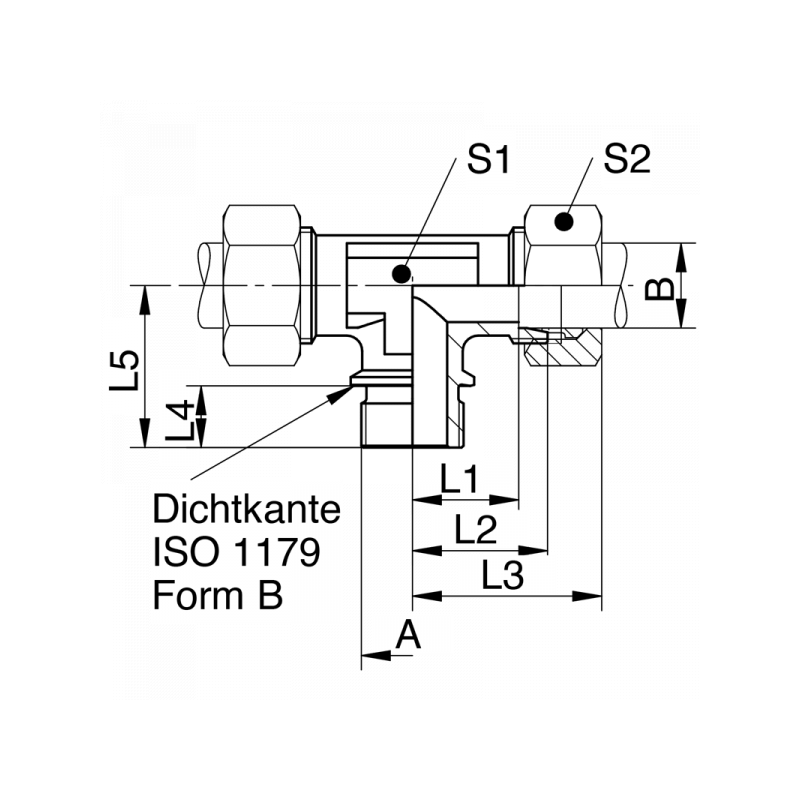

| A | B | PN / Bar | L1 / mm | L2 / mm | L3 / mm | L4 / mm | L5 / mm | S1 | S2 | Material | Art.Nr. | Stutzen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G3/4 | 22 | 160 | 27,5 | 35 | 47 | 16 | 26 | 27 | 36 | 1.4571 | TE22L06 | XTE22L06 | |
| G1 | 28 | 160 | 30,5 | 38 | 52 | 18 | 30 | 36 | 41 | 1.4571 | TE28L08 | XTE28L08 | |
| G1 1/4 | 35 | 160 | 34,5 | 45 | 61 | 20 | 34 | 41 | 50 | 1.4571 | TE35L10 | XTE35L10 | |
| G1 1/2 | 42 | 160 | 40 | 51 | 67 | 22 | 39 | 50 | 60 | 1.4571 | TE42L12 | XTE42L12 | |
| G3/4 | 20 | 400 | 26,5 | 37 | 52 | 16 | 26 | 27 | 36 | 1.4571 | TE20S06 | XTE20S06 | |
| G1 | 25 | 400 | 30 | 42 | 58 | 18 | 30 | 36 | 46 | 1.4571 | TE25S08 | XTE25S08 | |
| G1 1/4 | 30 | 400 | 35,5 | 49 | 65 | 20 | 34 | 41 | 50 | 1.4571 | TE30S10 | XTE30S10 | |
| G1 1/2 | 38 | 250 | 41 | 55 | 74 | 22 | 39 | 50 | 60 | 1.4571 | TE38S12 | XTE38S12 |
