SFS-4SH: Pressnippel SFS, mit Flansch 6000 PSI, schwere Reihe
| A | B / mm | DN | L1 / mm | L2 / mm | C / mm | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|
| 3/4-41,3 | 19,6 | 20 | 109 | 62 | 14,8 | 1.4571 | 8760DN20 | |
| 1-47,6 | 26 | 25 | 121 | 65 | 18,0 | 1.4571 | 8760DN25 | |
| 1 1/4-54,0 | 26 | 25 | 123 | 67,5 | 18,0 | 1.4571 | 8760DN25G10 | |
| 1 1/4-54,0 | 32,2 | 32 | 154 | 87 | 24,0 | 1.4571 | 8760DN32 | |
| 1 1/2-63,5 | 32,2 | 32 | 160 | 93 | 24,0 | 1.4571 | 8760DN32G12 | |
| 1 1/2-63,5 | 38,7 | 40 | 166 | 94 | 28,0 | 1.4571 | 8760DN40G12 | |
| 2-79,4 | 38,7 | 40 | 176 | 104 | 28,0 | 1.4571 | 8760DN40G16 | |
| 2-79,4 | 51,6 | 50 | 181 | 111 | 40,0 | 1.4571 | 8760DN50 |
Verwandte Artikel
8000
DKOS-4SH

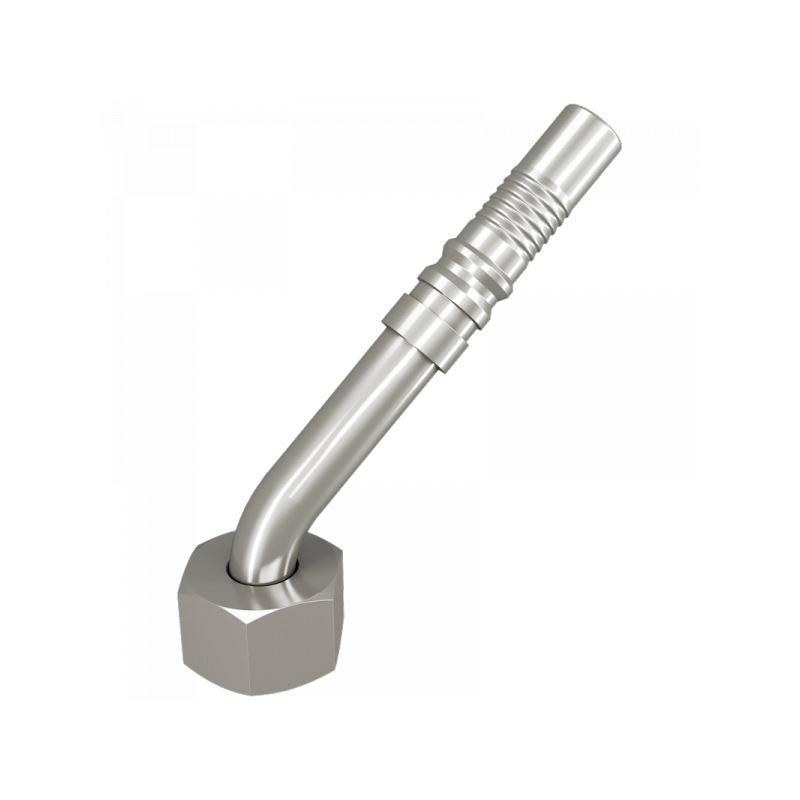

DKOS-4SH-45°
