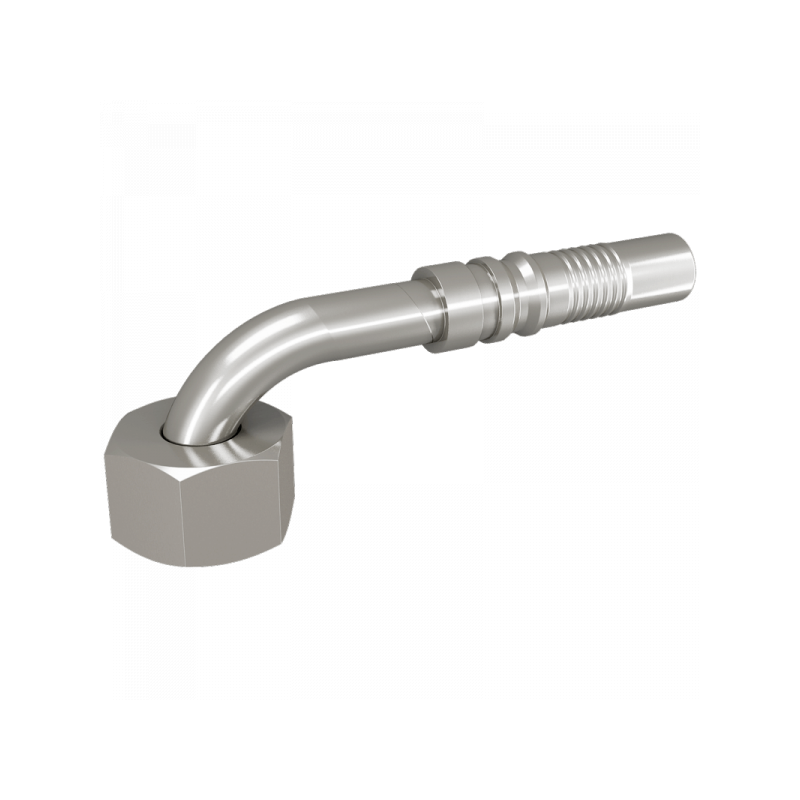

DKOS-4SH-90°: Pressnippel DKOS 90°, Dichtkegel mit 24° Konus und O-Ring, schwere Reihe, Dichtkopf metrisch
| A | B / mm | DN | L1 / mm | L2 / mm | L3 / mm | S1 | C / mm | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|---|---|
| M36x2 | 19,7 | 20 | 133,5 | 86,5 | 69,0 | 46 | 14,0 | 1.4571 | 8202DN20M36 | |
| M36x2 | 26 | 25 | 157 | 101,5 | 88,0 | 46 | 20,0 | 1.4571 | 8202DN25M36 | |
| M42x2 | 26 | 25 | 159 | 103 | 72,5 | 50 | 20,0 | 1.4571 | 8202DN25M42 | |
| M52x2 | 32,2 | 32 | 181,5 | 114,5 | 89,0 | 60 | 24,0 | 1.4571 | 8202DN32M52 | |
| M52x2 | 38,7 | 40 | 202 | 130 | 103,0 | 60 | 30,0 | 1.4571 | 8202DN40M52 |
Verwandte Artikel
8000

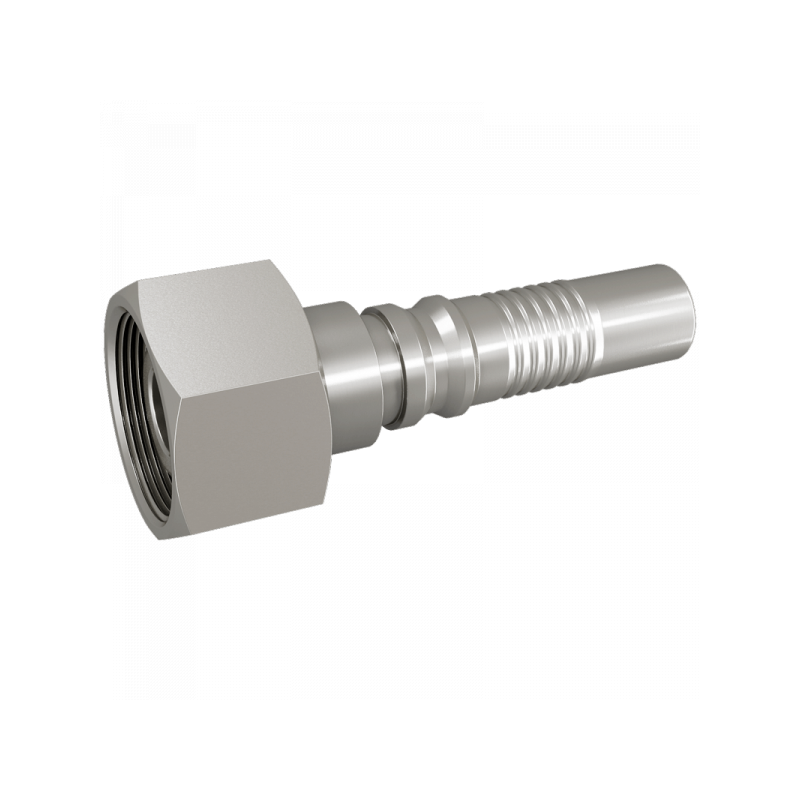

DKOS-4SH
