Schneidringverschraubungen

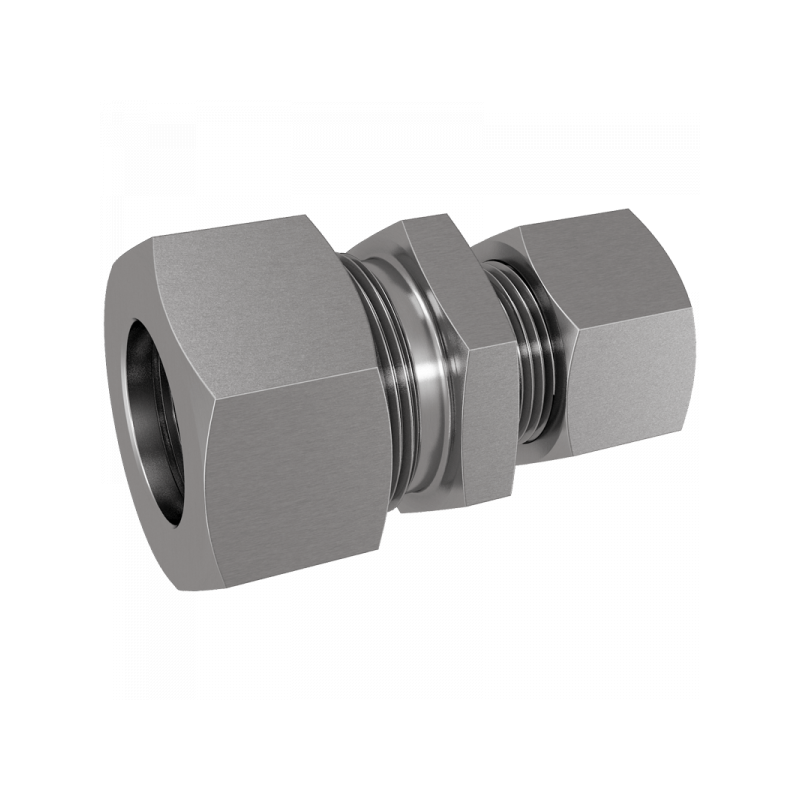

Reduzierverschraubungen

A	B	PN / Bar	L1 / mm	L2 / mm	L3 / mm	S1	S2	S3	Material	Art.Nr.	Stutzen
08	06	630	18	32	52	17	17	19	1.4571	GR0806S	XGR0806S
10	06	630	17,5	32	54	19	17	22	1.4571	GR1006S	XGR1006S
10	08	630	17,5	32	54	19	19	22	1.4571	GR1008S	XGR1008S
12	06	630	19,5	34	56	22	17	24	1.4571	GR1206S	XGR1206S
12	08	630	19,5	34	56	22	19	24	1.4571	GR1208S	XGR1208S
12	10	630	19	34	58	22	22	24	1.4571	GR1210S	XGR1210S
14	08	630	20	35	57	24	19	27	1.4571	GR1408S	XGR1408S
14	10	630	20,5	36	60	24	22	27	1.4571	GR1410S	XGR1410S
14	12	630	20,5	36	60	24	24	27	1.4571	GR1412S	XGR1412S
16	06	400	20,5	36	59	27	17	30	1.4571	GR1606S	XGR1606S
16	08	400	20,5	36	59	27	19	30	1.4571	GR1608S	XGR1608S
16	10	400	20	36	61	27	22	30	1.4571	GR1610S	XGR1610S
16	12	400	20	36	61	27	24	30	1.4571	GR1612S	XGR1612S
16	14	400	21,5	36	61	27	27	30	1.4571	GR1614S	XGR1614S
20	10	400	22	40	67	32	22	36	1.4571	GR2010S	XGR2010S
20	12	400	22	40	67	32	24	36	1.4571	GR2012S	XGR2012S
20	14	400	21,5	40	67	32	27	30	1.4571	GR2014S	XGR2014S
20	16	400	23	42	70	32	30	36	1.4571	GR2016S	XGR2016S
25	10	400	23,5	43	71	41	22	46	1.4571	GR2510S	XGR2510S
25	12	400	23,5	43	71	41	24	46	1.4571	GR2512S	XGR2512S
25	14	400	26	46	74	41	27	46	1.4571	GR2514S	XGR2514S
25	16	400	25,5	46	75	41	30	46	1.4571	GR2516S	XGR2516S
25	20	400	23,5	46	77	41	36	46	1.4571	GR2520S	XGR2520S
30	12	400	25	46	74	46	24	50	1.4571	GR3012S	XGR3012S
30	14	400	24,5	46	74	46	27	50	1.4571	GR3014S	XGR3014S
30	16	400	27	49	78	46	30	50	1.4571	GR3016S	XGR3016S
30	20	400	26	50	81	46	36	50	1.4571	GR3020S	XGR3020S
30	25	400	26,5	52	84	46	46	50	1.4571	GR3025S	XGR3025S
38	16	250	27,5	52	84	55	30	60	1.4571	GR3816S	XGR3816S
38	20	250	30	54	88	55	36	60	1.4571	GR3820S	XGR3820S
38	25	250	29	57	92	55	46	60	1.4571	GR3825S	XGR3825S
38	30	250	29,5	59	94	55	50	60	1.4571	GR3830S	XGR3830S
