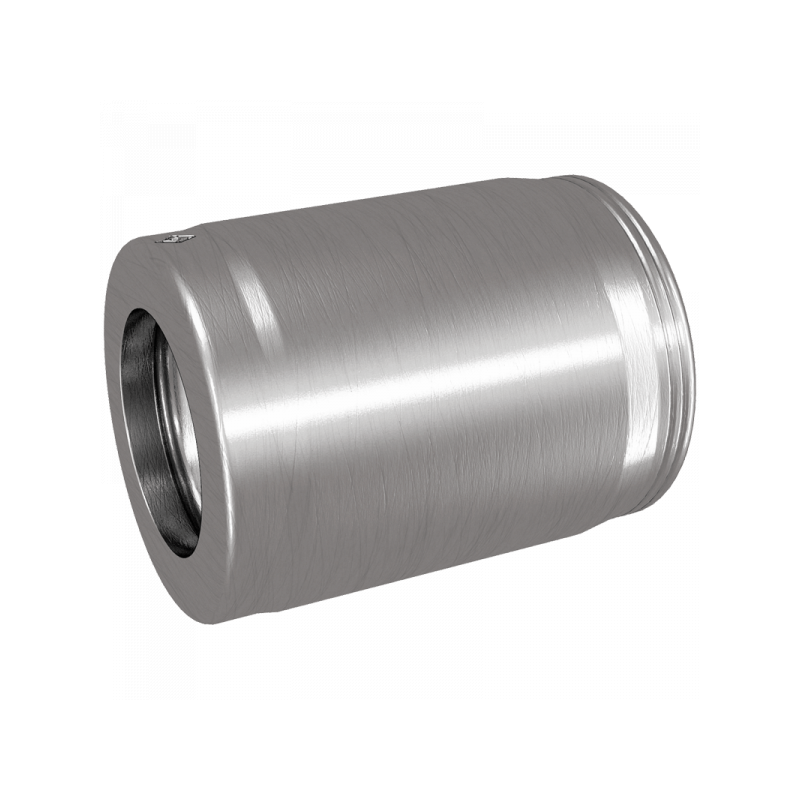

4020:
| A / mm | B / mm | L1 / mm | L2 / mm | Material | DN | C / mm | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|
| 11,0 | 20,0 | 31,0 | 2,5 | 1.4571 | 6 | 13,2 | 4020DN06 | |
| 12,6 | 20,0 | 31,0 | 2,5 | 1.4571 | 8 | 15,5 | 4020DN08 | |
| 14,1 | 23,6 | 33,0 | 2,5 | 1.4571 | 10 | 16,6 | 4020DN10 | |
| 17,6 | 27,0 | 35,0 | 2,5 | 1.4571 | 12 | 19,5 | 4020DN12 | |
| 21,6 | 31,0 | 38,0 | 2,5 | 1.4571 | 16 | 23,0 | 4020DN16 | |
| 24,5 | 35,0 | 44,0 | 3,0 | 1.4571 | 20 | 26,8 | 4020DN20 | |
| 30,4 | 42,0 | 52,0 | 3,7 | 1.4571 | 25 | 34,1 | 4020DN25 | |
| 44,4 | 62,0 | 68,0 | 4,3 | 1.4571 | 40 | 51,3 | 4020DN40 | |
| 56,7 | 75,0 | 80,0 | 4,3 | 1.4571 | 50 | 64,0 | 4020DN50 |
