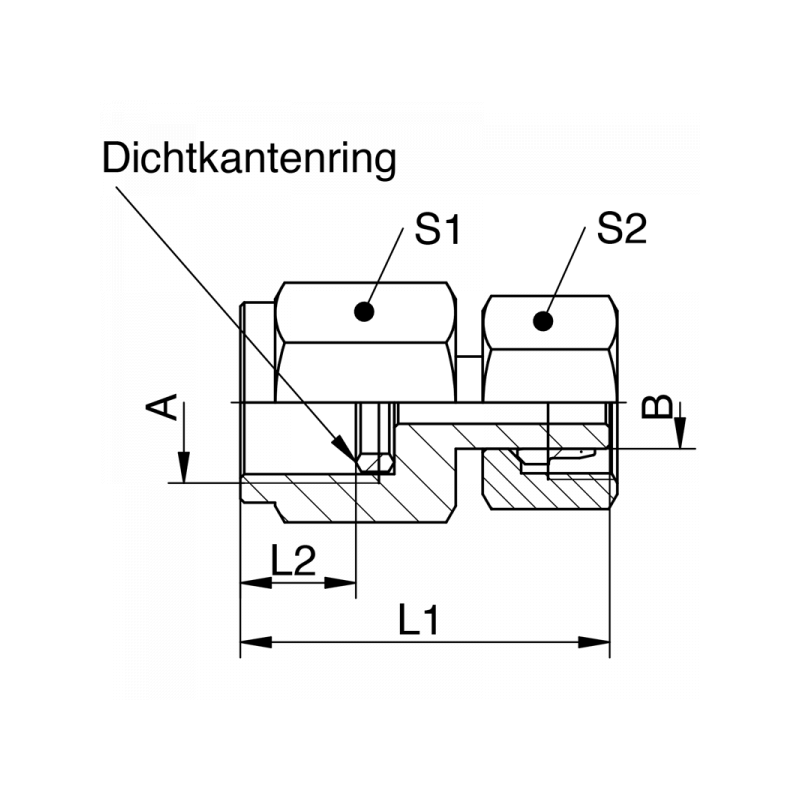

MAVEV-L/S: Manometer-Aufschraubverschraubung mit Schaft, Aufschraubgewinde BSPP, leichte + schwere Reihe
| A | B | PN / Bar | L1 / mm | L2 / mm | S1 | S2 | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|---|
| G1/4 | 06 | 315 | 38 | 10 | 19 | 14 | 1.4571 | MAVEV06L02 | |
| G1/4 | 08 | 315 | 38 | 10 | 19 | 17 | 1.4571 | MAVEV08L02 | |
| G1/4 | 10 | 315 | 40 | 10 | 19 | 19 | 1.4571 | MAVEV10L02 | |
| G1/2 | 10 | 315 | 48 | 15 | 27 | 19 | 1.4571 | MAVEV10L04 | |
| G1/4 | 12 | 315 | 41 | 10 | 19 | 22 | 1.4571 | MAVEV12L02 | |
| G1/2 | 12 | 315 | 48 | 15 | 27 | 22 | 1.4571 | MAVEV12L04 | |
| G1/2 | 06 | 630 | 45 | 15 | 27 | 17 | 1.4571 | MAVEV06S04 | |
| G1/2 | 08 | 630 | 45 | 15 | 27 | 19 | 1.4571 | MAVEV08S04 | |
| G1/2 | 10 | 630 | 48 | 15 | 27 | 22 | 1.4571 | MAVEV10S04 | |
| G1/2 | 12 | 630 | 48 | 15 | 27 | 24 | 1.4571 | MAVEV12S04 |
Verwandte Artikel

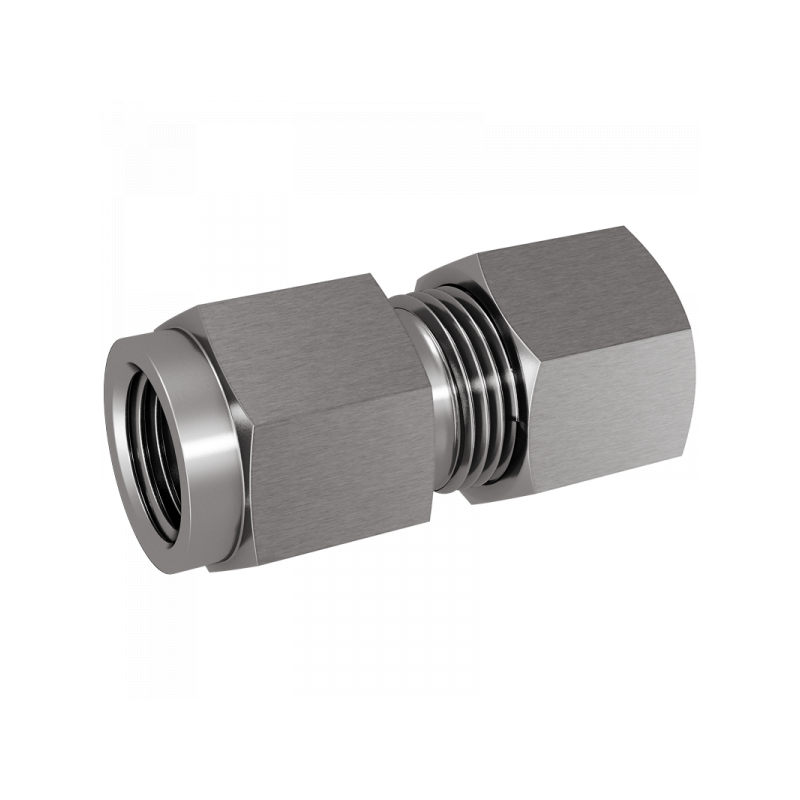

MAV-L/S
