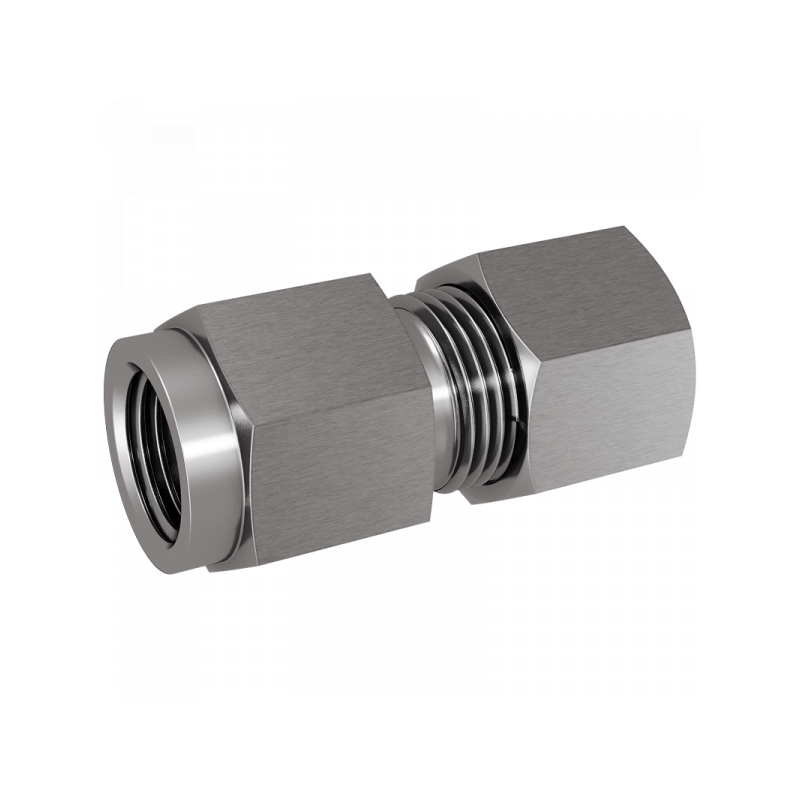

MAV-L/S: Manometer-Aufschraubverschraubung, Aufschraubgewinde BSPP, leichte + schwere Reihe

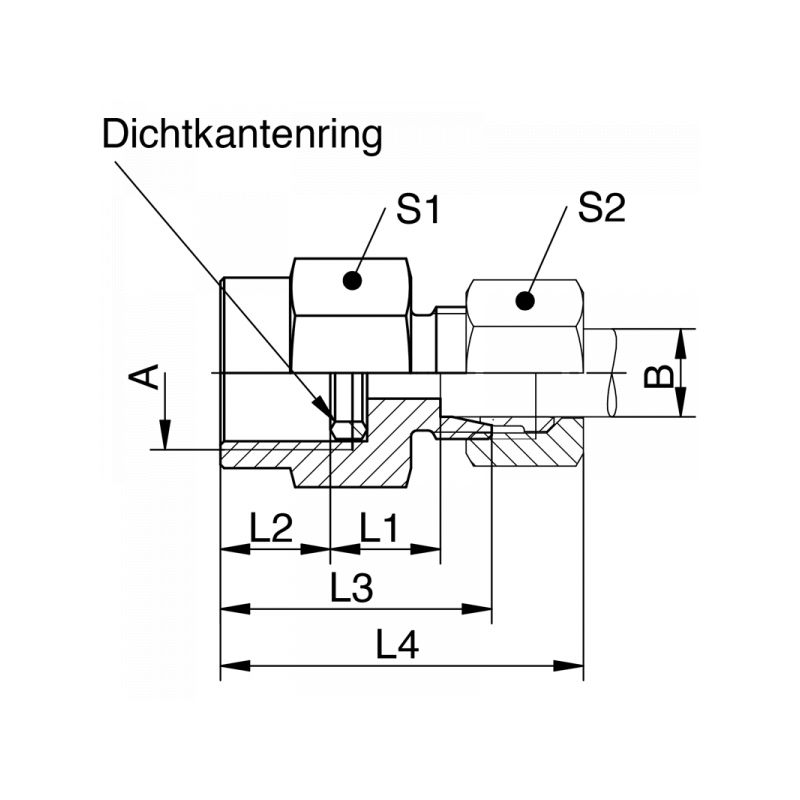

| A | B | PN / Bar | L1 / mm | L2 / mm | L3 / mm | L4 / mm | S1 | S2 | Material | Art.Nr. | Stutzen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G1/4 | 06 | 315 | 12 | 10 | 29 | 39 | 19 | 14 | 1.4571 | MAV06L02 | XMAV06L02 | |
| G1/2 | 06 | 315 | 16 | 15 | 38 | 48 | 27 | 14 | 1.4571 | MAV06L04 | XMAV06L04 | |
| G1/4 | 08 | 315 | 12 | 10 | 29 | 39 | 19 | 17 | 1.4571 | MAV08L02 | XMAV08L02 | |
| G1/2 | 08 | 315 | 16 | 15 | 38 | 48 | 27 | 17 | 1.4571 | MAV08L04 | XMAV08L04 | |
| G1/4 | 10 | 315 | 13 | 10 | 30 | 41 | 19 | 19 | 1.4571 | MAV10L02 | XMAV10L02 | |
| G1/2 | 10 | 315 | 16 | 15 | 38 | 49 | 27 | 19 | 1.4571 | MAV10L04 | XMAV10L04 | |
| G1/4 | 12 | 315 | 13 | 10 | 30 | 41 | 19 | 22 | 1.4571 | MAV12L02 | XMAV12L02 | |
| G1/2 | 12 | 315 | 16 | 15 | 38 | 49 | 27 | 22 | 1.4571 | MAV12L04 | XMAV12L04 | |
| G1/2 | 06 | 630 | 16 | 15 | 38 | 48 | 27 | 17 | 1.4571 | MAV06S04 | XMAV06S04 | |
| G1/2 | 08 | 630 | 16 | 15 | 38 | 48 | 27 | 19 | 1.4571 | MAV08S04 | XMAV08S04 | |
| G1/2 | 10 | 630 | 15,5 | 15 | 38 | 49 | 27 | 22 | 1.4571 | MAV10S04 | XMAV10S04 | |
| G1/2 | 12 | 630 | 15,5 | 15 | 38 | 49 | 27 | 24 | 1.4571 | MAV12S04 | XMAV12S04 |
Verwandte Artikel

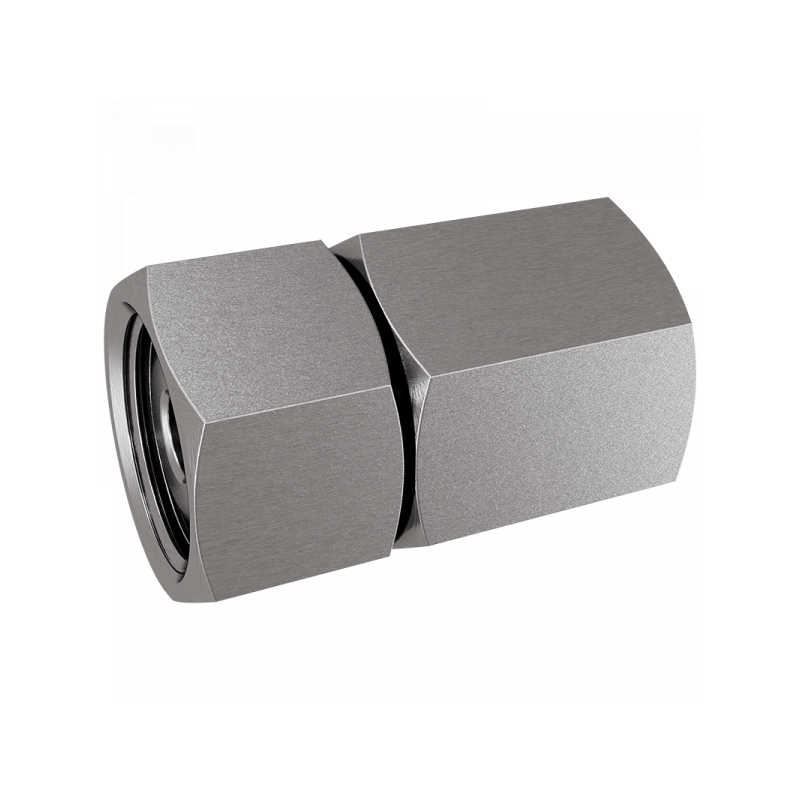

MAVD-L/S
