Schneidringverschraubungen

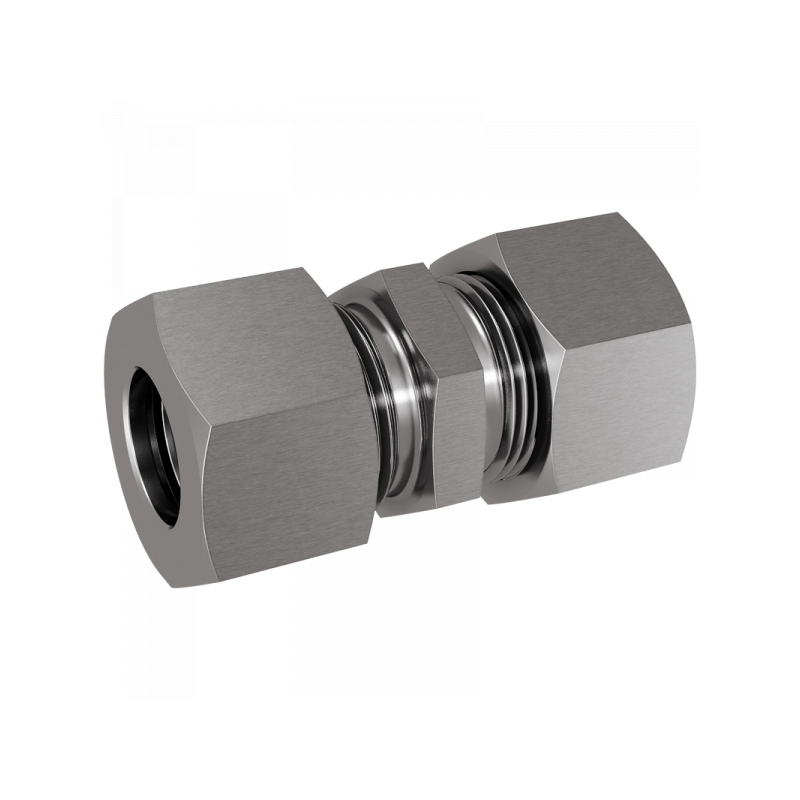

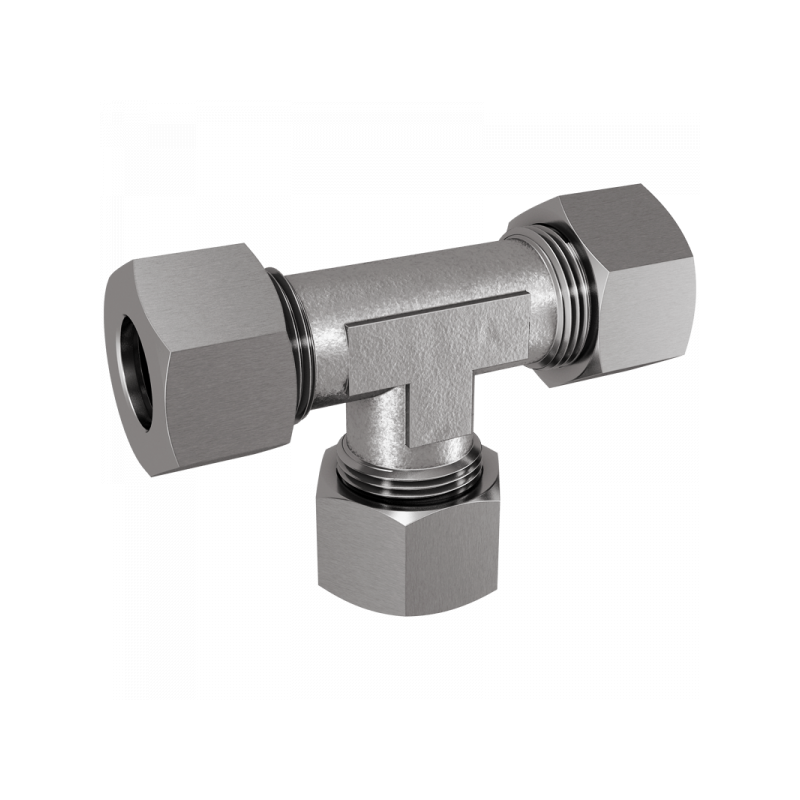

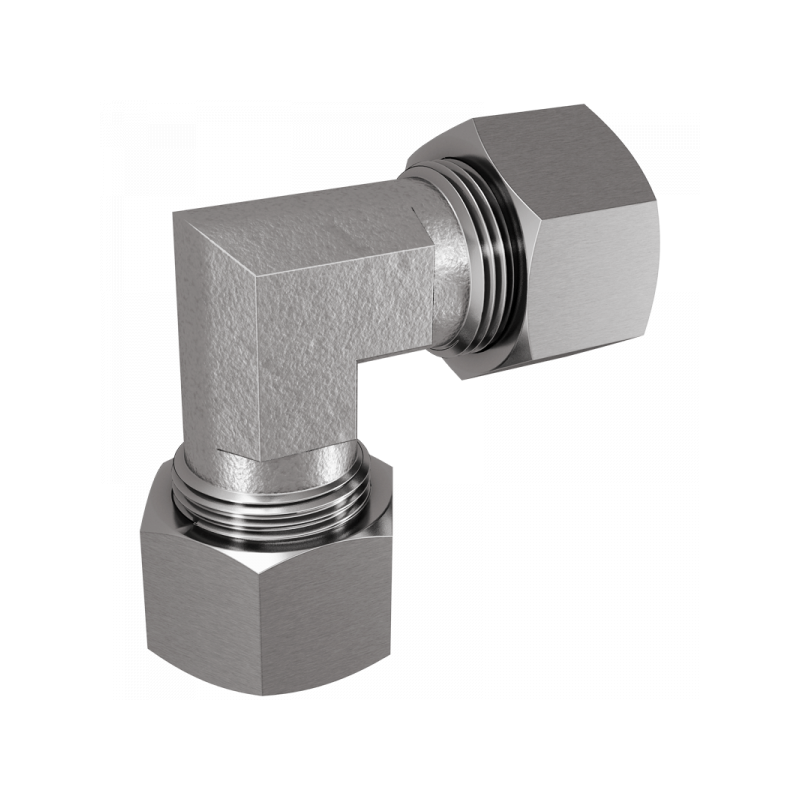

Gerade, Winkel- und T-Verschraubungen

A	PN / Bar	L1 / mm	L2 / mm	L3 / mm	S1	S2	Material	Art.Nr.	Stutzen
06	315	10	24	44	12	14	1.4571	G06L	XG06L
08	315	11	25	45	14	17	1.4571	G08L	XG08L
10	315	13	27	49	17	19	1.4571	G10L	XG10L
12	315	14	28	50	19	22	1.4571	G12L	XG12L
15	315	16	30	52	24	27	1.4571	G15L	XG15L
18	315	16	31	55	27	32	1.4571	G18L	XG18L
22	160	20	35	59	32	36	1.4571	G22L	XG22L
28	160	21	36	64	41	41	1.4571	G28L	XG28L
35	160	20	41	73	46	50	1.4571	G35L	XG35L
42	160	21	43	75	55	60	1.4571	G42L	XG42L
06	630	16	30	50	14	17	1.4571	G06S	XG06S
08	630	18	32	52	17	19	1.4571	G08S	XG08S
10	630	17	32	56	19	22	1.4571	G10S	XG10S
12	630	19	34	58	22	24	1.4571	G12S	XG12S
14	630	22	38	62	24	27	1.4571	G14S	XG14S
16	400	21	38	64	27	30	1.4571	G16S	XG16S
20	400	23	44	74	32	36	1.4571	G20S	XG20S
25	400	26	50	82	41	46	1.4571	G25S	XG25S
30	400	27	54	86	46	50	1.4571	G30S	XG30S
38	250	29	61	99	55	60	1.4571	G38S	XG38S
