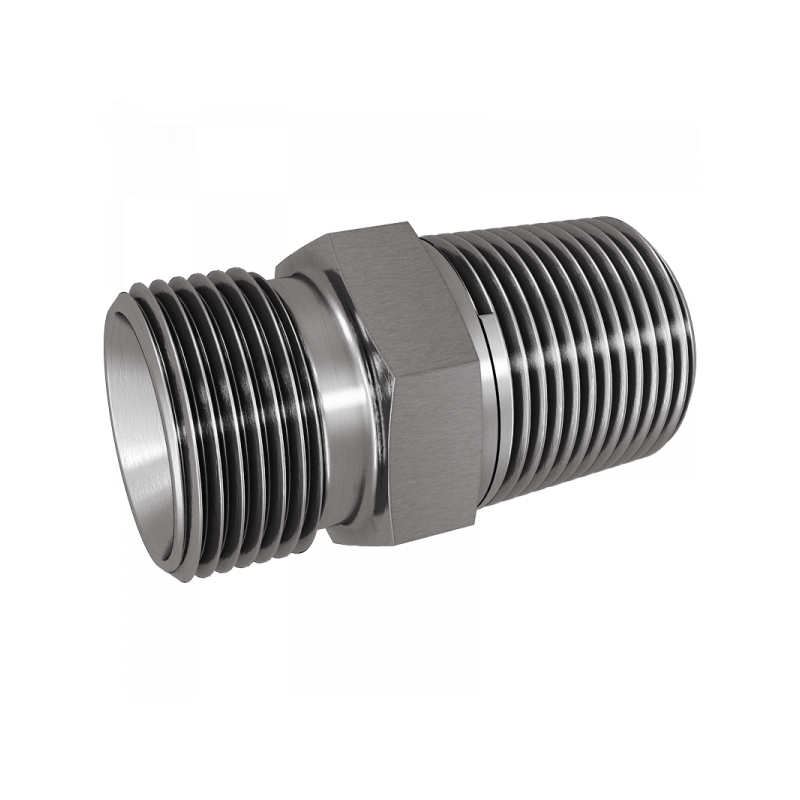

Fig. 5815: Verbindungsstutzen, BSPP Gewinde mit 60° Konus x Einschraubgewinde NPT
| A | B | DN | PN / Bar | L1 / mm | S1 | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|
| G1/4 | 1/4NPT | 6 | 400 | 32 | 17 | 1.4571 | 581502 | |
| G3/8 | 3/8NPT | 8 | 400 | 33 | 17 | 1.4571 | 581503 | |
| G1/2 | 1/2NPT | 12 | 400 | 41 | 22 | 1.4571 | 581504 | |
| G3/4 | 3/4NPT | 16 | 400 | 44 | 27 | 1.4571 | 581506 | |
| G1 | 1NPT | 18 | 400 | 53 | 36 | 1.4571 | 581508 | |
| G1 1/4 | 1 1/4NPT | 25 | 200 | 58 | 46 | 1.4571 | 581510 | |
| G1 1/2 | 1 1/2NPT | 32 | 200 | 61 | 50 | 1.4571 | 581512 | |
| G2 | 2NPT | 40 | 100 | 71 | 65 | 1.4571 | 581516 |
