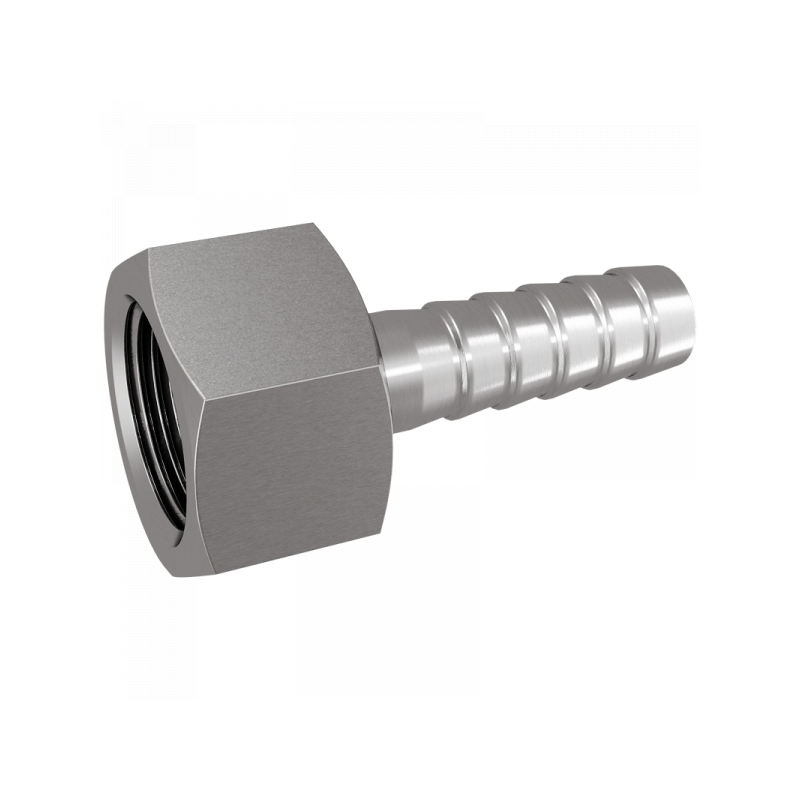

Fig. 5853: Schlauchtülle mit loser Überwurfmutter, BSPP Gewinde, flachdichtend
| A | B / mm | L1 / mm | S1 | Material | Art.Nr. | |
|---|---|---|---|---|---|---|
| G1/4 | 6 | 25 | 19 | 1.4571 | 585302063 | |
| G1/4 | 7 | 31 | 19 | 1.4571 | 585302073 | |
| G1/4 | 8 | 31 | 19 | 1.4571 | 585302083 | |
| G1/4 | 9 | 31 | 19 | 1.4571 | 585302093 | |
| G3/8 | 8 | 39 | 19 | 1.4571 | 585303083 | |
| G3/8 | 9 | 40 | 19 | 1.4571 | 585303093 | |
| G3/8 | 11 | 40 | 19 | 1.4571 | 585303113 | |
| G1/2 | 6 | 32 | 27 | 1.4571 | 585304063 | |
| G1/2 | 8 | 32 | 27 | 1.4571 | 585304083 | |
| G1/2 | 9 | 43 | 27 | 1.4571 | 585304093 | |
| G1/2 | 11 | 43 | 27 | 1.4571 | 585304113 | |
| G1/2 | 13 | 43 | 27 | 1.4571 | 585304133 | |
| G1/2 | 15 | 43 | 27 | 1.4571 | 585304153 | |
| G1/2 | 16 | 43 | 27 | 1.4571 | 585304163 | |
| G3/4 | 13 | 45 | 32 | 1.4571 | 585306133 | |
| G3/4 | 16 | 45 | 32 | 1.4571 | 585306163 | |
| G3/4 | 19 | 44,5 | 32 | 1.4571 | 585306193 | |
| G3/4 | 20 | 45 | 32 | 1.4571 | 585306203 | |
| G1 | 13 | 45 | 41 | 1.4571 | 585308133 | |
| G1 | 19 | 45 | 41 | 1.4571 | 585308193 | |
| G1 | 25 | 45 | 41 | 1.4571 | 585308253 | |
| G1 1/4 | 25 | 50 | 50 | 1.4571 | 585310253 | |
| G1 1/4 | 32 | 62 | 50 | 1.4571 | 585310323 | |
| G1 1/2 | 38 | 62 | 55 | 1.4571 | 585312383 | |
| G2 | 50 | 64 | 70 | 1.4571 | 585316503 |
Verwandte Artikel
Fig. 5812

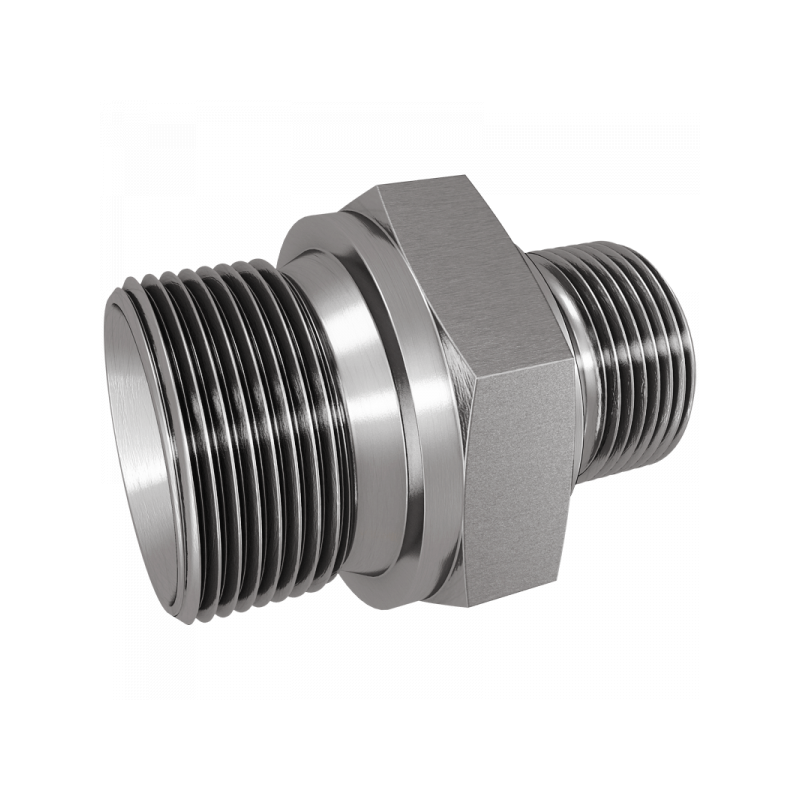

Fig. 5813

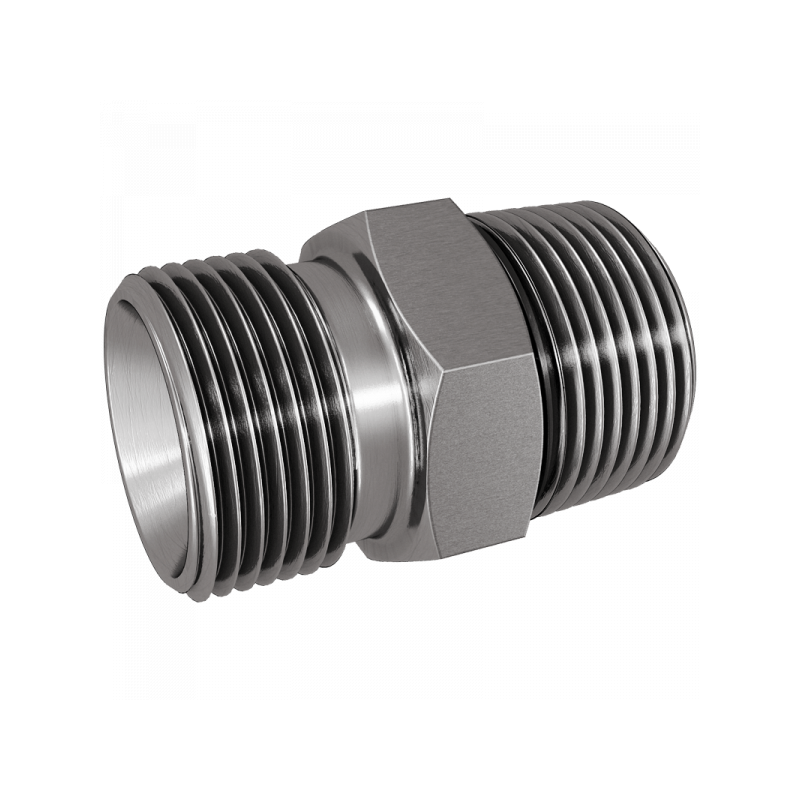

Fig. 5814
