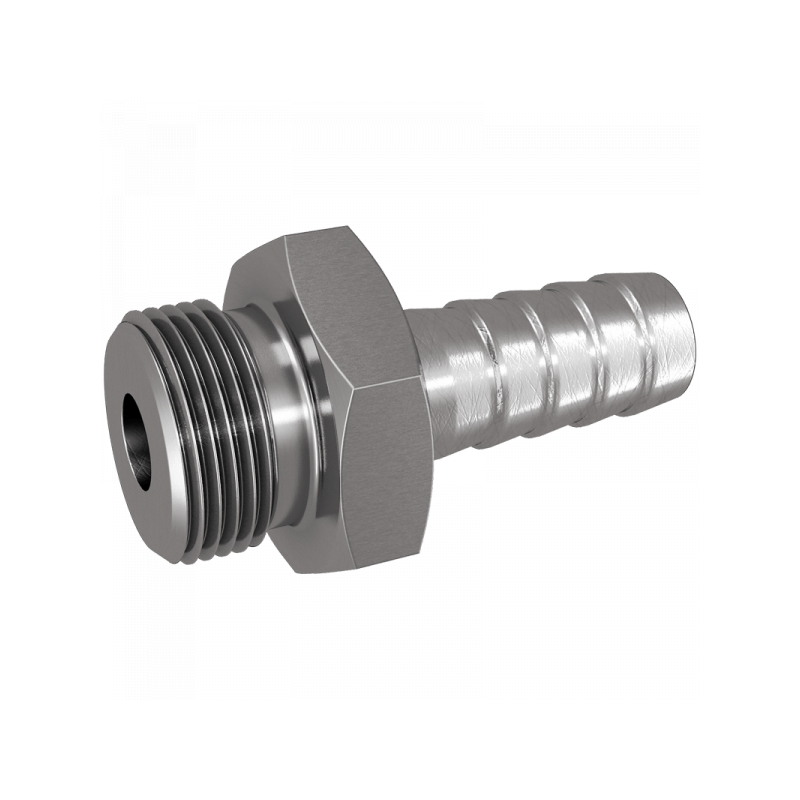

Fig. 5850: Schlauchtülle mit BSPP Gewinde
| A | B / mm | L1 / mm | S1 | Material | Art.Nr. | |
|---|---|---|---|---|---|---|
| G1/8 | 4 | 32 | 12 | 1.4571 | 585001043 | |
| G1/8 | 6 | 36 | 14 | 1.4571 | 585001063 | |
| G1/8 | 9 | 40 | 14 | 1.4571 | 585001093 | |
| G1/8 | 10 | 40 | 14 | 1.4571 | 585001103 | |
| G1/8 | 11 | 40 | 14 | 1.4571 | 585001113 | |
| G1/4 | 4 | 35 | 17 | 1.4571 | 585002043 | |
| G1/4 | 6 | 40 | 17 | 1.4571 | 585002063 | |
| G1/4 | 9 | 40 | 17 | 1.4571 | 585002093 | |
| G1/4 | 10 | 40 | 17 | 1.4571 | 585002103 | |
| G1/4 | 11 | 45 | 17 | 1.4571 | 585002113 | |
| G1/4 | 13 | 45 | 17 | 1.4571 | 585002133 | |
| G3/8 | 6 | 40 | 22 | 1.4571 | 585003063 | |
| G3/8 | 8 | 45 | 22 | 1.4571 | 585003083 | |
| G3/8 | 9 | 45 | 22 | 1.4571 | 585003093 | |
| G3/8 | 10 | 45 | 22 | 1.4571 | 585003103 | |
| G3/8 | 11 | 45 | 22 | 1.4571 | 585003113 | |
| G3/8 | 13 | 45 | 22 | 1.4571 | 585003133 | |
| G3/8 | 15 | 45 | 22 | 1.4571 | 585003153 | |
| G3/8 | 16 | 45 | 22 | 1.4571 | 585003163 | |
| G3/8 | 19 | 48 | 22 | 1.4571 | 585003193 | |
| G1/2 | 6 | 45 | 27 | 1.4571 | 585004063 | |
| G1/2 | 7 | 45 | 27 | 1.4571 | 585004073 | |
| G1/2 | 8 | 45 | 27 | 1.4571 | 585004083 | |
| G1/2 | 9 | 45 | 27 | 1.4571 | 585004093 | |
| G1/2 | 10 | 45 | 27 | 1.4571 | 585004103 | |
| G1/2 | 11 | 50 | 27 | 1.4571 | 585004113 | |
| G1/2 | 13 | 50 | 27 | 1.4571 | 585004133 | |
| G1/2 | 15 | 50 | 27 | 1.4571 | 585004153 | |
| G1/2 | 16 | 50 | 27 | 1.4571 | 585004163 | |
| G1/2 | 19 | 50 | 27 | 1.4571 | 585004193 | |
| G1/2 | 25 | 50 | 27 | 1.4571 | 585004253 | |
| G3/4 | 9 | 50 | 32 | 1.4571 | 585006093 | |
| G3/4 | 13 | 55 | 32 | 1.4571 | 585006133 | |
| G3/4 | 16 | 55 | 32 | 1.4571 | 585006163 | |
| G3/4 | 19 | 55 | 32 | 1.4571 | 585006193 | |
| G3/4 | 25 | 55 | 32 | 1.4571 | 585006253 | |
| G1 | 13 | 60 | 36 | 1.4571 | 585008133 | |
| G1 | 16 | 60 | 36 | 1.4571 | 585008163 | |
| G1 | 19 | 60 | 36 | 1.4571 | 585008193 | |
| G1 | 25 | 60 | 36 | 1.4571 | 585008253 | |
| G1 | 32 | 60 | 36 | 1.4571 | 585008323 | |
| G1 1/4 | 19 | 75 | 46 | 1.4571 | 585010193 | |
| G1 1/4 | 25 | 75 | 46 | 1.4571 | 585010253 | |
| G1 1/4 | 30 | 75 | 46 | 1.4571 | 585010303 | |
| G1 1/4 | 32 | 75 | 46 | 1.4571 | 585010323 | |
| G1 1/4 | 38 | 75 | 46 | 1.4571 | 585010383 | |
| G1 1/4 | 40 | 75 | 46 | 1.4571 | 585010403 | |
| G1 1/2 | 25 | 80 | 55 | 1.4571 | 585012253 | |
| G1 1/2 | 32 | 80 | 55 | 1.4571 | 585012323 | |
| G1 1/2 | 38 | 80 | 55 | 1.4571 | 585012383 | |
| G1 1/2 | 40 | 80 | 55 | 1.4571 | 585012403 | |
| G1 1/2 | 50 | 80 | 55 | 1.4571 | 585012503 | |
| G2 | 40 | 85 | 65 | 1.4571 | 585016403 | |
| G2 | 50 | 85 | 65 | 1.4571 | 585016503 | |
| G2 | 60 | 85 | 65 | 1.4571 | 585016603 |
