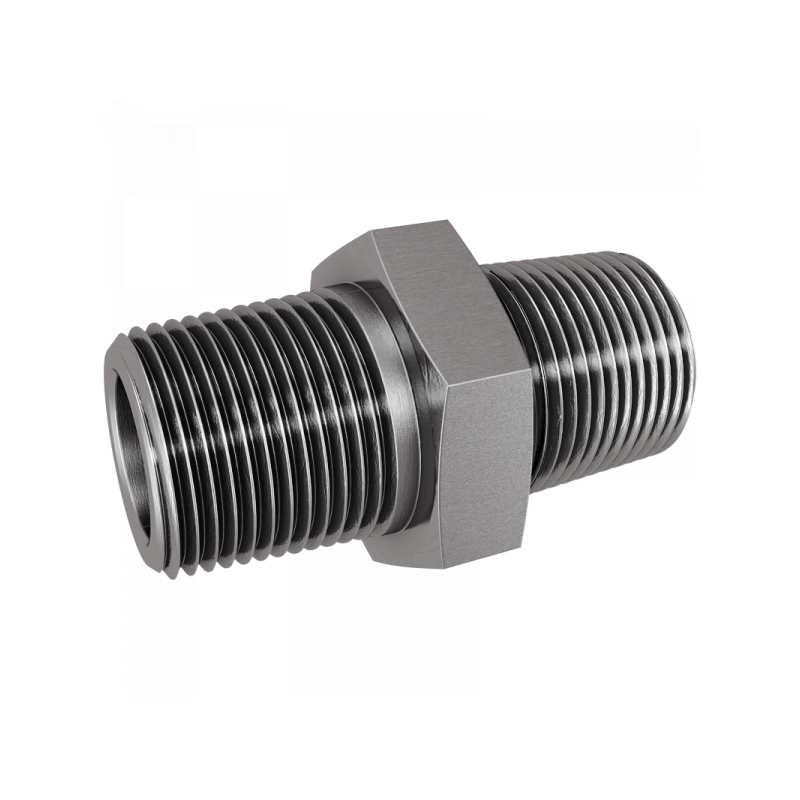

Fig. 5827: Doppelnippel, beiderseits NPT-Gewinde
| A | PN / Bar | L1 / mm | S1 | Material | Art.Nr. | |
|---|---|---|---|---|---|---|
| 1/8NPT | 630 | 28 | 12 | 1.4571 | 5827N01 | |
| 1/4NPT | 630 | 36 | 14 | 1.4571 | 5827N02 | |
| 3/8NPT | 630 | 36 | 19 | 1.4571 | 5827N03 | |
| 1/2NPT | 630 | 48 | 27 | 1.4571 | 5827N04 | |
| 3/4NPT | 630 | 50 | 32 | 1.4571 | 5827N06 | |
| 1NPT | 400 | 62 | 36 | 1.4571 | 5827N08 | |
| 1 1/4NPT | 400 | 68 | 46 | 1.4571 | 5827N10 | |
| 1 1/2NPT | 400 | 68 | 50 | 1.4571 | 5827N12 | |
| 2NPT | 315 | 68 | 65 | 1.4571 | 5827N16 |
