Cutting ring fittings

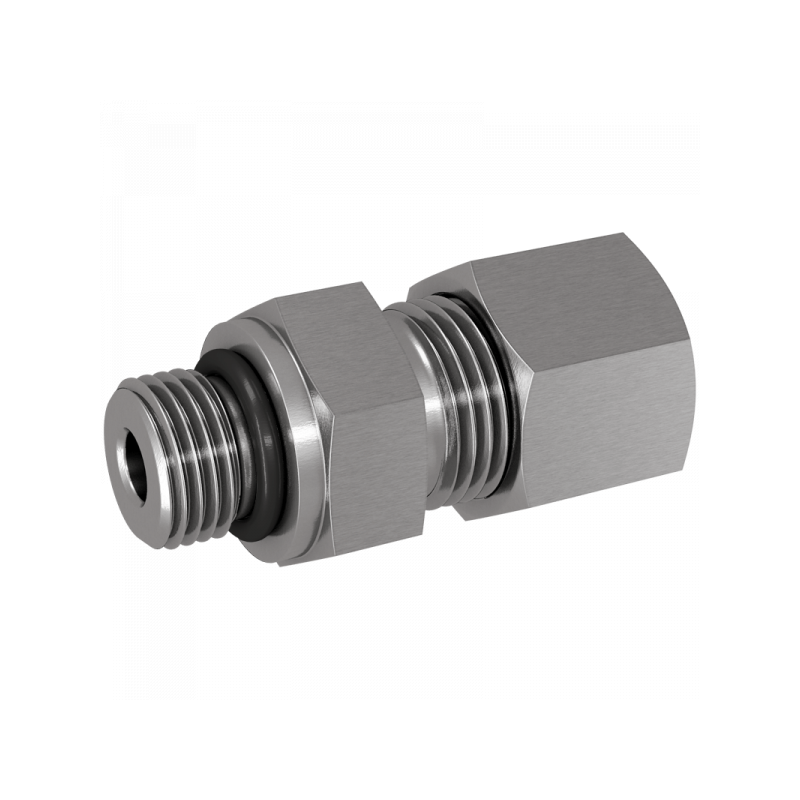

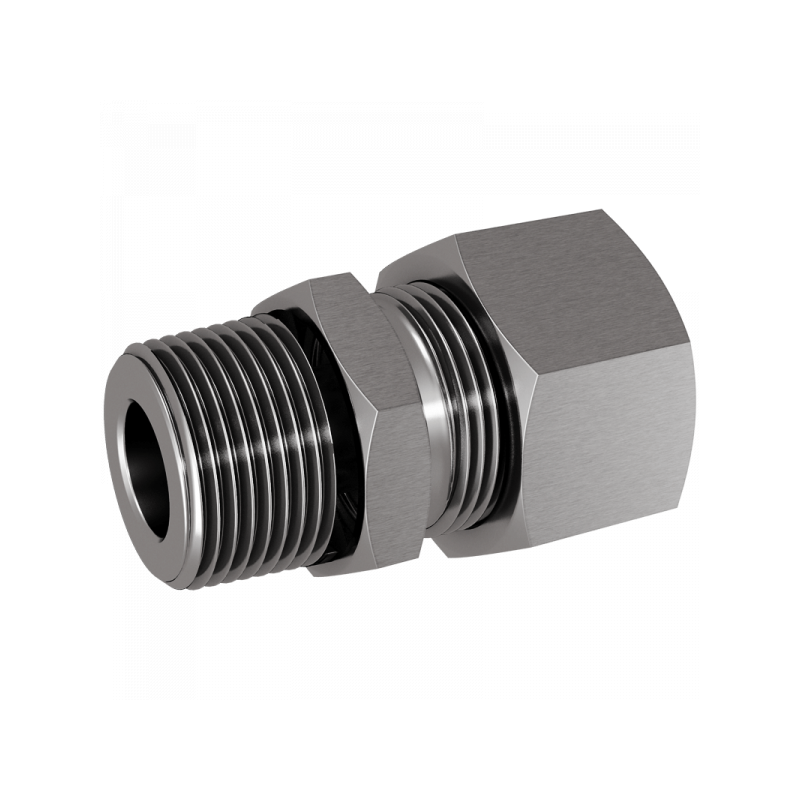

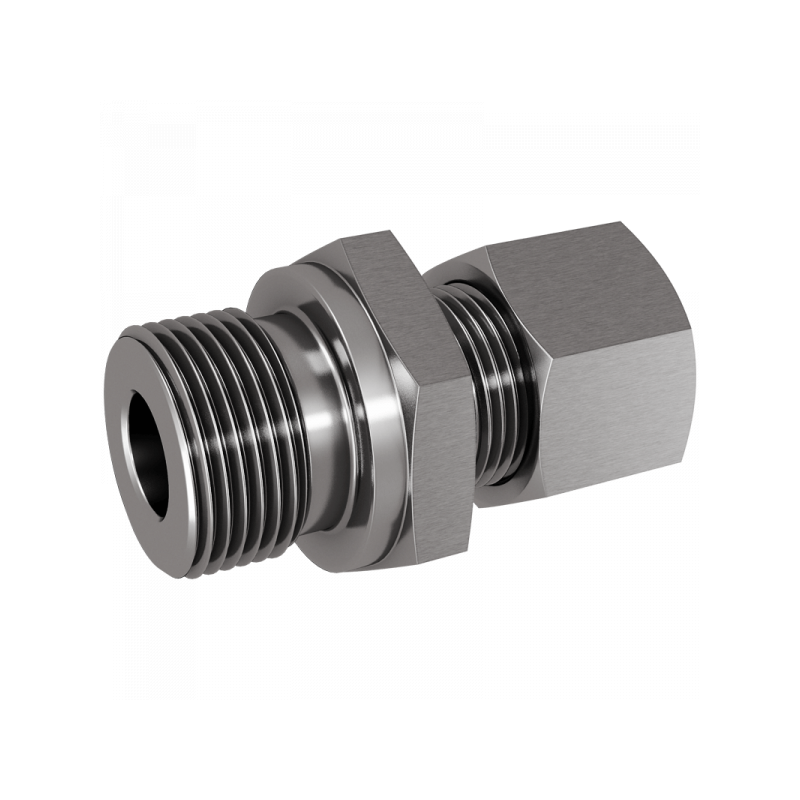

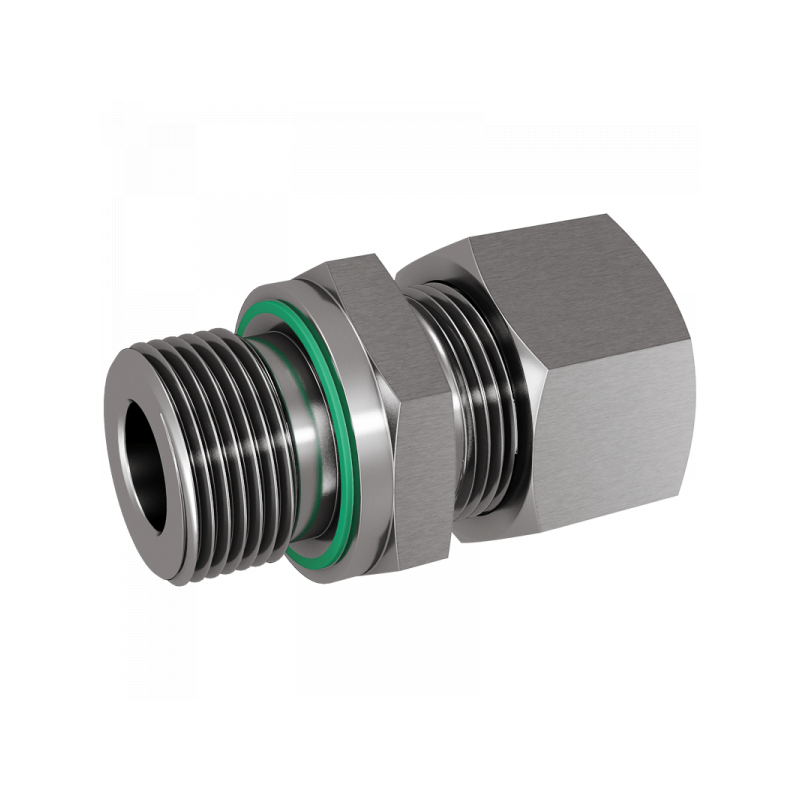

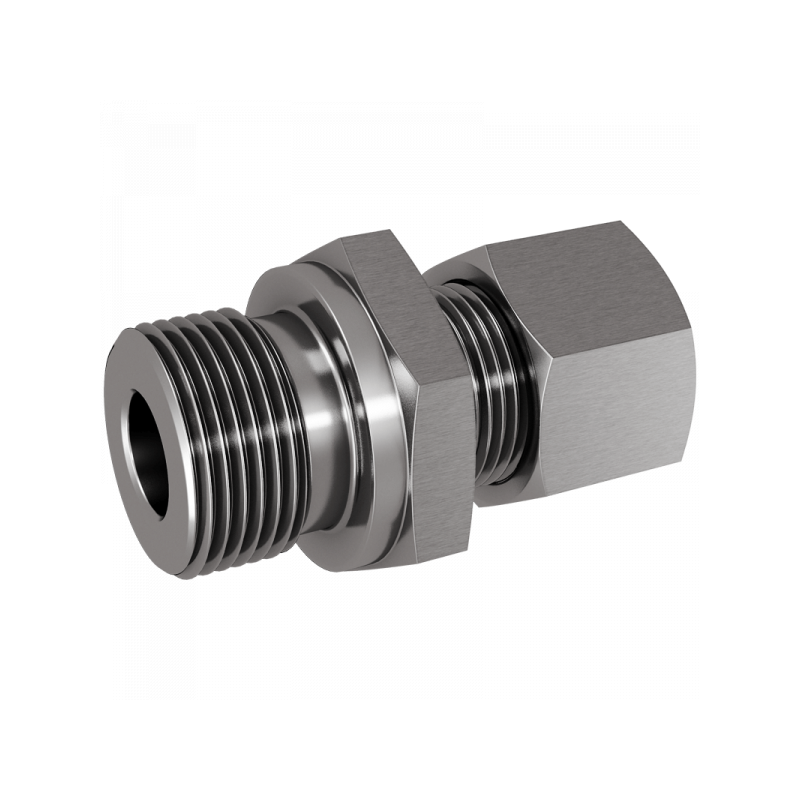

Straight male stud couplings

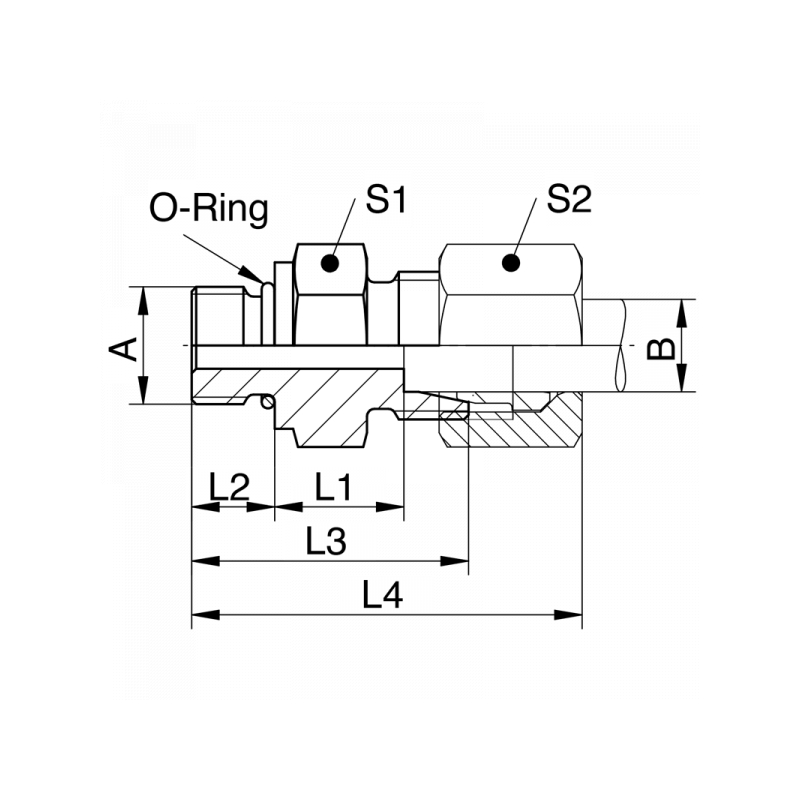

A	B	PN / Bar	L1 / mm	L2 / mm	L3 / mm	L4 / mm	S1	S2	Material	Art.Nr.	Stutzen
7/16-20UNF	06	315	8	9	24	34	14	14	1.4571	GE06LU7/16	XGE06LU7/16
1/2-20UNF	08	315	13	9	29	39	19	17	1.4571	GE08LU1/2	XGE08LU1/2
7/16-20UNF	08	315	10	9	26	36	17	17	1.4571	GE08LU7/16	XGE08LU7/16
9/16-18UNF	08	315	10	10	27	37	19	17	1.4571	GE08LU9/16	XGE08LU9/16
3/4-16UNF	10	315	10	11	28	39	22	19	1.4571	GE10LU3/4	XGE10LU3/4
7/16-20UNF	10	315	11	9	27	38	17	19	1.4571	GE10LU7/16	XGE10LU7/16
3/4-16UNF	12	315	12	11	31	42	24	22	1.4571	GE12LU3/4	XGE12LU3/4
7/8-14UNF	12	315	14,3	12,7	34	45	27	22	1.4571	GE12LU7/8	XGE12LU7/8
9/16-18UNF	12	315	11	10	28	39	19	22	1.4571	GE12LU9/16	XGE12LU9/16
3/4-16UNF	15	315	14	11	32	43	24	27	1.4571	GE15LU3/4	XGE15LU3/4
7/8-14UNF	15	315	15,3	12,7	35	46	27	27	1.4571	GE15LU7/8	XGE15LU7/8
9/16-18UNF	15	315	12	12	31	42	24	27	1.4571	GE15LU9/16	XGE15LU9/16
3/4-16UNF	18	315	14,5	11	33	45	27	32	1.4571	GE18LU3/4	XGE18LU3/4
7/8-14UNF	18	315	14,8	12,7	35	47	27	32	1.4571	GE18LU7/8	XGE18LU7/8
1 1/16-12UN	22	160	16,5	15	39	51	32	36	1.4571	GE22LU11/16	XGE22LU11/16
7/8-14UNF	22	160	16,8	12,7	37	49	32	36	1.4571	GE22LU7/8	XGE22LU7/8
1 5/16-12UN	28	160	17,5	15	40	54	41	41	1.4571	GE28LU15/16	XGE28LU15/16
7/8-14UNF	28	160	19,8	12,7	40	54	41	41	1.4571	GE28LU7/8	XGE28LU7/8
1 5/16-12UN	35	160	17,5	15	43	59	46	50	1.4571	GE35LU15/16	XGE35LU15/16
1 5/8-12UN	35	160	17,5	15	43	59	50	50	1.4571	GE35LU15/8	XGE35LU15/8
1 5/16-12UN	42	160	19	15	45	61	55	60	1.4571	GE42LU15/16	XGE42LU15/16
1 5/8-12UN	42	160	19	15	45	61	55	60	1.4571	GE42LU15/8	XGE42LU15/8
