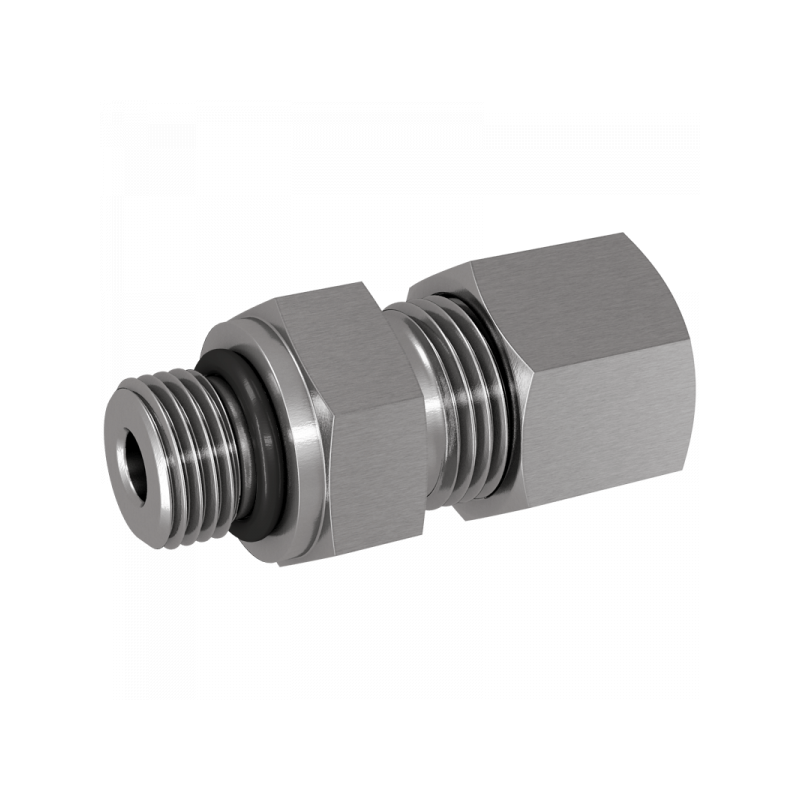

Cutting ring fittings

Straight male stud couplings

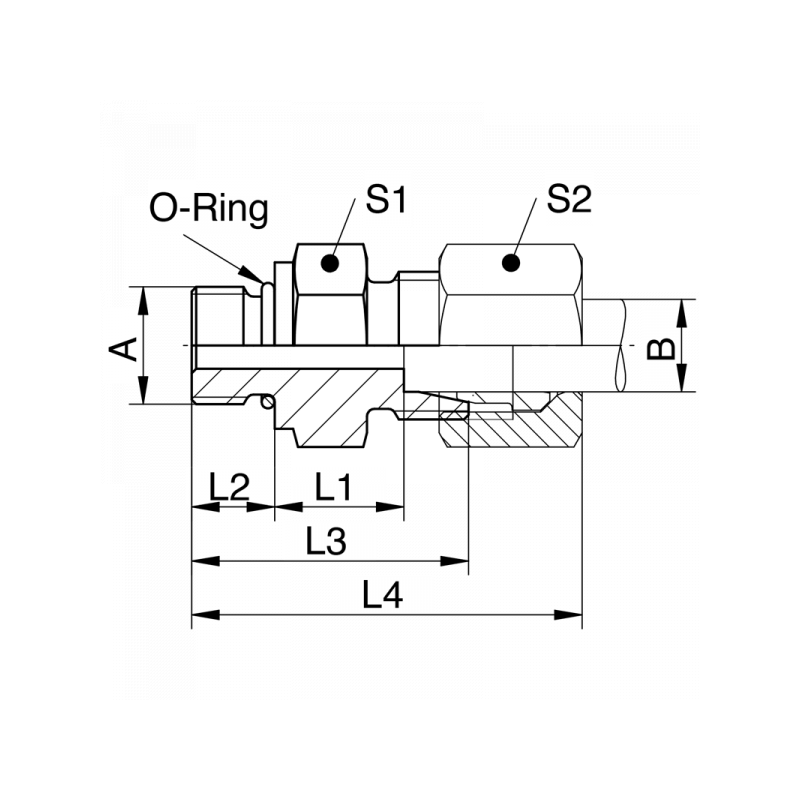

A	B	PN / Bar	L1 / mm	L2 / mm	L3 / mm	L4 / mm	S1	S2	Material	Art.Nr.	Stutzen
7/16-20UNF	06	630	13	11	31	41	17	17	1.4571	GE06SU7/16	XGE06SU7/16
1/2-20UNF	08	630	13	11	31	41	19	19	1.4571	GE08SU1/2	XGE08SU1/2
7/16-20UNF	08	630	13	11	31	41	17	19	1.4571	GE08SU7/16	XGE08SU7/16
1/2-20UNF	10	630	12,5	11	31	43	19	22	1.4571	GE10SU1/2	XGE10SU1/2
7/16-20UNF	10	630	12,5	11	31	43	19	22	1.4571	GE10SU7/16	XGE10SU7/16
9/16-18UNF	10	630	12,5	12	32	44	19	22	1.4571	GE10SU9/16	XGE10SU9/16
1/2-20UNF	12	630	12,5	11	31	43	22	24	1.4571	GE12SU1/2	XGE12SU1/2
3/4-16UNF	12	630	14,5	14	36	48	24	24	1.4571	GE12SU3/4	XGE12SU3/4
7/8-14UNF	12	630	14,5	16	38	50	27	24	1.4571	GE12SU7/8	XGE12SU7/8
3/4-16UNF	14	630	12	14	34	46	24	27	1.4571	GE14SU3/4	XGE14SU3/4
9/16-18UNF	14	630	14	12	34	46	24	27	1.4571	GE14SU9/16	XGE14SU9/16
1 1/16-12UN	16	400	12	18,5	39	52	32	30	1.4571	GE16SU11/16	XGE16SU11/16
3/4-16UNF	16	400	12,5	14	35	48	27	30	1.4571	GE16SU3/4	XGE16SU3/4
7/8-14UNF	16	400	15,5	16	40	53	27	30	1.4571	GE16SU7/8	XGE16SU7/8
1 1/16-12UN	20	400	18,5	18,5	46	61	32	36	1.4571	GE20SU11/16	XGE20SU11/16
1 5/16-12UN	20	400	18,5	18,5	46	61	41	36	1.4571	GE20SU15/16	XGE20SU15/16
3/4-16UNF	20	400	17,5	14	42	57	32	36	1.4571	GE20SU3/4	XGE20SU3/4
7/8-14UNF	20	400	17,5	16	44	59	32	36	1.4571	GE20SU7/8	XGE20SU7/8
1 1/16-12UN	25	400	19,5	18,5	50	66	36	46	1.4571	GE25SU11/16	XGE25SU11/16
1 5/16-12UN	25	400	19,5	18,5	50	66	41	46	1.4571	GE25SU15/16	XGE25SU15/16
1 5/16-12UN	30	400	20	18,5	52	68	46	50	1.4571	GE30SU15/16	XGE30SU15/16
1 5/16-12UN	38	250	22,5	18,5	57	76	55	60	1.4571	GE38SU15/16	XGE38SU15/16
