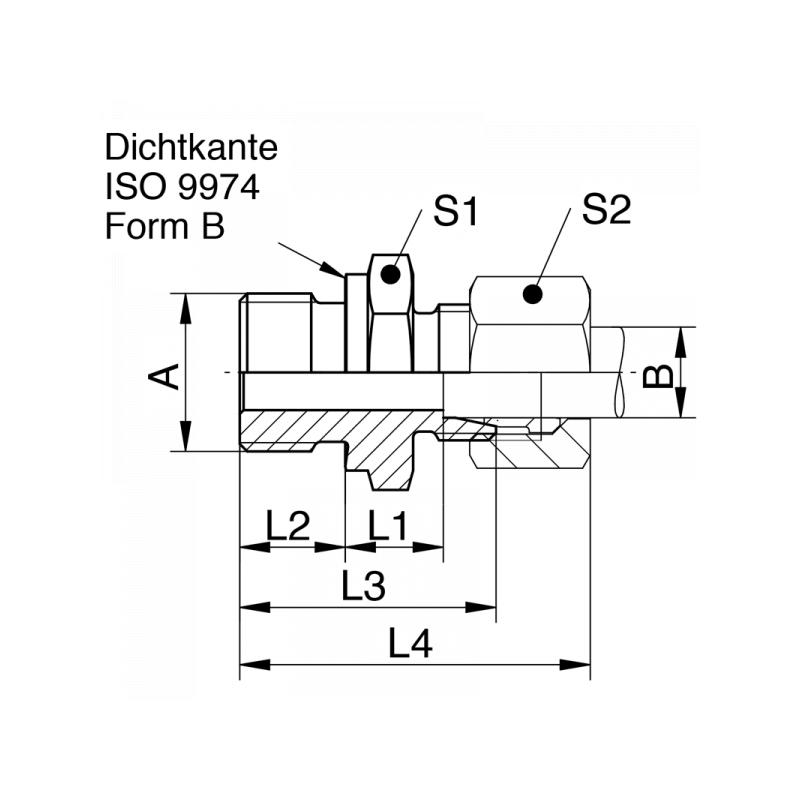

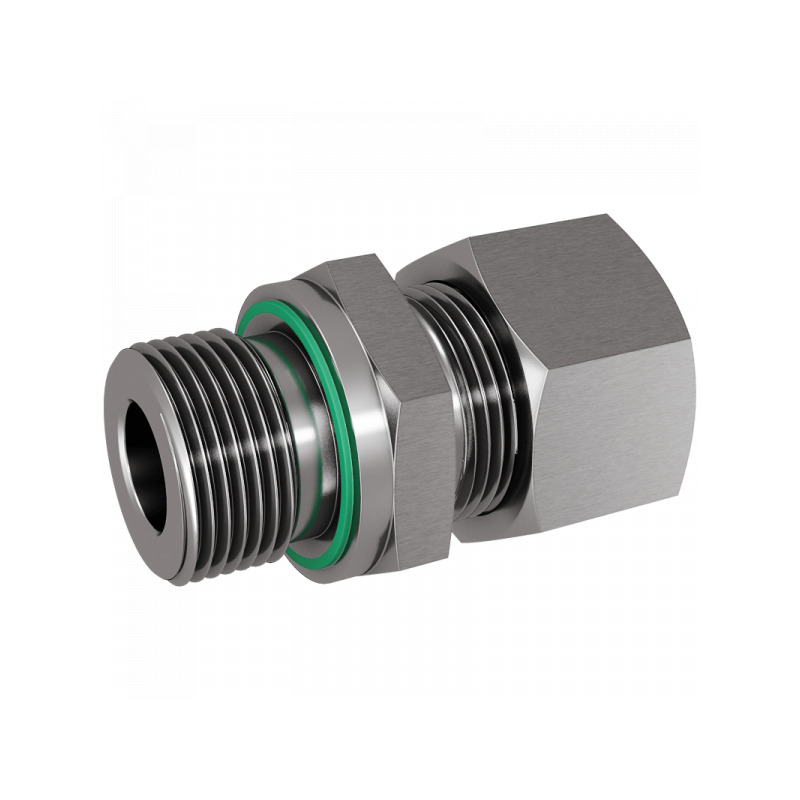

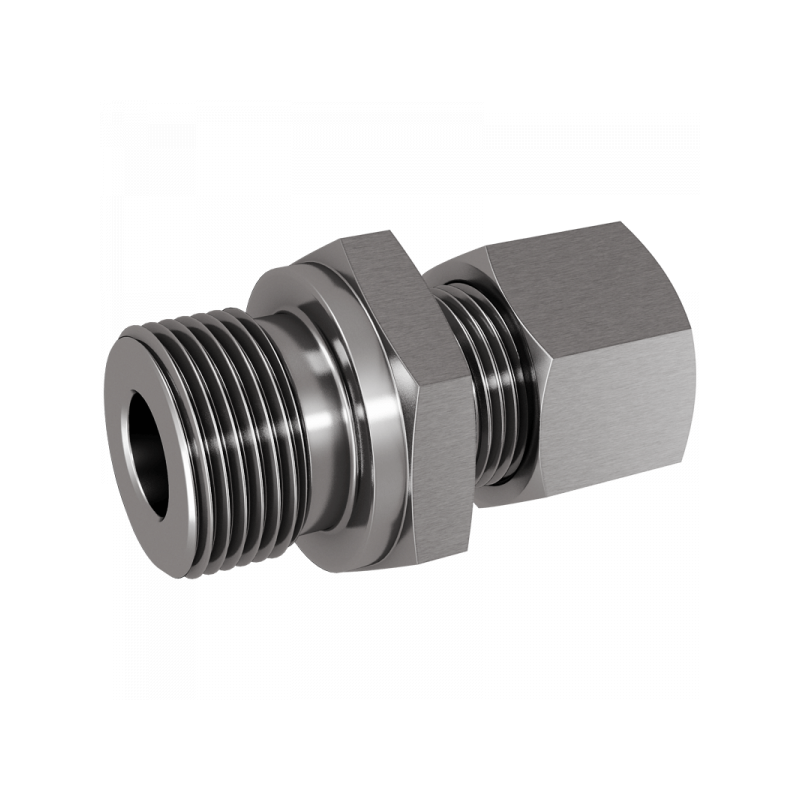

GE-LM:
| A | B | PN / Bar | L1 / mm | L2 / mm | L3 / mm | L4 / mm | S1 | S2 | Material | Art.Nr. | Stutzen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M10x1 | 06 | 315 | 8,5 | 8 | 23,5 | 33,5 | 14 | 14 | 1.4571 | GE06LM10 | XGE06LM10 | |
| M12x1,5 | 06 | 315 | 10 | 12 | 29 | 39 | 17 | 14 | 1.4571 | GE06LM12 | XGE06LM12 | |
| M14x1,5 | 06 | 315 | 10 | 12 | 29 | 39 | 19 | 14 | 1.4571 | GE06LM14 | XGE06LM14 | |
| M10x1 | 08 | 315 | 10 | 8 | 25 | 35 | 17 | 17 | 1.4571 | GE08LM10 | XGE08LM10 | |
| M12x1,5 | 08 | 315 | 10 | 12 | 29 | 39 | 17 | 17 | 1.4571 | GE08LM12 | XGE08LM12 | |
| M14x1,5 | 08 | 315 | 11 | 12 | 30 | 40 | 19 | 17 | 1.4571 | GE08LM14 | XGE08LM14 | |
| M16x1,5 | 08 | 315 | 12 | 12 | 31 | 41 | 22 | 17 | 1.4571 | GE08LM16 | XGE08LM16 | |
| M10x1 | 10 | 315 | 10,5 | 8 | 25,5 | 36,5 | 17 | 19 | 1.4571 | GE10LM10 | XGE10LM10 | |
| M12x1,5 | 10 | 315 | 11 | 12 | 30 | 41 | 17 | 19 | 1.4571 | GE10LM12 | XGE10LM12 | |
| M14x1,5 | 10 | 315 | 11 | 12 | 30 | 41 | 19 | 19 | 1.4571 | GE10LM14 | XGE10LM14 | |
| M16x1,5 | 10 | 315 | 12 | 12 | 31,5 | 42,5 | 22 | 19 | 1.4571 | GE10LM16 | XGE10LM16 | |
| M18x1,5 | 10 | 315 | 12,5 | 12 | 31,5 | 42,5 | 24 | 19 | 1.4571 | GE10LM18 | XGE10LM18 | |
| M20x1,5 | 10 | 315 | 14 | 14 | 35 | 46 | 27 | 19 | 1.4571 | GE10LM20 | XGE10LM20 | |
| M10x1 | 12 | 315 | 12 | 8 | 27 | 38 | 19 | 22 | 1.4571 | GE12LM10 | XGE12LM10 | |
| M12x1,5 | 12 | 315 | 11 | 12 | 30 | 41 | 19 | 22 | 1.4571 | GE12LM12 | XGE12LM12 | |
| M14x1,5 | 12 | 315 | 11 | 12 | 30 | 41 | 19 | 22 | 1.4571 | GE12LM14 | XGE12LM14 | |
| M16x1,5 | 12 | 315 | 12,5 | 12 | 31,5 | 42,5 | 22 | 22 | 1.4571 | GE12LM16 | XGE12LM16 | |
| M18x1,5 | 12 | 315 | 12,5 | 12 | 31,5 | 42,5 | 24 | 22 | 1.4571 | GE12LM18 | XGE12LM18 | |
| M22x1,5 | 12 | 315 | 14 | 14 | 35 | 46 | 27 | 22 | 1.4571 | GE12LM22 | XGE12LM22 | |
| M16x1,5 | 15 | 315 | 13 | 12 | 32 | 43 | 24 | 27 | 1.4571 | GE15LM16 | XGE15LM16 | |
| M18x1,5 | 15 | 315 | 13,5 | 12 | 32,5 | 43,5 | 24 | 27 | 1.4571 | GE15LM18 | XGE15LM18 | |
| M22x1,5 | 15 | 315 | 15 | 14 | 36 | 47 | 27 | 27 | 1.4571 | GE15LM22 | XGE15LM22 | |
| M16x1,5 | 18 | 315 | 14 | 12 | 33,5 | 45,5 | 27 | 32 | 1.4571 | GE18LM16 | XGE18LM16 | |
| M18x1,5 | 18 | 315 | 14 | 12 | 33,5 | 45,5 | 27 | 32 | 1.4571 | GE18LM18 | XGE18LM18 | |
| M22x1,5 | 18 | 315 | 14,5 | 14 | 36 | 48 | 27 | 32 | 1.4571 | GE18LM22 | XGE18LM22 | |
| M26x1,5 | 18 | 315 | 12,5 | 16 | 36 | 48 | 32 | 32 | 1.4571 | GE18LM26 | XGE18LM26 | |
| M22x1,5 | 22 | 160 | 16,5 | 14 | 38 | 50 | 32 | 36 | 1.4571 | GE22LM22 | XGE22LM22 | |
| M26x1,5 | 22 | 160 | 16,5 | 16 | 40 | 52 | 32 | 36 | 1.4571 | GE22LM26 | XGE22LM26 | |
| M33x2 | 28 | 160 | 17,5 | 18 | 43 | 57 | 41 | 41 | 1.4571 | GE28LM33 | XGE28LM33 | |
| M42x2 | 35 | 160 | 17,5 | 20 | 48 | 64 | 50 | 50 | 1.4571 | GE35LM42 | XGE35LM42 | |
| M48x2 | 42 | 160 | 19 | 22 | 52 | 68 | 55 | 60 | 1.4571 | GE42LM48 | XGE42LM48 |
