GE-SR-KEG:
| A | B | PN / Bar | L1 / mm | L2 / mm | L3 / mm | L4 / mm | S1 | S2 | Material | Art.Nr. | Stutzen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1/8keg | 06 | 630 | 11 | 8 | 26 | 36 | 14 | 17 | 1.4571 | GE06SK01 | XGE06SK01 | |
| R1/4keg | 06 | 630 | 11 | 12 | 30 | 40 | 14 | 17 | 1.4571 | GE06SK02 | XGE06SK02 | |
| R1/4keg | 08 | 630 | 13 | 12 | 32 | 42 | 17 | 19 | 1.4571 | GE08SK02 | XGE08SK02 | |
| R1/4keg | 10 | 630 | 12,5 | 12 | 32 | 44 | 19 | 22 | 1.4571 | GE10SK02 | XGE10SK02 | |
| R3/8keg | 10 | 630 | 12,5 | 12 | 32 | 44 | 19 | 22 | 1.4571 | GE10SK03 | XGE10SK03 | |
| R1/2keg | 10 | 630 | 14,5 | 14 | 36 | 48 | 22 | 22 | 1.4571 | GE10SK04 | XGE10SK04 | |
| R3/8keg | 12 | 630 | 14,5 | 12 | 34 | 46 | 22 | 24 | 1.4571 | GE12SK03 | XGE12SK03 | |
| R1/2keg | 12 | 630 | 14,5 | 14 | 36 | 48 | 24 | 24 | 1.4571 | GE12SK04 | XGE12SK04 | |
| R3/8keg | 14 | 630 | 16 | 12 | 36 | 48 | 24 | 27 | 1.4571 | GE14SK03 | XGE14SK03 | |
| R1/2keg | 14 | 630 | 16 | 14 | 38 | 50 | 24 | 27 | 1.4571 | GE14SK04 | XGE14SK04 | |
| R1/2keg | 16 | 400 | 15,5 | 14 | 38 | 51 | 27 | 30 | 1.4571 | GE16SK04 | XGE16SK04 | |
| R1/2keg | 20 | 400 | 17,5 | 14 | 42 | 57 | 32 | 36 | 1.4571 | GE20SK04 | XGE20SK04 | |
| R3/4keg | 20 | 400 | 17,5 | 16 | 44 | 59 | 32 | 36 | 1.4571 | GE20SK06 | XGE20SK06 | |
| R1keg | 25 | 400 | 20 | 18 | 50 | 66 | 41 | 46 | 1.4571 | GE25SK08 | XGE25SK08 | |
| R1keg | 30 | 400 | 20,5 | 18 | 52 | 66 | 46 | 50 | 1.4571 | GE30SK08 | XGE30SK08 | |
| R1 1/4keg | 30 | 400 | 20,5 | 20 | 54 | 70 | 46 | 50 | 1.4571 | GE30SK10 | XGE30SK10 | |
| R1 1/2keg | 38 | 250 | 23 | 22 | 61 | 80 | 55 | 60 | 1.4571 | GE38SK12 | XGE38SK12 |
Related articles

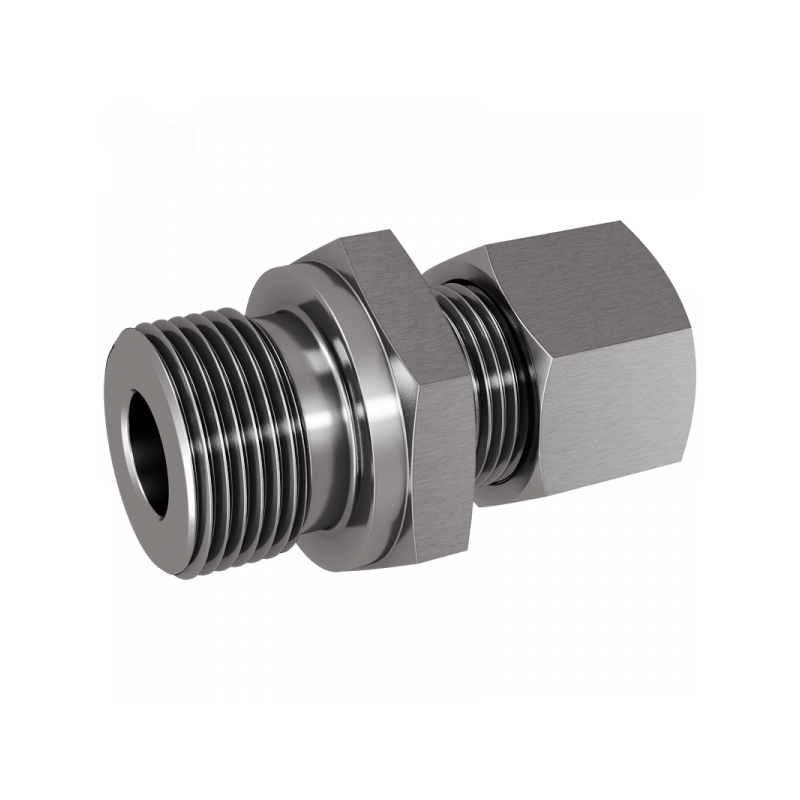

GE-LR
GE-LR-ED

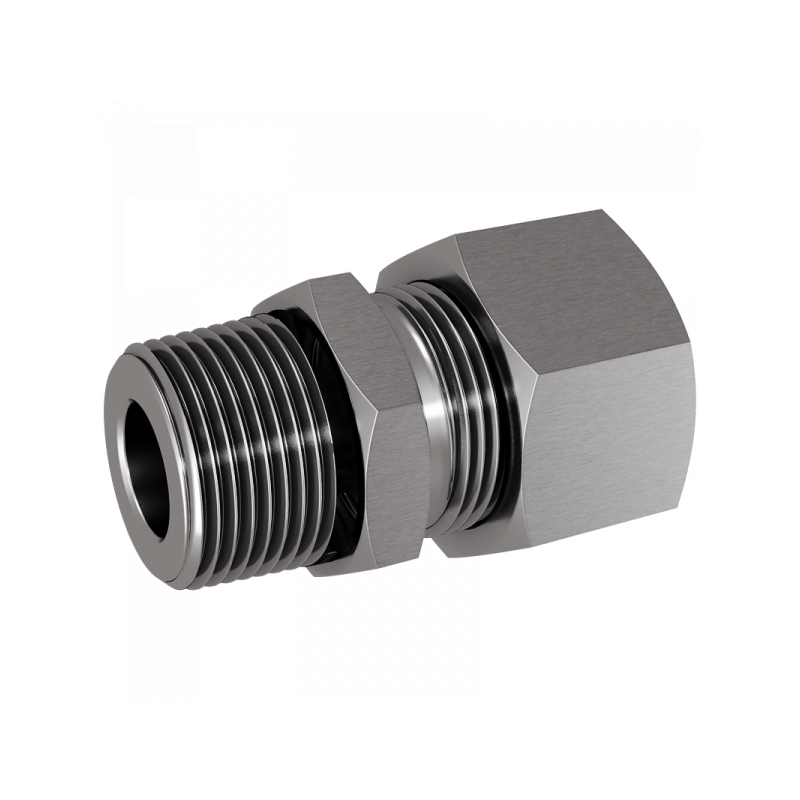

GE-LR-KEG
