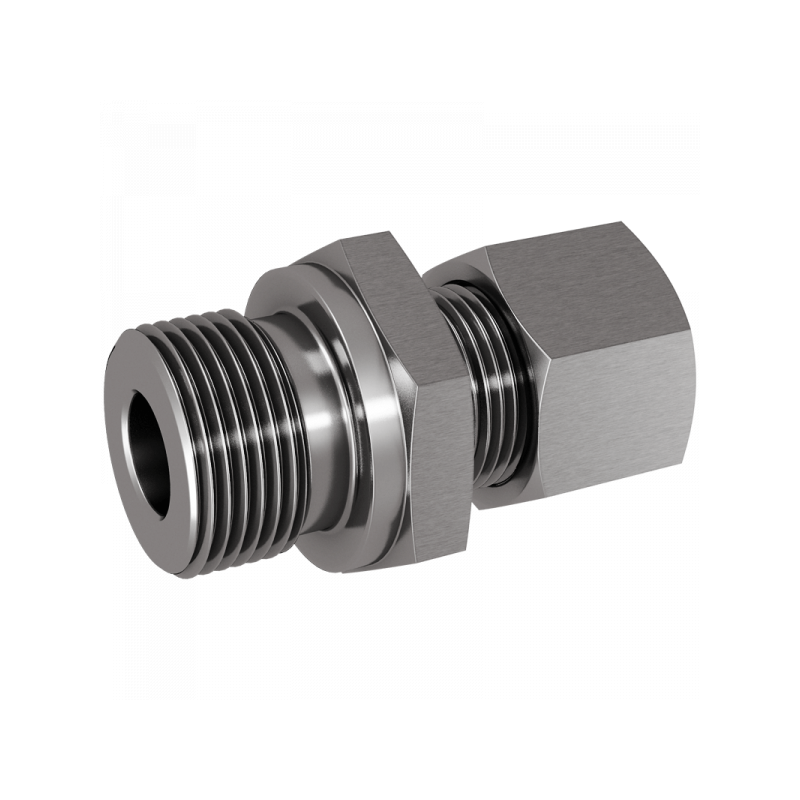

GE-SR:
| A | B | PN / Bar | L1 / mm | L2 / mm | L3 / mm | L4 / mm | S1 | S2 | Material | Art.Nr. | Stutzen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G1/8 | 06 | 630 | 12,5 | 8 | 27,5 | 37,5 | 14 | 17 | 1.4571 | GE06S01 | XGE06S01 | |
| G1/4 | 06 | 630 | 13 | 12 | 32 | 42 | 19 | 17 | 1.4571 | GE06S02 | XGE06S02 | |
| G3/8 | 06 | 630 | 15,5 | 12 | 34,5 | 44,5 | 22 | 17 | 1.4571 | GE06S03 | XGE06S03 | |
| G1/2 | 06 | 630 | 18 | 14 | 39 | 49 | 27 | 17 | 1.4571 | GE06S04 | XGE06S04 | |
| G1/8 | 08 | 630 | 17 | 8 | 32 | 42 | 17 | 19 | 1.4571 | GE08S01 | XGE08S01 | |
| G1/4 | 08 | 630 | 15 | 12 | 34 | 44 | 19 | 19 | 1.4571 | GE08S02 | XGE08S02 | |
| G3/8 | 08 | 630 | 15,5 | 12 | 34,5 | 44,5 | 22 | 19 | 1.4571 | GE08S03 | XGE08S03 | |
| G1/2 | 08 | 630 | 18 | 14 | 39 | 49 | 27 | 19 | 1.4571 | GE08S04 | XGE08S04 | |
| G1/4 | 10 | 630 | 14,5 | 12 | 34 | 46 | 19 | 22 | 1.4571 | GE10S02 | XGE10S02 | |
| G3/8 | 10 | 630 | 15 | 12 | 34,5 | 46,5 | 22 | 22 | 1.4571 | GE10S03 | XGE10S03 | |
| G1/2 | 10 | 630 | 17,5 | 14 | 39 | 51 | 27 | 22 | 1.4571 | GE10S04 | XGE10S04 | |
| G3/4 | 10 | 630 | 19,5 | 16 | 43 | 55 | 32 | 22 | 1.4571 | GE10S06 | XGE10S06 | |
| G1/8 | 12 | 630 | 16,5 | 8 | 32 | 44 | 22 | 24 | 1.4571 | GE12S01 | XGE12S01 | |
| G1/4 | 12 | 630 | 16,5 | 12 | 36 | 48 | 22 | 24 | 1.4571 | GE12S02 | XGE12S02 | |
| G3/8 | 12 | 630 | 17 | 12 | 36,5 | 48,5 | 22 | 24 | 1.4571 | GE12S03 | XGE12S03 | |
| G1/2 | 12 | 630 | 17,5 | 14 | 39 | 51 | 27 | 24 | 1.4571 | GE12S04 | XGE12S04 | |
| G3/4 | 12 | 630 | 17,5 | 16 | 41 | 53 | 32 | 24 | 1.4571 | GE12S06 | XGE12S06 | |
| G3/8 | 14 | 630 | 18,5 | 12 | 38,5 | 51,5 | 24 | 27 | 1.4571 | GE14S03 | XGE14S03 | |
| G1/2 | 14 | 630 | 19 | 14 | 41 | 54 | 27 | 27 | 1.4571 | GE14S04 | XGE14S04 | |
| G3/4 | 14 | 630 | 20,5 | 16 | 44,5 | 57,5 | 32 | 27 | 1.4571 | GE14S06 | XGE14S06 | |
| G1/4 | 16 | 400 | 18,5 | 12 | 39 | 54 | 27 | 30 | 1.4571 | GE16S02 | XGE16S02 | |
| G3/8 | 16 | 400 | 18 | 12 | 38,5 | 53,5 | 27 | 30 | 1.4571 | GE16S03 | XGE16S03 | |
| G1/2 | 16 | 400 | 18,5 | 14 | 41 | 56 | 27 | 30 | 1.4571 | GE16S04 | XGE16S04 | |
| G3/4 | 16 | 400 | 20,5 | 16 | 45 | 60 | 32 | 30 | 1.4571 | GE16S06 | XGE16S06 | |
| G1 | 16 | 400 | 22,5 | 18 | 49 | 56 | 41 | 30 | 1.4571 | GE16S08 | XGE16S08 | |
| G1/2 | 20 | 400 | 20,5 | 14 | 45 | 61 | 32 | 36 | 1.4571 | GE20S04 | XGE20S04 | |
| G3/4 | 20 | 400 | 20,5 | 16 | 47 | 63 | 32 | 36 | 1.4571 | GE20S06 | XGE20S06 | |
| G1 | 20 | 400 | 22,5 | 18 | 51 | 67 | 41 | 36 | 1.4571 | GE20S08 | XGE20S08 | |
| G1 1/4 | 20 | 400 | 22,5 | 20 | 53 | 69 | 50 | 36 | 1.4571 | GE20S10 | XGE20S10 | |
| G1/2 | 25 | 400 | 23 | 14 | 49 | 65 | 41 | 46 | 1.4571 | GE25S04 | XGE25S04 | |
| G3/4 | 25 | 400 | 23 | 16 | 51 | 67 | 41 | 46 | 1.4571 | GE25S06 | XGE25S06 | |
| G1 | 25 | 400 | 23 | 18 | 53 | 69 | 41 | 46 | 1.4571 | GE25S08 | XGE25S08 | |
| G3/4 | 30 | 400 | 23,5 | 16 | 53 | 69 | 46 | 50 | 1.4571 | GE30S06 | XGE30S06 | |
| G1 | 30 | 400 | 23,5 | 18 | 55 | 71 | 46 | 50 | 1.4571 | GE30S08 | XGE30S08 | |
| G1 1/4 | 30 | 400 | 23,5 | 20 | 57 | 73 | 50 | 50 | 1.4571 | GE30S10 | XGE30S10 | |
| G1 1/2 | 30 | 400 | 26,5 | 22 | 62 | 78 | 55 | 50 | 1.4571 | GE30S12 | XGE30S12 | |
| G1 1/4 | 38 | 250 | 26 | 20 | 62 | 81 | 55 | 60 | 1.4571 | GE38S10 | XGE38S10 | |
| G1 1/2 | 38 | 250 | 26 | 22 | 64 | 83 | 55 | 60 | 1.4571 | GE38S12 | XGE38S12 |
