Cutting ring fittings

Reducer couplings

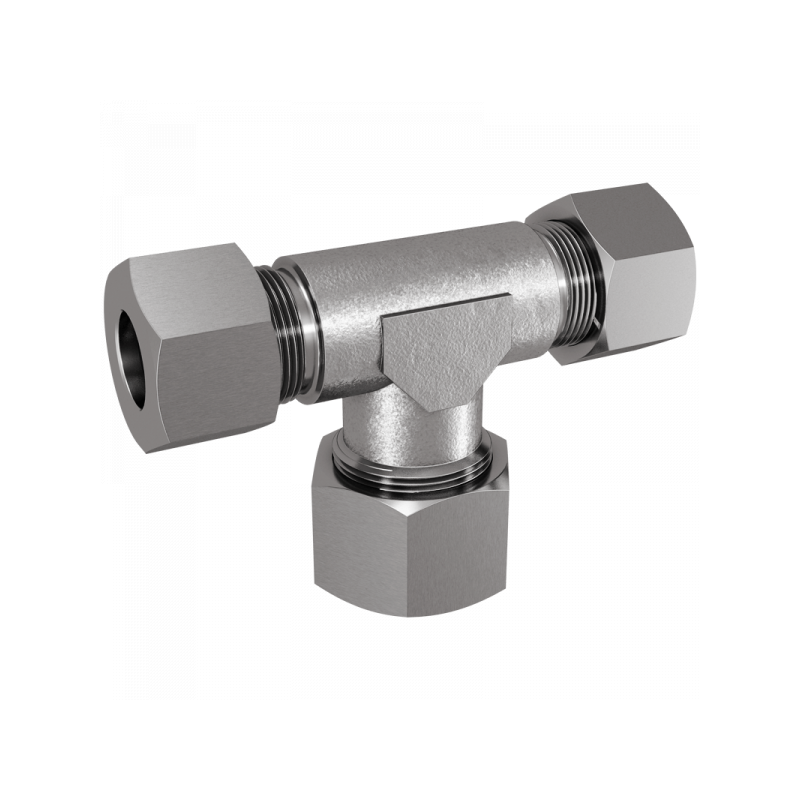

TR-L:

Technical features
Documents

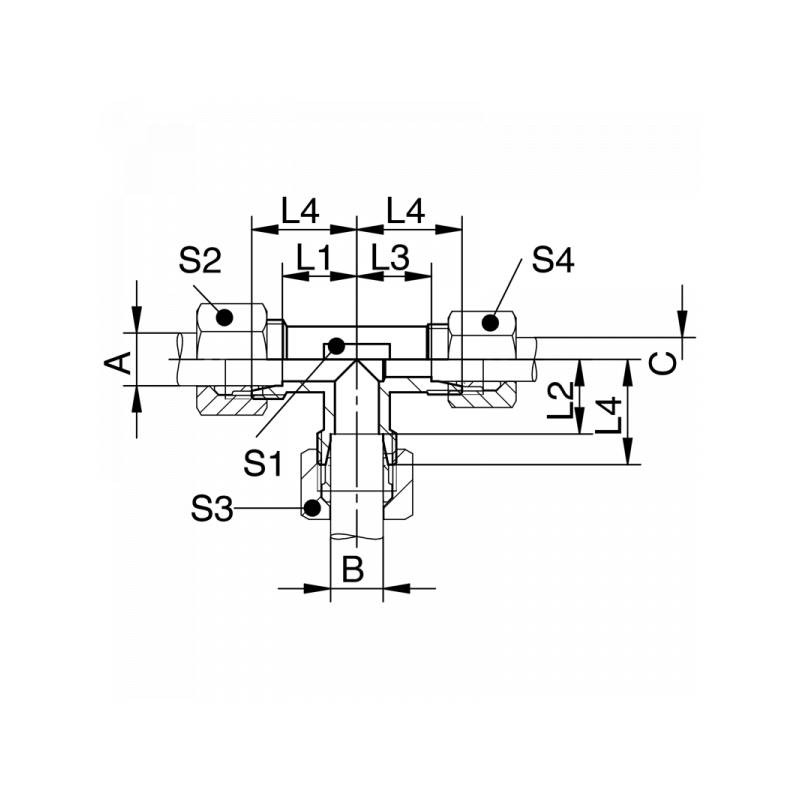

A	B	C	PN / Bar	L1 / mm	L2 / mm	L3 / mm	L4 / mm	S1	S2	S3	S4	Material	Art.Nr.	Stutzen
06	10	06	315	15	15	15	22	14	14	19	14	1.4571	TR061006L3	XTR061006L3
08	06	08	315	14	14	14	21	12	17	14	17	1.4571	TR080608L3	XTR080608L3
08	08	12	315	17	17	17	24	17	17	17	22	1.4571	TR080812L3	XTR080812L3
08	12	08	315	17	17	17	24	17	17	22	17	1.4571	TR081208L3	XTR081208L3
10	06	06	315	15	15	15	22	14	19	14	14	1.4571	TR100606L3	XTR100606L3
10	06	10	315	15	15	15	22	14	19	14	19	1.4571	TR100610L3	XTR100610L3
10	08	10	315	15	15	15	22	14	19	17	19	1.4571	TR100810L3	XTR100810L3
10	15	10	315	21	21	21	28	19	19	27	19	1.4571	TR101510L3	XTR101510L3
12	06	12	315	17	17	17	24	17	22	14	22	1.4571	TR120612L3	XTR120612L3
12	08	12	315	17	17	17	24	17	22	17	22	1.4571	TR120812L3	XTR120812L3
12	10	10	315	17	17	17	24	17	22	19	19	1.4571	TR121010L	XTR121010L
12	10	12	315	17	17	17	24	17	22	19	22	1.4571	TR121012L3	XTR121012L3
12	12	10	315	17	17	17	24	17	22	22	19	1.4571	TR121210L3	XTR121210L3
15	10	10	315	21	21	21	28	19	27	19	19	1.4571	TR151010L	XTR151010L
15	10	15	315	21	21	21	28	19	27	19	27	1.4571	TR151015L3	XTR151015L3
15	12	12	315	21	21	21	28	19	27	22	22	1.4571	TR151212L3	XTR151212L3
15	12	15	315	21	21	21	28	19	27	22	27	1.4571	TR151215L3	XTR151215L3
15	15	10	315	21	21	21	28	19	27	27	19	1.4571	TR151510L3	XTR151510L3
18	10	18	315	23,5	24	23,5	31	24	32	19	32	1.4571	TR181018L3	XTR181018L3
18	12	18	315	23,5	24	23,5	31	24	32	22	32	1.4571	TR181218L3	XTR181218L3
18	15	18	315	23,5	24	23,5	31	24	32	27	32	1.4571	TR181518L3	XTR181518L3
18	18	10	315	23,5	23,5	24	31	24	32	32	19	1.4571	TR181810L3	XTR181810L3
18	18	12	315	23,5	23,5	24	31	24	32	32	22	1.4571	TR181812L3	XTR181812L3
18	22	18	160	27,5	27,5	27,5	35	27	32	36	32	1.4571	TR182218L3	XTR182218L3
22	12	22	160	27,5	28	27,5	35	27	36	22	36	1.4571	TR221222L3	XTR221222L3
22	15	15	160	27,5	28	28	35	27	36	27	27	1.4571	TR221515L3	XTR221515L3
22	15	22	160	27,5	28	27,5	35	27	36	27	36	1.4571	TR221522L3	XTR221522L3
22	18	22	160	27,5	27,5	27,5	35	27	36	32	36	1.4571	TR221822L3	XTR221822L3
22	22	18	160	27,5	27,5	27,5	35	27	36	36	32	1.4571	TR222218L	XTR222218L
28	18	28	160	30,5	30,5	30,5	38	36	41	32	41	1.4571	TR281828L3	XTR281828L3
28	22	28	160	30,5	30,5	30,5	38	36	41	36	41	1.4571	TR282228L3	XTR282228L3
28	28	22	160	30,5	30,5	30,5	38	36	41	41	36	1.4571	TR282822L3	XTR282822L3
28	35	28	160	36,5	33,5	36,5	44	41	41	50	41	1.4571	TR283528L3	XTR283528L3
35	28	35	160	33,5	36,5	33,5	44	41	50	41	50	1.4571	TR352835L3	XTR352835L3

Download product overview
