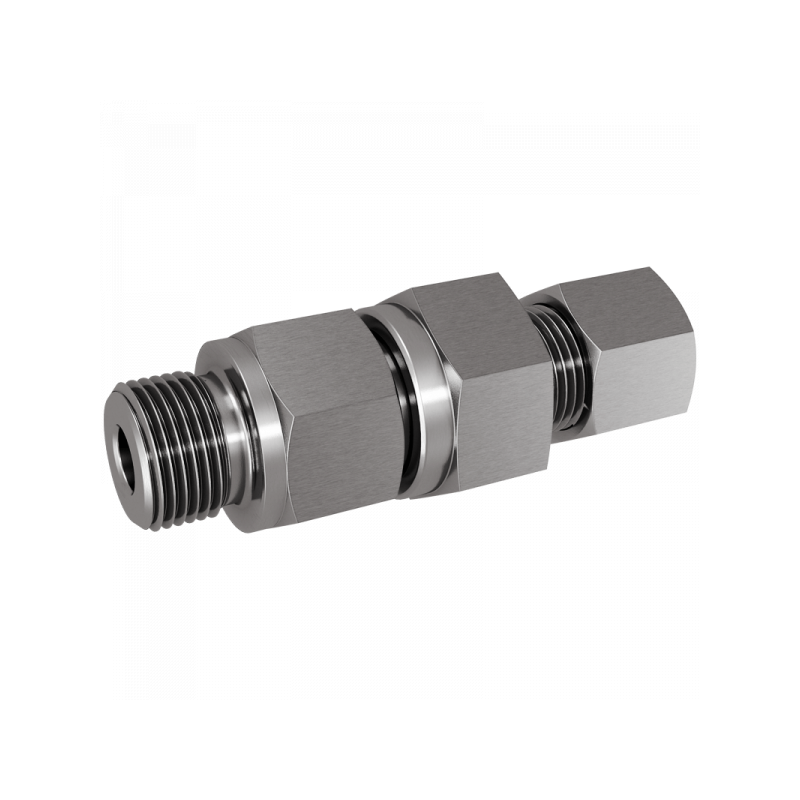

RVER-LR/SR:

A B PN / Bar L1 / mm L2 / mm L3 / mm S1 S2 S3 Material Art.Nr. Stutzen PDF
G1/8 06 315 45 8 62 14 17 14 1.4571 RVER06LR01  XRVER06LR01
G1/8 06 315 45 8 62 14 17 14 1.4571 RVER06LR01  XRVER06LR01
G1/4 08 315 41 12 58 17 19 17 1.4571 RVER08LR02  XRVER08LR02
G1/4 08 315 41 12 58 17 19 17 1.4571 RVER08LR02  XRVER08LR02
G1/4 10 315 53 12 70 22 24 19 1.4571 RVER10LR02  XRVER10LR02
G1/4 10 315 53 12 70 22 24 19 1.4571 RVER10LR02  XRVER10LR02
G3/8 12 315 56 12 74 27 30 22 1.4571 RVER12LR03  XRVER12LR03
G3/8 12 315 56 12 74 27 30 22 1.4571 RVER12LR03  XRVER12LR03
G1/2 15 315 54 14 72 27 30 27 1.4571 RVER15LR04  XRVER15LR04
G1/2 15 315 54 14 72 27 30 27 1.4571 RVER15LR04  XRVER15LR04
G1/2 18 315 59,5 14 79 32 36 32 1.4571 RVER18LR04  XRVER18LR04
G1/2 18 315 59,5 14 79 32 36 32 1.4571 RVER18LR04  XRVER18LR04
G3/4 22 160 62,5 16 82 36 46 36 1.4571 RVER22LR06  XRVER22LR06
G3/4 22 160 62,5 16 82 36 46 36 1.4571 RVER22LR06  XRVER22LR06
G1 28 160 82,5 18 104 41 55 41 1.4571 RVER28LR08  XRVER28LR08
G1 28 160 82,5 18 104 41 55 41 1.4571 RVER28LR08  XRVER28LR08
G1 1/4 35 160 89,5 20 116 50 60 50 1.4571 RVER35LR10  XRVER35LR10
G1 1/4 35 160 89,5 20 116 50 60 50 1.4571 RVER35LR10  XRVER35LR10
G1 1/2 42 160 89 22 116 60 70 60 1.4571 RVER42LR12  XRVER42LR12
G1 1/2 42 160 89 22 116 60 70 60 1.4571 RVER42LR12  XRVER42LR12
G1/4 06 630 49 12 66 17 19 17 1.4571 RVER06SR02  XRVER06SR02
G1/4 06 630 49 12 66 17 19 17 1.4571 RVER06SR02  XRVER06SR02
G1/4 08 630 53 12 70 19 19 19 1.4571 RVER08SR02  XRVER08SR02
G1/4 08 630 53 12 70 19 19 19 1.4571 RVER08SR02  XRVER08SR02
G3/8 10 630 58,5 12 77 22 24 22 1.4571 RVER10SR03  XRVER10SR03
G3/8 10 630 58,5 12 77 22 24 22 1.4571 RVER10SR03  XRVER10SR03
G3/8 12 630 63,5 12 83 27 30 24 1.4571 RVER12SR03  XRVER12SR03
G3/8 12 630 63,5 12 83 27 30 24 1.4571 RVER12SR03  XRVER12SR03
G1/2 14 630 66 14 86 27 32 27 1.4571 RVER14SR04  XRVER14SR04
G1/2 14 630 66 14 86 27 32 27 1.4571 RVER14SR04  XRVER14SR04
G1/2 16 400 67,5 14 89 30 36 30 1.4571 RVER16SR04  XRVER16SR04
G1/2 16 400 67,5 14 89 30 36 30 1.4571 RVER16SR04  XRVER16SR04
G3/4 20 400 81,5 16 107 36 46 36 1.4571 RVER20SR06  XRVER20SR06
G3/4 20 400 81,5 16 107 36 46 36 1.4571 RVER20SR06  XRVER20SR06
G1 25 400 84 18 112 46 50 46 1.4571 RVER25SR08  XRVER25SR08
G1 25 400 84 18 112 46 50 46 1.4571 RVER25SR08  XRVER25SR08
G1 1/4 30 400 103,5 20 133 60 60 50 1.4571 RVER30SR10  XRVER30SR10
G1 1/4 30 400 103,5 20 133 60 60 50 1.4571 RVER30SR10  XRVER30SR10
G1 1/2 38 250 84 22 119 60 70 60 1.4571 RVER38SR12  XRVER38SR12
G1 1/2 38 250 84 22 119 60 70 60 1.4571 RVER38SR12  XRVER38SR12
