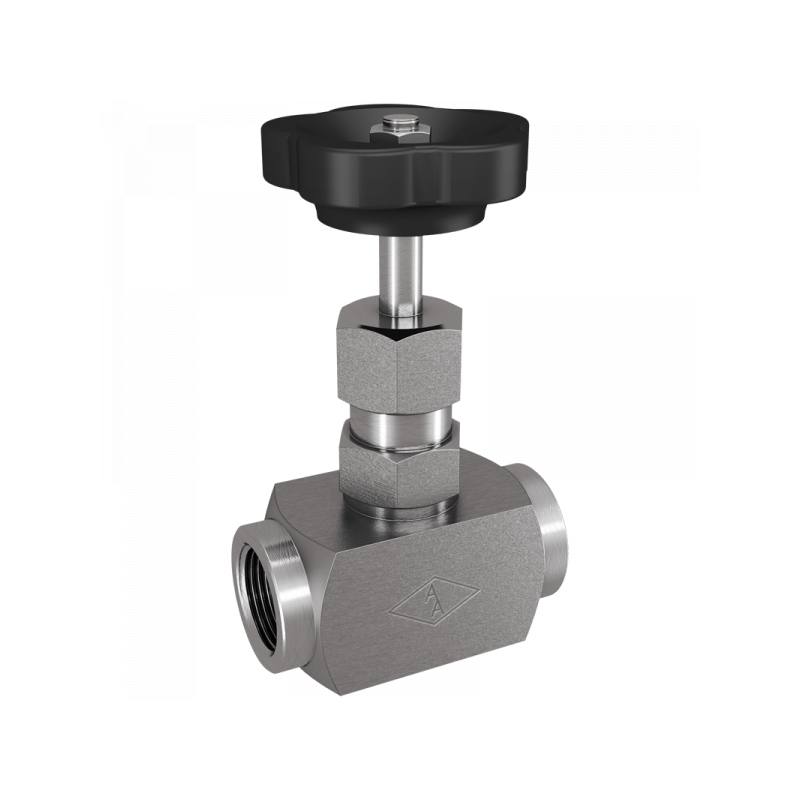

Fig. 110/NPT:

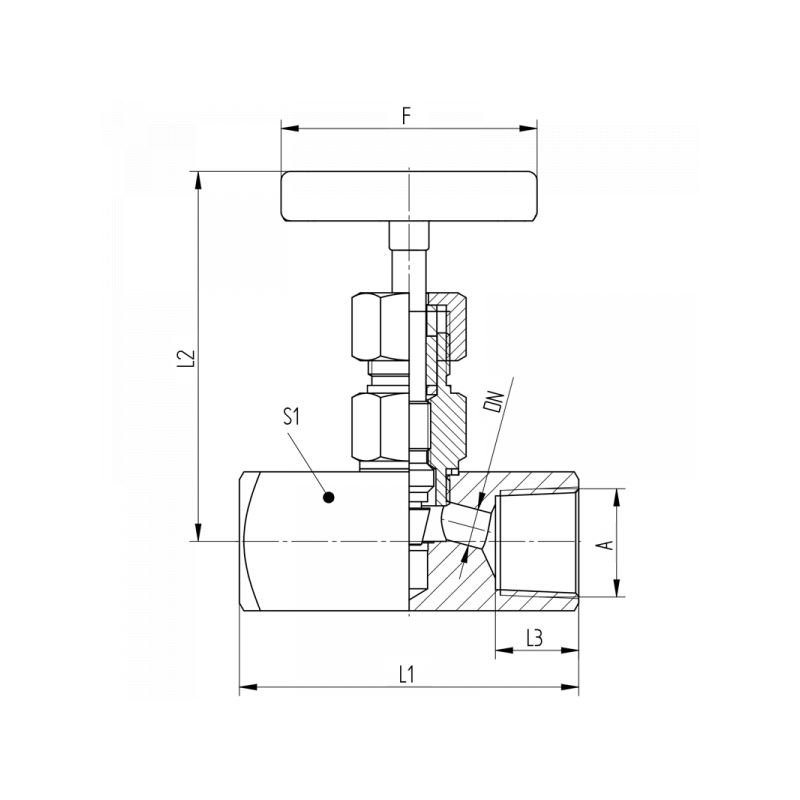

ADNPN / BarL1 / mmL2 / mmL3 / mmF / mmS1MaterialArt.Nr.PDF
1/8NPT4400-20°C / +250°C478511,650251.4571101102013
1/4NPT5400-20°C / +250°C558516,450251.4571101102023
3/8NPT6400-20°C / +250°C608517,450251.4571101102033
1/2NPT7400-20°C / +250°C658519,563301.4571101102043
3/4NPT9200-20°C / +250°C851052363351.4571101102063
1NPT12200-20°C / +250°C1101252790451.4571101102083
1 1/4NPT15160-20°C / +250°C12015528100601.4571101102103
1 1/2NPT22120-20°C / +250°C13516028100701.4571101102123
2NPT24120-20°C / +250°C13516028100701.4571101102163
1/4NPT5400-20°C / +350°C558516,45025Stahl101102022
3/8NPT6400-20°C / +350°C608517,45025Stahl101102032
1/2NPT7400-20°C / +350°C658519,56330Stahl101102042
3/4NPT9200-20°C / +350°C85105236335Stahl101102062
1NPT12200-20°C / +350°C110125279045Stahl101102082

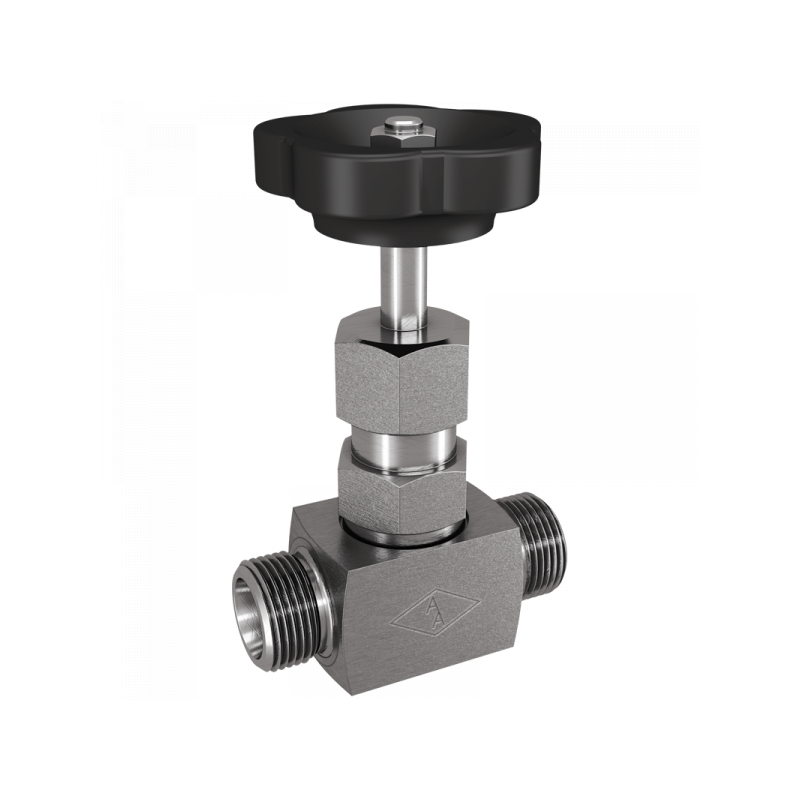

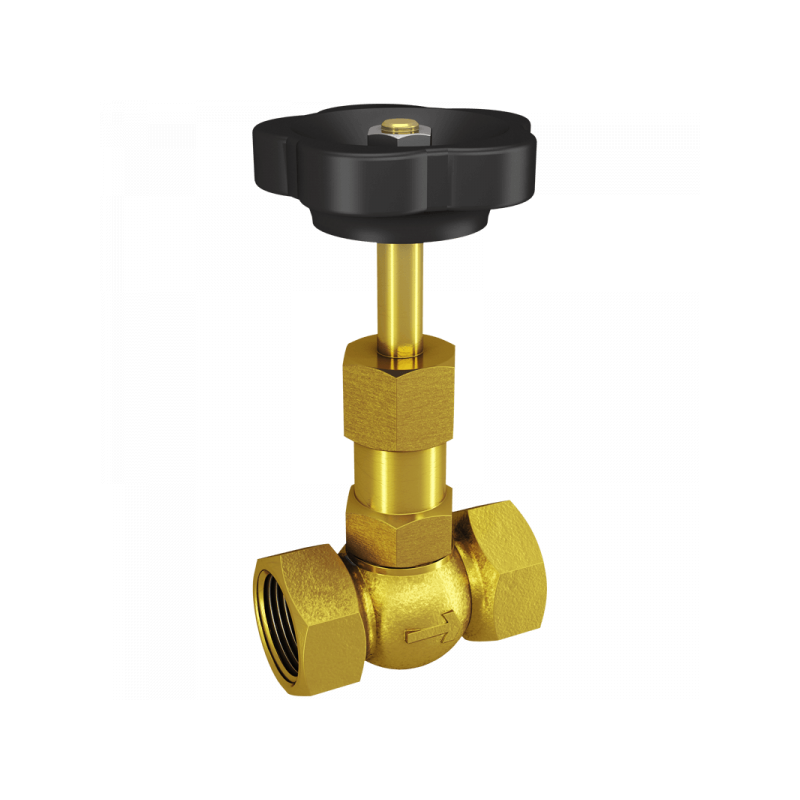

Related articles
