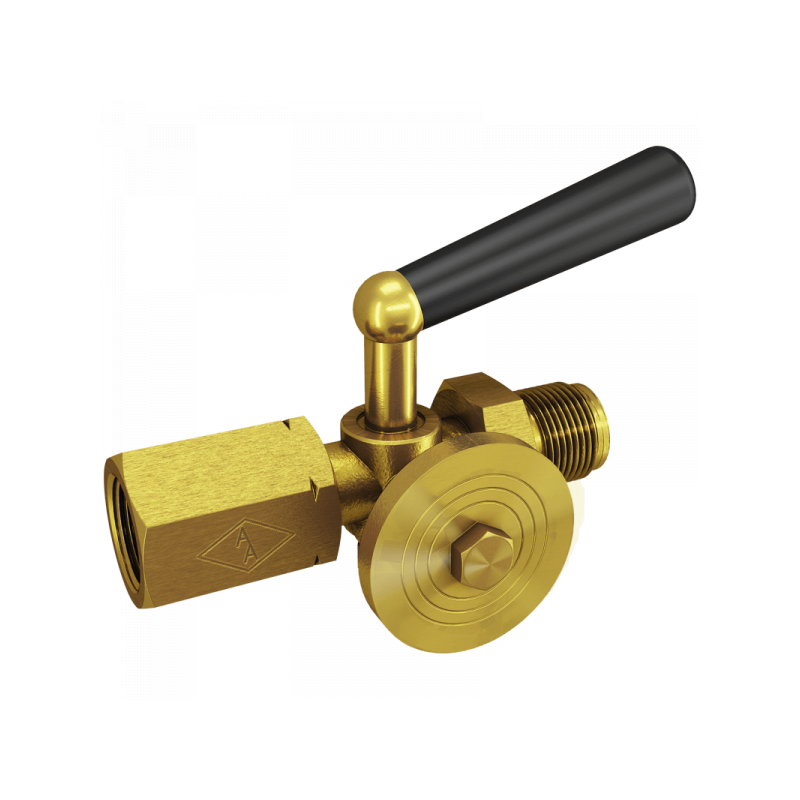

Fig. 34/A:

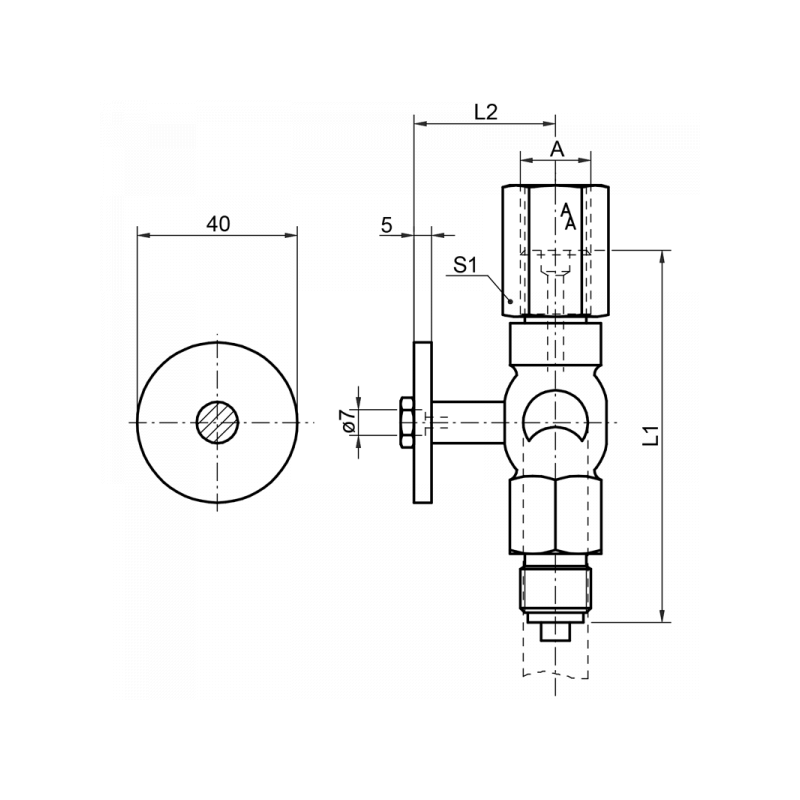

DIN A PN / Bar L1 / mm L2 / mm S1 Flansch / mm Material Art.Nr. PDF
DIN 16263 G1/2 16 -10°C / +50°C 80 43 27 40x5 1.4571 10034A043
DIN 16263 G1/2 25 -10°C / +50°C 80 36 27 40x5 Messing 10034A041S
